Blower Motor: Service and Repair

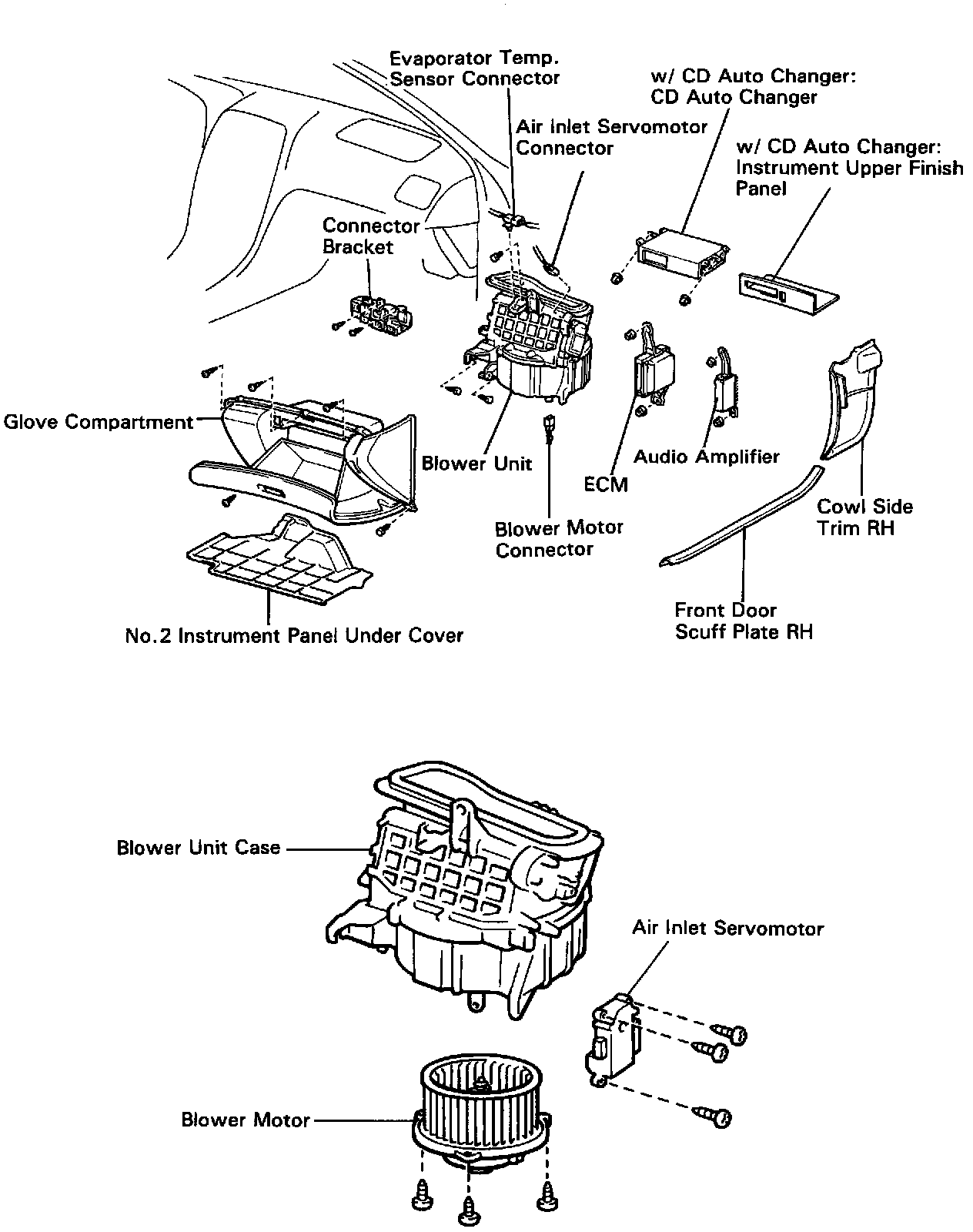

COMPONENTS

REMOVAL
1. REMOVE THESE PARTS:
a. Cowl side trim RH
b. Front door scuff plate RH
c. No.2 instrument panel under cover
d. Glove compartment
e. w/ CD Auto Changer:
Instrument upper finish panel
f. w/ CD Auto Changer:
CD auto changer
g. Audio amplifier
h. ECM





2. REMOVE CONNECTOR BRACKET SET SCREWS

3. REMOVE BLOWER UNIT
a. Disconnect the connectors from blower unit.
b. Disconnect the wire harness clamps.
c. Disconnect the evaporator temp. sensor connector clamp.
d. Remove the 2 screws, bolt and nut, then remove the blower unit.

DISASSEMBLY





1. REMOVE BLOWER MOTOR
Remove the 3 screws and blower motor.

REASSEMBLY
Reassembly is in the reverse order of disassembly.

INSTALLATION
Installation is in the reverse order of removal.
