Control Assembly: Service and Repair

COMPONENTS

REMOVAL
1. REMOVE THESE PARTS:
a. Instrument cluster finish control panel.
b. Instrument cluster fin is end panel.

2. REMOVE A/C CONTROL ASSEMBLY

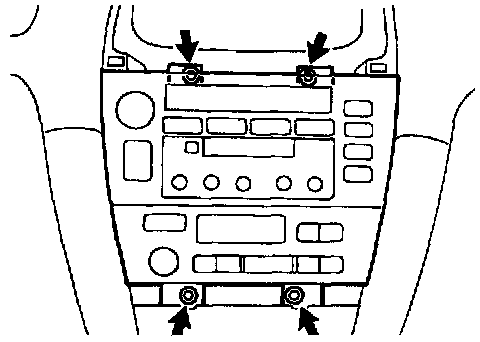

a. Remove the 4 bolts and pull out the A/C control assembly with radio, then disconnect the connectors.

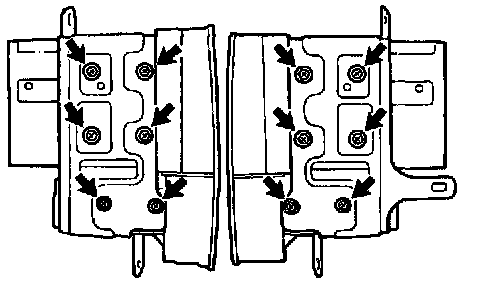

b. Remove the 8 bolts, 4 screws and bracket.
c. Remove the A/C control assembly from the radio.

DISASSEMBLY

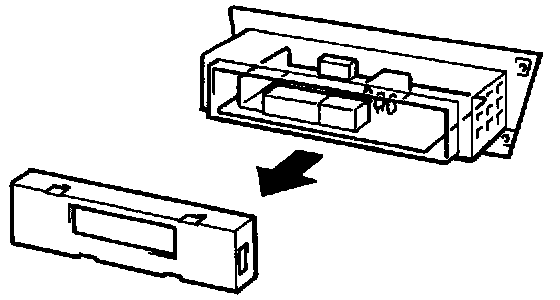

1. REMOVE A/C AMPLIFIER
a. Release the 4 claws and remove the rear cover.
b. Pull out the A/C amplifier backward.

REASSEMBLY HINT: Hold the supply parts A/C amplifier using the electrostatic prevention bag it comes packed in.

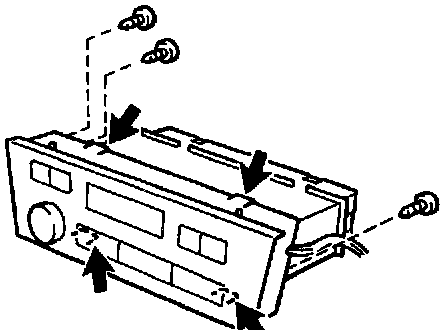

2. SEPARATE A/C CONTROL PANEL AND A/C AMPLIFIER CASE
a. Remove the 4 screws.
b. Release the 4 claws, then separate the A/C control panel and A/C amplifier case.

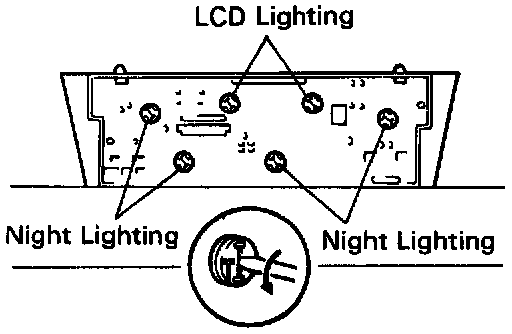

3. REMOVE BULB
Using a screwdriver, turn the bulb to left and pull out the bulb.

REASSEMBLY
Reassembly Is in the reverse order of disassembly.

INSTALLATION
Installation Is In the reverse order of removal.
