Heater Control Valve: Adjustments
ADJUSTMENT 1. SET VEHICLE IN THESE CONDITIONS: a.
Ignition switch
ON b.
Temperature control dial "MAX COOL"

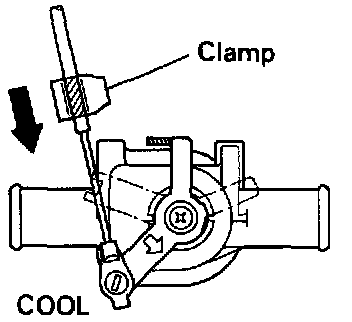

2. ADJUST CONTROL CABLE Set the water valve control lever on the "COOL position and install the control cable and lock the clamp.
HINT: Lock the clamp while lightly pushing the outer cable in the direction shown by arrow.
