Input Signal Check

INPUT SIGNAL CHECK

Output Code

1. a. For check No. 1 No. 2
Turn the ignition switch ON.
b. For check No.3 No.4
Jack up the vehicle.
Start the engine.

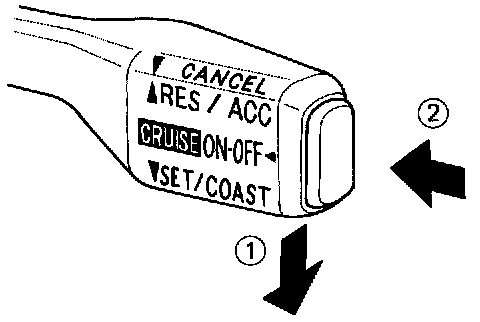

2. Turn the control switch to SET/COAST position and hold it down (1).
3. Push the main switch ON (2).
4. Check that the CRUISE MAIN indicator light blinks twice repeatedly.
5. Turn the SET/COAST switch OFF.

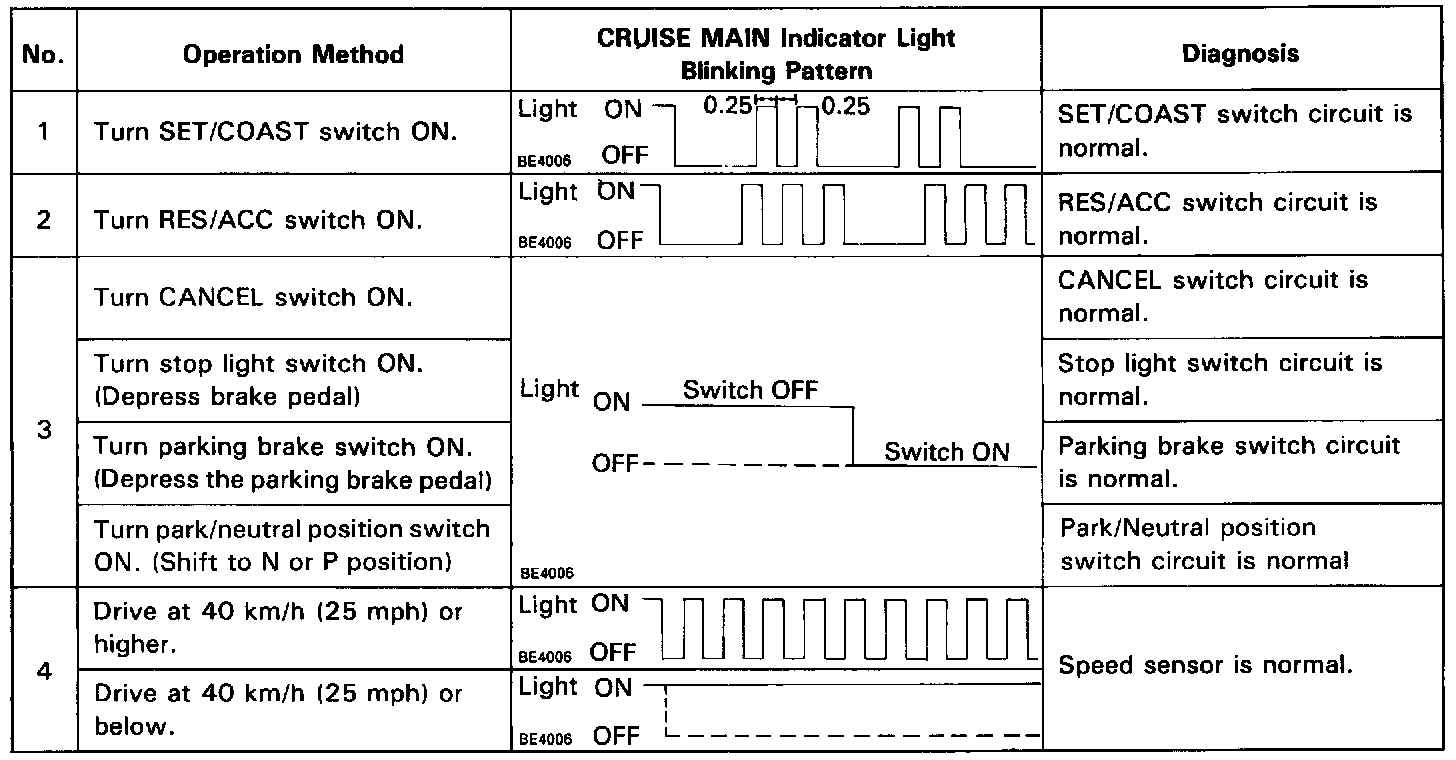

6. Operate each switch as listed in the table below.





7. Read the blinking pattern of the CRUISE MAIN indicator light.
8. After doing the check, turn the main switch off.

HINT: When 2 or more signals are input to the ECU, the lowest-numbered code is displayed first.
