Heated Element: Testing and Inspection

MIRROR DEFOGGER INSPECTION

INSPECT MIRROR DEFOGGER





w/o Memory:

a. Connect the positive (+) lead from the battery to terminal 8 and the negative (-) lead to terminal 7.
b. Check that the mirror becomes warm.

HINT: It will take a short time for the mirror to become warm.





w/ Memory:

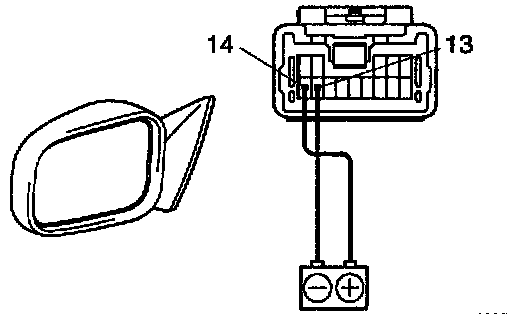

a. Connect the positive (+) lead from the battery to terminal 14 and the negative (-) lead to terminal 13.
b. Check that the mirror becomes warm.

HINT: It will take a short time for the mirror to become warm.

If mirror does not become warm, replace the mirror assembly.
