Control Assembly: Service and Repair
A/C CONTROL ASSEMBLY REMOVAL 1. REMOVE No. 2 INSTRUMENT PANEL REGISTER 2. REMOVE INSTRUMENT CLUSTER FINISH PANEL 3. REMOVE A/C CONTROL ASSEMBLY a.
Disconnect the connectors.
b.

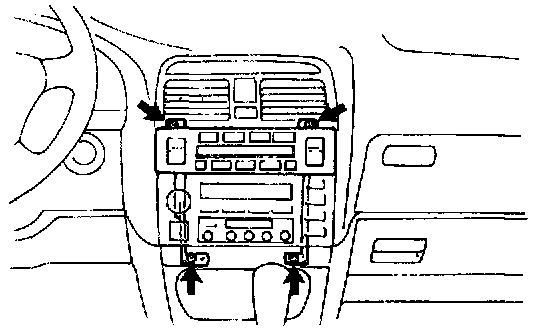

Remove the 4 bolts and A/C control assembly with the radio.
c.

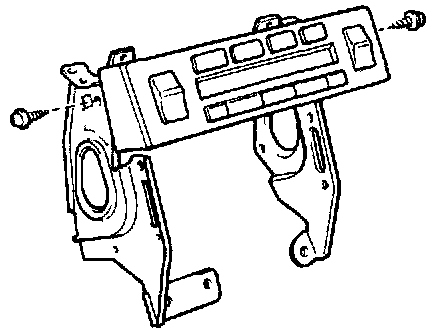

Remove the 2 screws and A/C control assembly from the radio.
A/C CONTROL ASSEMBLY INSTALLATION Installation is in the reverse order of removal.
