Discharge Air Temperature Sensor / Switch: Service and Repair
DUCT SENSOR REMOVAL 1. REMOVE INSTRUMENT PANEL 2. REMOVE SENSORS a.
Disconnect the connector.
b.

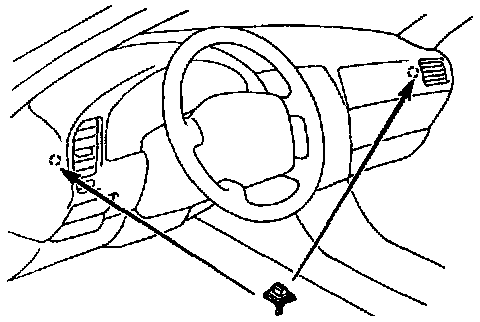

Remove driver sensor from the No. 3 heater to resistor duct.
c.
Remove passenger sensor from the No. 1 heater to resistor duct.
SENSORS INSTALLATION Installation is in the reverse order of removal.
