Solar Sensor: Service and Repair

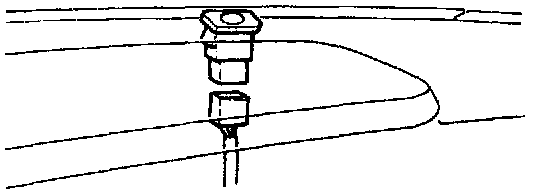

SOLAR SENSOR REMOVAL 1. REMOVE INSTRUMENT PANEL SAFETY PAD 2. REMOVE SENSOR a.
Disconnect the connector.
b.
Push out the
solar sensor from the instrument panel safety pad.

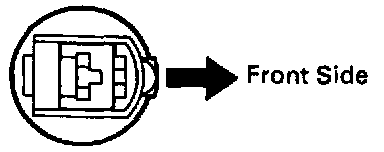

INSTALLATION HINT: Install the
solar sensor. as shown in the illustration.
