Transmission Position Sensor/Switch: Adjustments

Check that the engine can be started with the shift lever only in the N or P position, but not in other positions.
If it is not as staled above, carry out the following adjustment procedure.

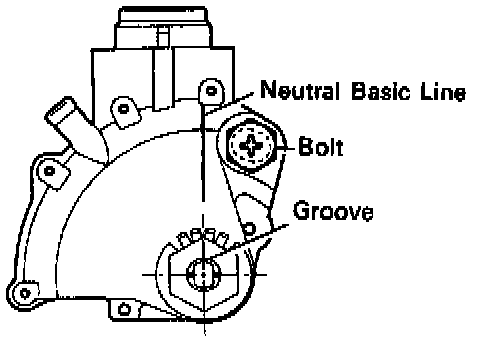

(a) Loosen the park/neutral position switch bolt and set the shift lever to the N position.

(b) Align the groove and neutral basic line.
(c) Hold in position and tighten the bolt.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
