Wiper Switch: Service and Repair

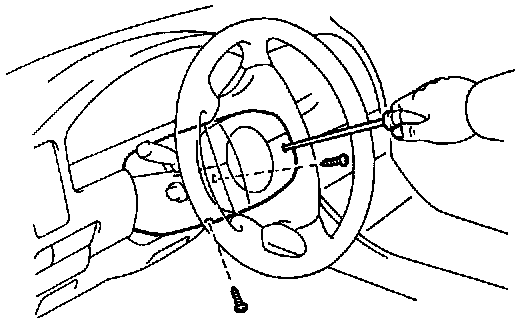

WIPER AND WASHER SWITCH REMOVAL Installation is in the reverse order of removal. 1. REMOVE COLUMN COVER a.
Remove the 3 screws.
b.
Remove the column cover.

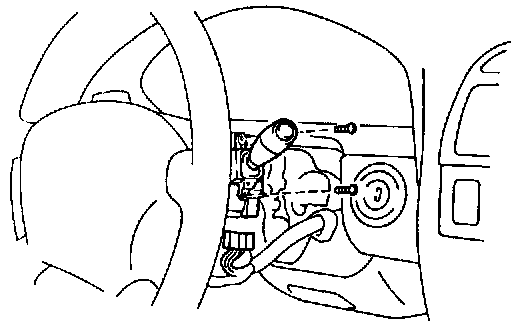

2. REMOVE WIPER AND WASHER SWITCH a.
Disconnect the wiper and washer switch connector.
b.
Remove the 2 screws.
c.
Remove the switch.
