Keyless Entry Transmitter: Testing and Inspection

INSPECT WIRELESS DOOR LOCK TRANSMITTER OPERATION

HINT: See "Transmitter (lithium) Battery Replacement ".

a. Using a screwdriver, remove the 2 screws and cover.
b. Remove the battery (lithium battery).





c. Install a new or normal battery (lithium battery).

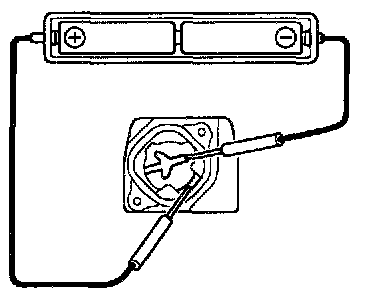

HINT: When a new or normal battery can not be obtained, connect 2 new 1.5 V batteries in series, connect the battery (+) to the battery receptacle side terminal and battery (-) to the bottom terminal, then apply 3 V voltage to the transmitter.

d. In the location where is approx. 1 M away from driver's outside handle in the right direction, face the key plate of the transmitter to the vehicle, and check the transmitter operation when pressing transmission switch.

Standard:
- Remote control of vehicle door lock can be operated.
- LED lights up more than once.

HINT:
- The minimum operation distance differs according to operator, the way of holding the transmitter, and location.
- As weak wave is used, operation distance might be shortened when noise is detected in strong wave or used frequency.

e. Install the battery (lithium battery).
f. Install a cover so that O-ring is not distorted or slipped off.
g. Using a screwdriver, tighten the 2 screws.
