Disassembly and Reassembly

DISASSEMBLY

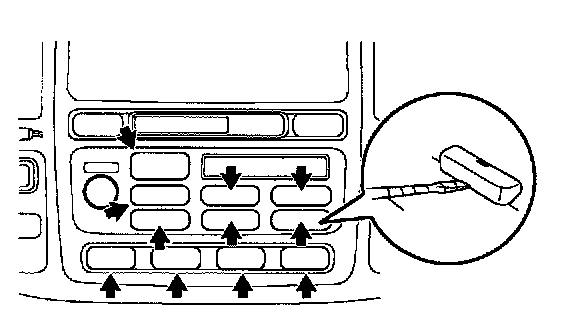

1. REMOVE KNOB
a. Pull out the dial knobs.
b. Using a screwdriver, pull out the switch knobs.

HINT: Tape the screwdriver tip before use.

2. REMOVE A/C AMPLIFIER

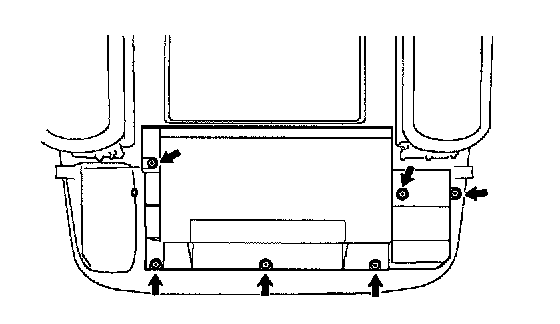

a. Remove the 6 screws and cover.

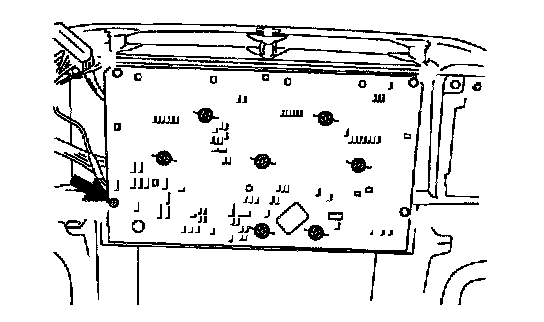

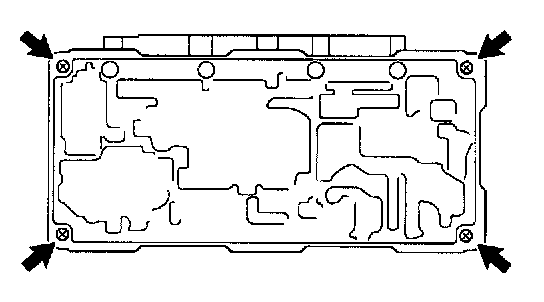

b. Remove the 4 set screws.

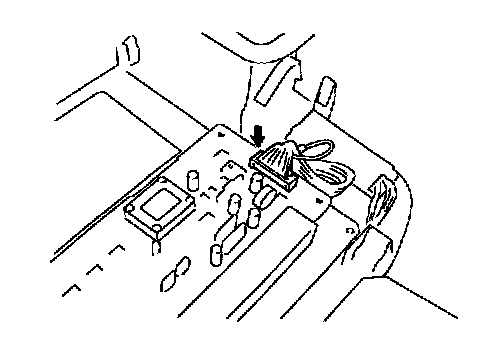

c. Disconnect the connector and remove the A/C amplifier.

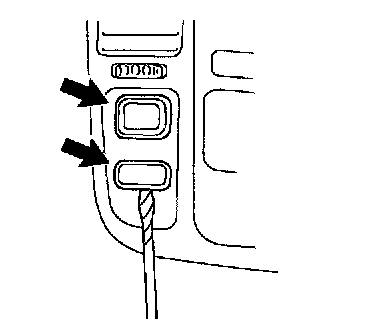

3. REMOVE DIFF LOCK AND HAZARD SWITCH




a. Using a screwdriver, pull out the knob.

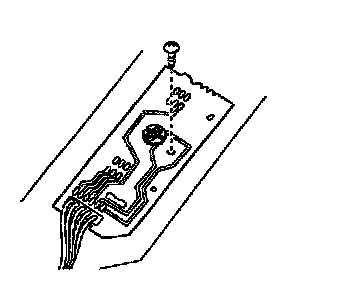

b. Remove the screw and switch.

4. REMOVE HEATER CONTROL

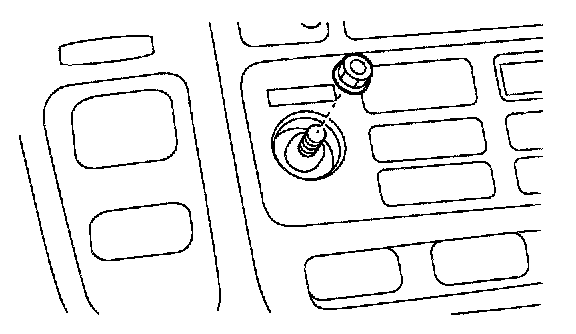

a. Remove the nut from the control switch.




b. Remove the screw and heater control then disconnect the connectors.

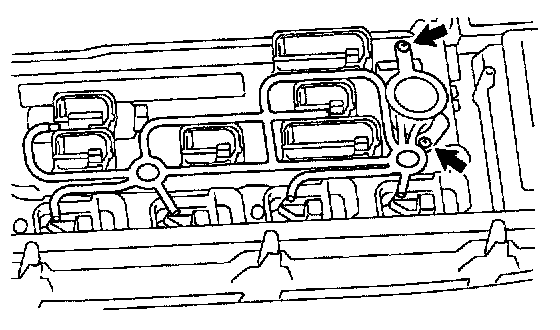

5. REMOVE CONTROL SWITCH
Disconnect the connectors and remove the switches.

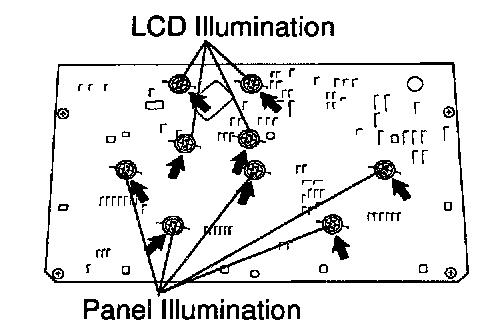

6. REMOVE BULBS

7. REMOVE HEATER CONTROL LENS
Remove the 2 screws and heater control lens.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
