Rear Door: Adjustments

1. ADJUST DOOR FORWARD/REARWARD AND VERTICAL DIRECTIONS
a. Remove the front door inside scuff plate.
b. Remove the rear door inside scuff plate.

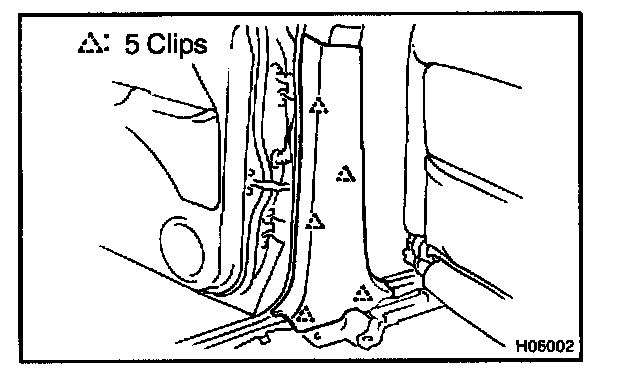

c. Remove the lower center pillar garnish.




d. Adjust the door by loosening the body side hinge bolts.

Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

e. Install the lower center pillar garnish.
f. Install the rear door inside scuff plate.
g. Install the front door inside scuff plate.




2. ADJUST DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS
Adjust the door by loosening the door side hinge bolts.

Torque: 27 N.m (275 kgf.cm, 20 ft.lbf)




3. ADJUST DOOR LOCK STRIKER
a. Check that the door fit and door lock linkages are adjusted correctly.

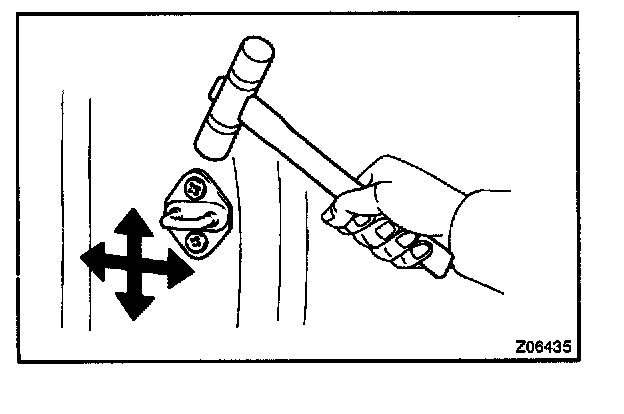

b. Adjust the striker position by slightly loosening the striker mounting screws, and hitting the striker with a hammer.
c. Tighten the striker mounting screws again.

Torque: 23 N.m (235 kgf.cm, 17 ft.lbf)
