Power Door Lock Switch: Testing and Inspection

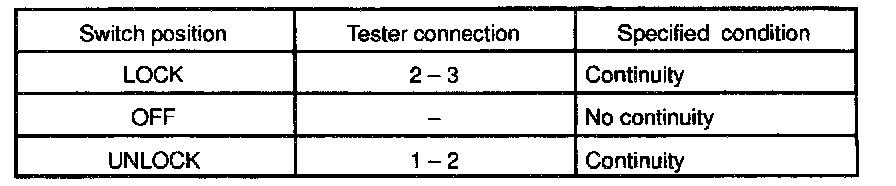

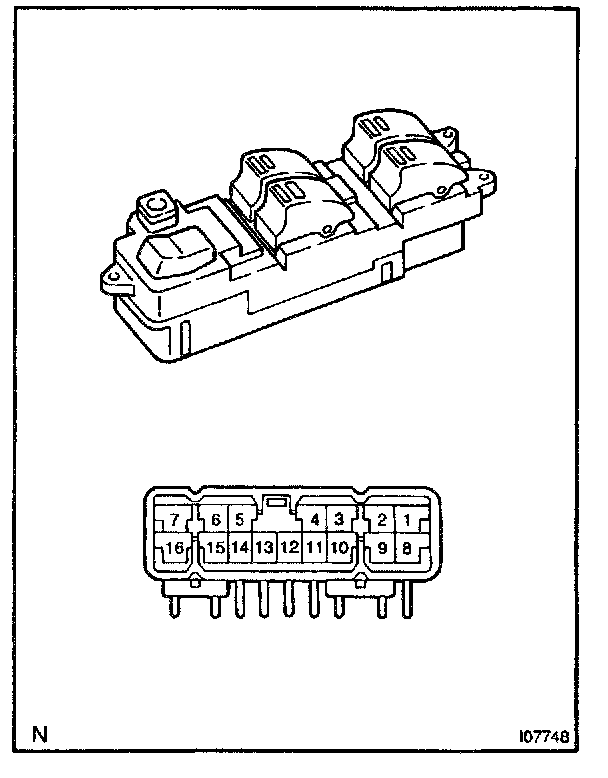

Master switch: INSPECT DRIVER'S DOOR LOCK CONTROL SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

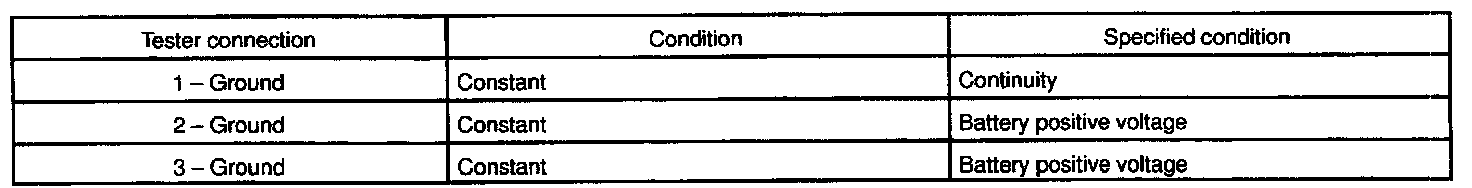

Master switch: INSPECT DRIVER'S DOOR LOCK CONTROL SWITCH CIRCUIT

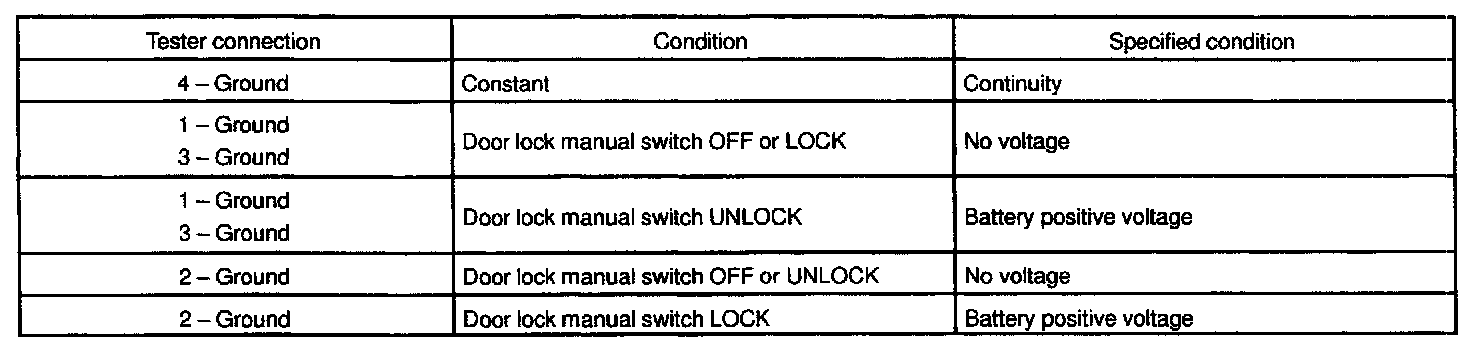

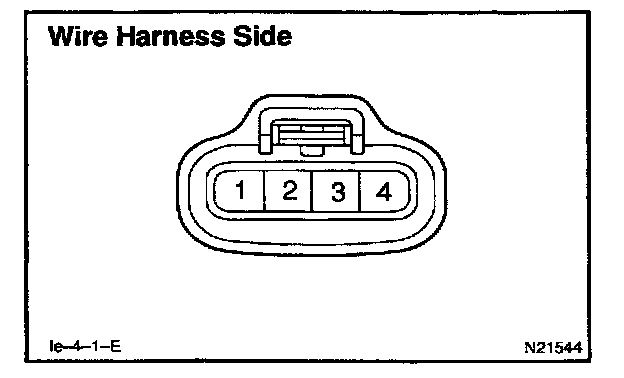

Disconnect the connector from the switch and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to other parts.

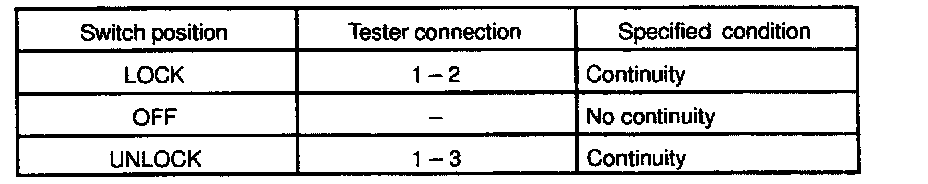

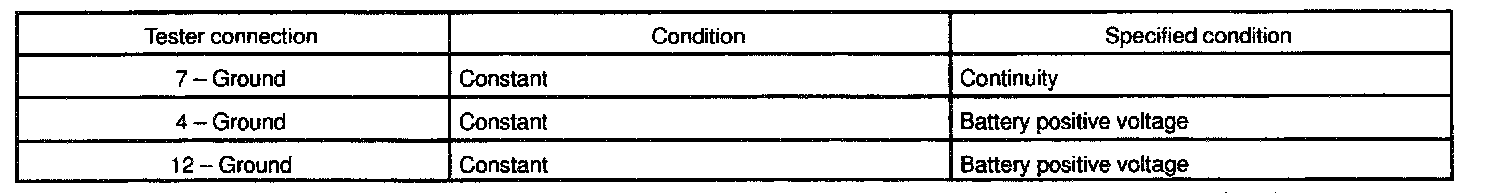

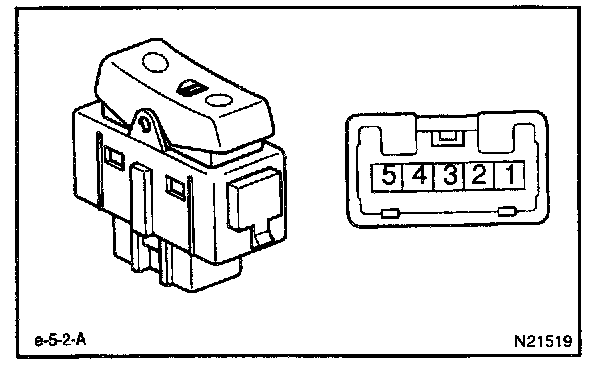

INSPECT PASSENGER'S DOOR LOCK CONTROL SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

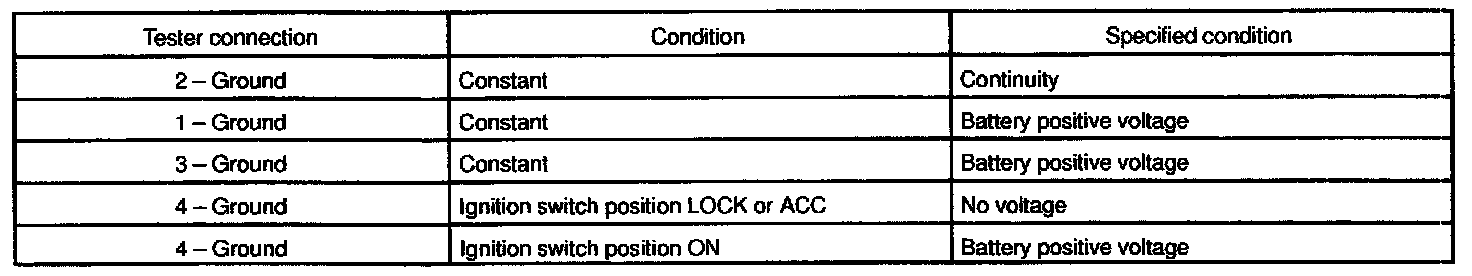

INSPECT PASSENGER'S DOOR LOCK CONTROL SWITCH CIRCUIT

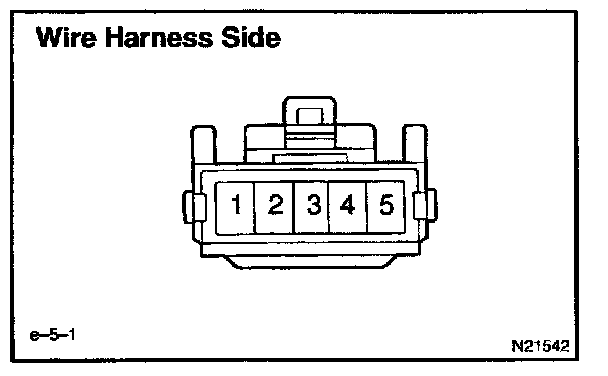

Disconnect the connector from the switch and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to other parts.

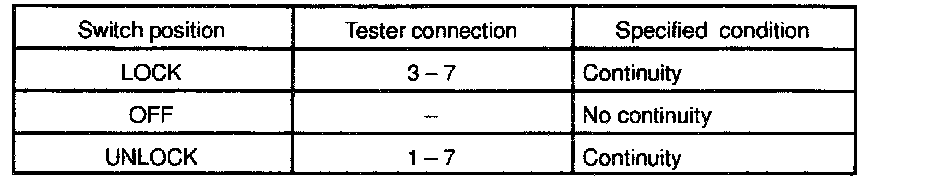

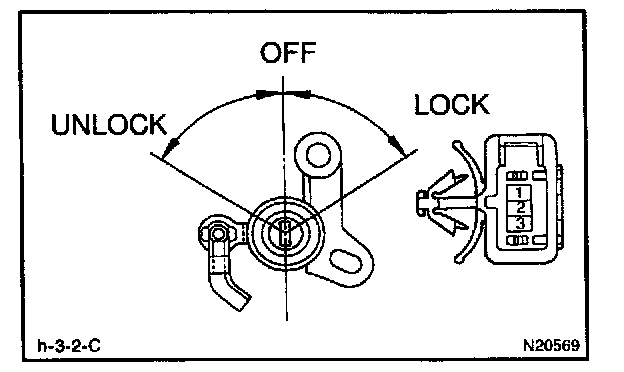

INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
If continuity is not as specified, replace the switch.







INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CIRCUIT
Disconnect the connector from the switch and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to other parts.

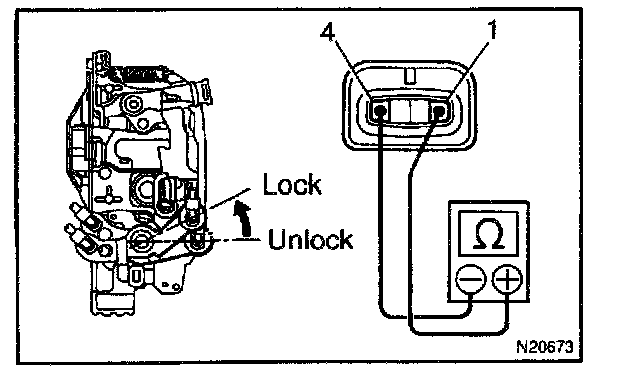

INSPECT DOOR UNLOCK DETECTION SWITCH CONTINUITY
If continuity is not as specified, replace the switch.







INSPECT DOOR LOCK ASSEMBLY CIRCUIT
Disconnect the connector from the switch and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to other parts.
