TRAC Off Indicator, TRAC Cut Switch Circuit
CIRCUIT DESCRIPTIONThis is the TRAC control main switch. When the TRAC cut switch is pushed on, TRAC control goes off and the TRAC
OFF indicator lights up. This indicator blinks for warnings when the trouble occurs and for displaying DTC.

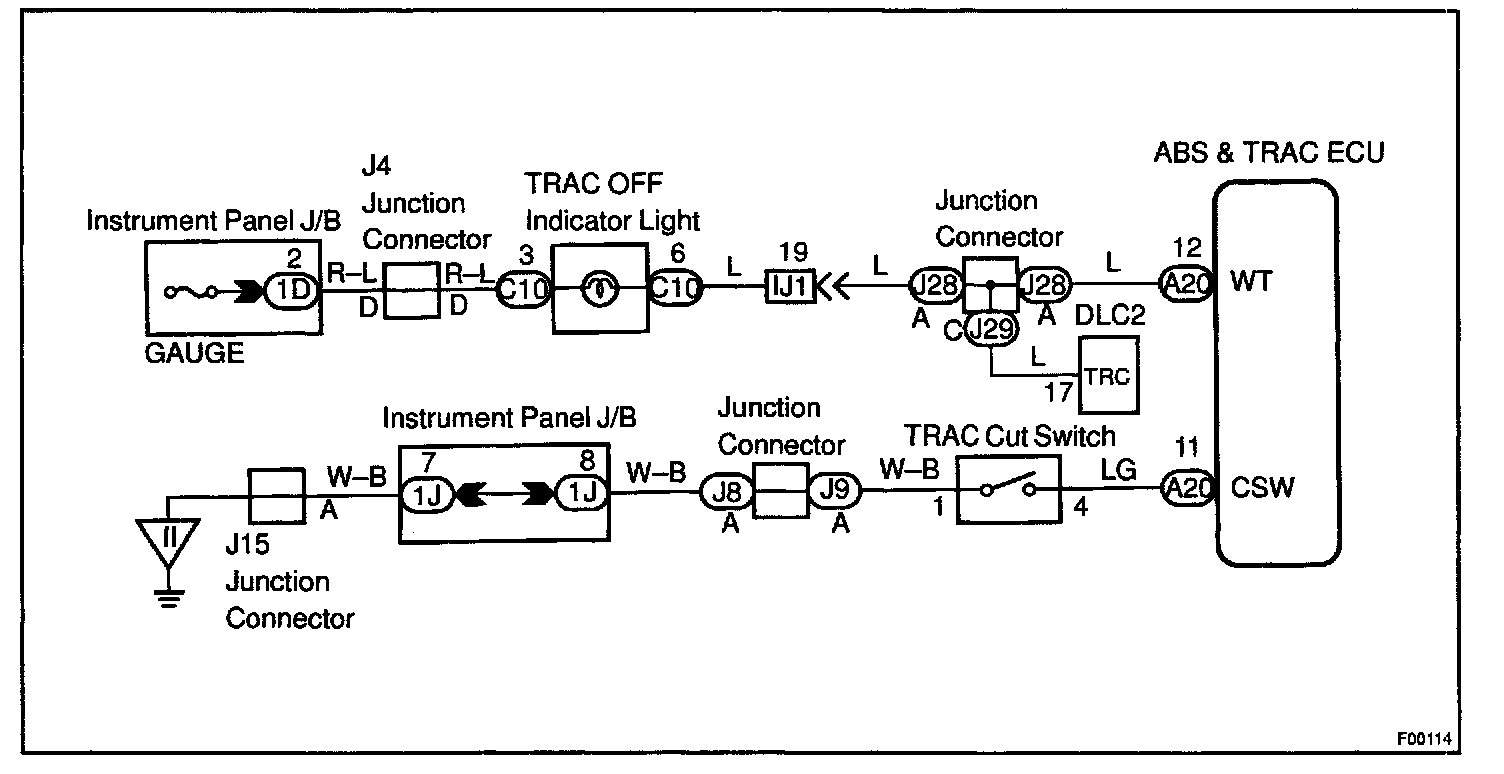

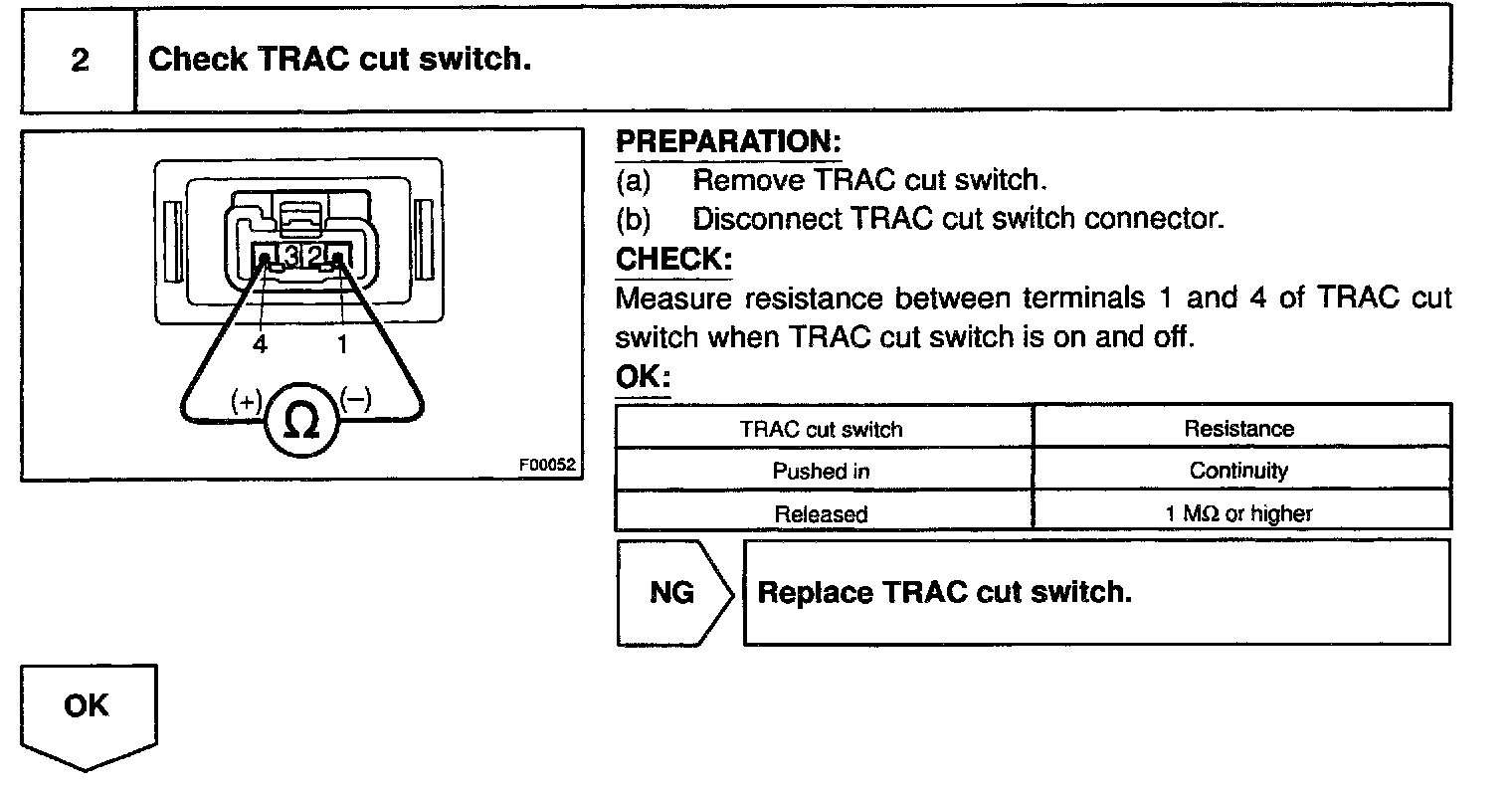

WIRING DIAGRAMINSPECTION PROCEDURE
