Speed Sensor, Front






REMOVAL





1. DISCONNECT SPEED SENSOR CONNECTOR
a. Remove the fender liner.
b. Disconnect the speed sensor connector.





2. REMOVE SPEED SENSOR
a. Remove the bolt, flexible hose and speed sensor harness clamp from the shock absorber.
Torque: 29 Nm (300 kgf-cm, 21 ft. lbs.)

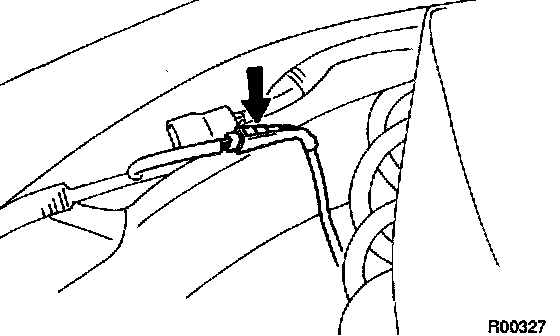

b. Remove the resin clip and clamp bolt holding the sensor harness to the body.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)

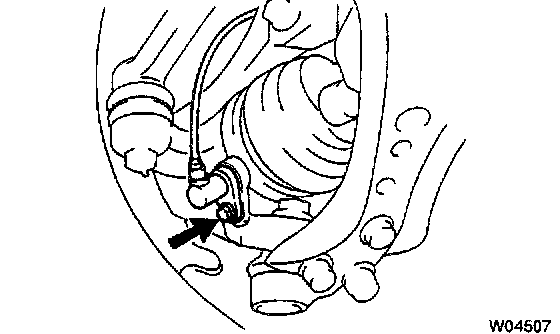

c. Remove the bolt and speed sensor from the steering knuckle.
Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)

INSTALLATION
Installation is in the reverse order of removal.

HINT: After installation, check speed sensor signal.
