Cabin Temperature Sensor / Switch: Service and Repair
REMOVALREMOVE ROOM TEMPERATURE. SENSOR
a.
Remove the No.1 lower panel set screws.
b.

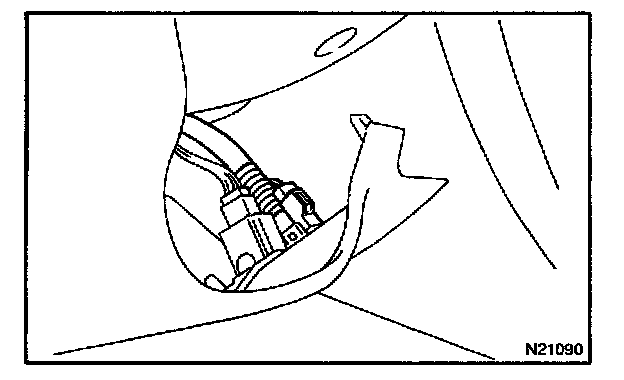

Disconnect the aspirator hose.
c.
Disconnect the connector.
d.
Release the 2 claws and pull out the sensor from No.1 lower panel.
INSTALLATIONInstallation is in the reverse order of removal.
