Disassembly and Reassembly

DISASSEMBLY




1. REMOVE FAN
Remove the clip and fan.

NOTE: When removing the clip and fan, do not apply too much force to the motor shaft. And do not scratch the motor shaft.

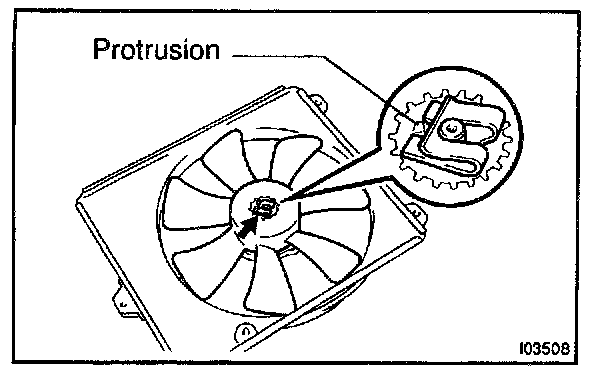

HINT: At the time of installation, please refer to the following item. Install a new clip from the side opposite the protrusion on the fan.

2. REMOVE FAN MOTOR
a. Disconnect the lead wire from the fan shroud.
b. Remove the 3 screws and fan motor.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
