Removal and Installation
COMPONENTSREMOVAL 1.
REMOVE THESE PARTS:
a.
End cluster finish panel
b.
Center cluster finish panel
2.
REMOVE A/C CONTROL ASSEMBLY
a.

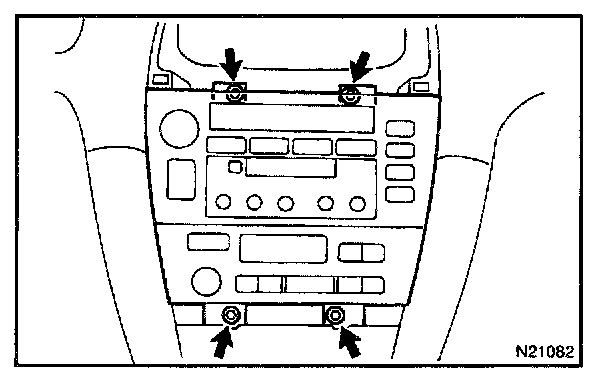

Remove the 4 bolts and pull out the A/C control assembly with radio, then disconnect the connectors.
b.

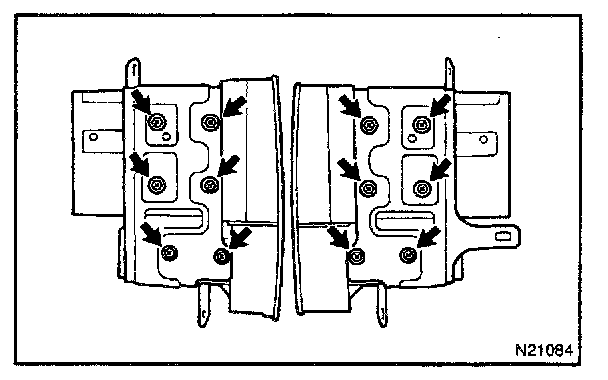

Remove the 8 bolts, 4 screws and bracket.
c.
Remove the A/C control assembly from the radio.
INSTALLATIONInstallation is in the reverse order of removal.
