Transmission Temperature Sensor/Switch: Service and Repair

ON-VEHICLE REPAIR
1. REMOVE OIL PAN AND GASKET. Refer to Valve Body; Service and Repair.
2. DISCONNECT 5 SHIFT SOLENOID VALVE CONNECTORS
3. DISCONNECT ATF TEMPERATURE SENSOR FROM VALVE BODY

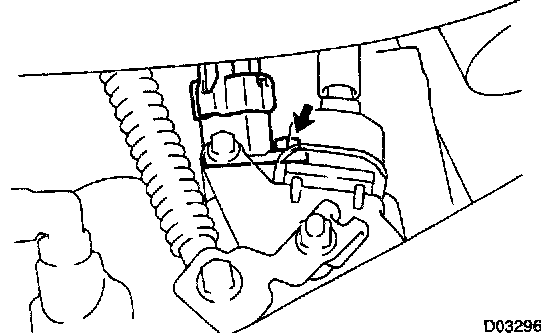

4. REMOVE ATF TEMPERATURE SENSOR
Remove the bolt and solenoid wire.
5. INSTALL ATF TEMPERATURE SENSOR
Install the solenoid wire with the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
6. CONNECT ATF TEMPERATURE SENSOR TO VALVE BODY
7. CONNECT 5 SHIFT SOLENOID VALVE CONNECTORS
8. INSTALL OIL PAN AND GASKET
