Global Positioning System: Service and Repair

DISC INFORMATION

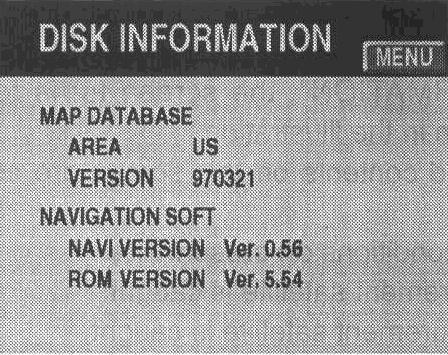

On the diagnosis menu screen when pressing "DISK INFORMATION", the screen turns to the screen shown in the illustration.

This screen displays the information MAP DATABASE and NAVIGATION SOFT.

REPLACE HARD DISK




A. Remove the 3 bolts and the navigation ECU.
B. GPS receipt not available.
C. Remove the 2 screws and the cover.




D. Remove hard disk.

NOTE:
- Do not apply any impact to the hard disk.
- There is a fear to cause damage to the hard disk if applying impact.
