Ignition Coil: Service and Repair

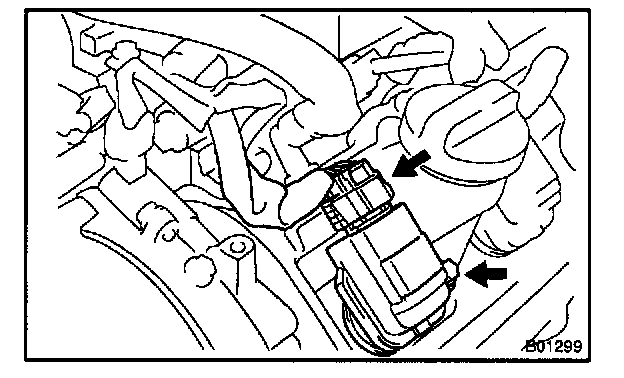

COMPONENTSREMOVAL 1. REMOVE V-BANK COVER 2. REMOVE BATTERY CLAMP COVER 3. REMOVE AIR CLEANER INLET 4. REMOVE INTAKE AIR CONNECTOR 5. DISCONNECT IGNITION COIL CONNECTORS 6. REMOVE IGNITION COILS FROM SPARK PLUGS Remove the 8 bolt and 8
ignition coils.
Torque:
7.5 Nm (80 kg.cm, 66 in.lb)INSTALLATION Installation is in the reverse order of removal.
