Telescopic Motor Circuit
CIRCUIT DESCRIPTIONThe ECU provides both +B and ground for the telescopic motor.
Reversing polarity of the applied voltage reverses the motor.

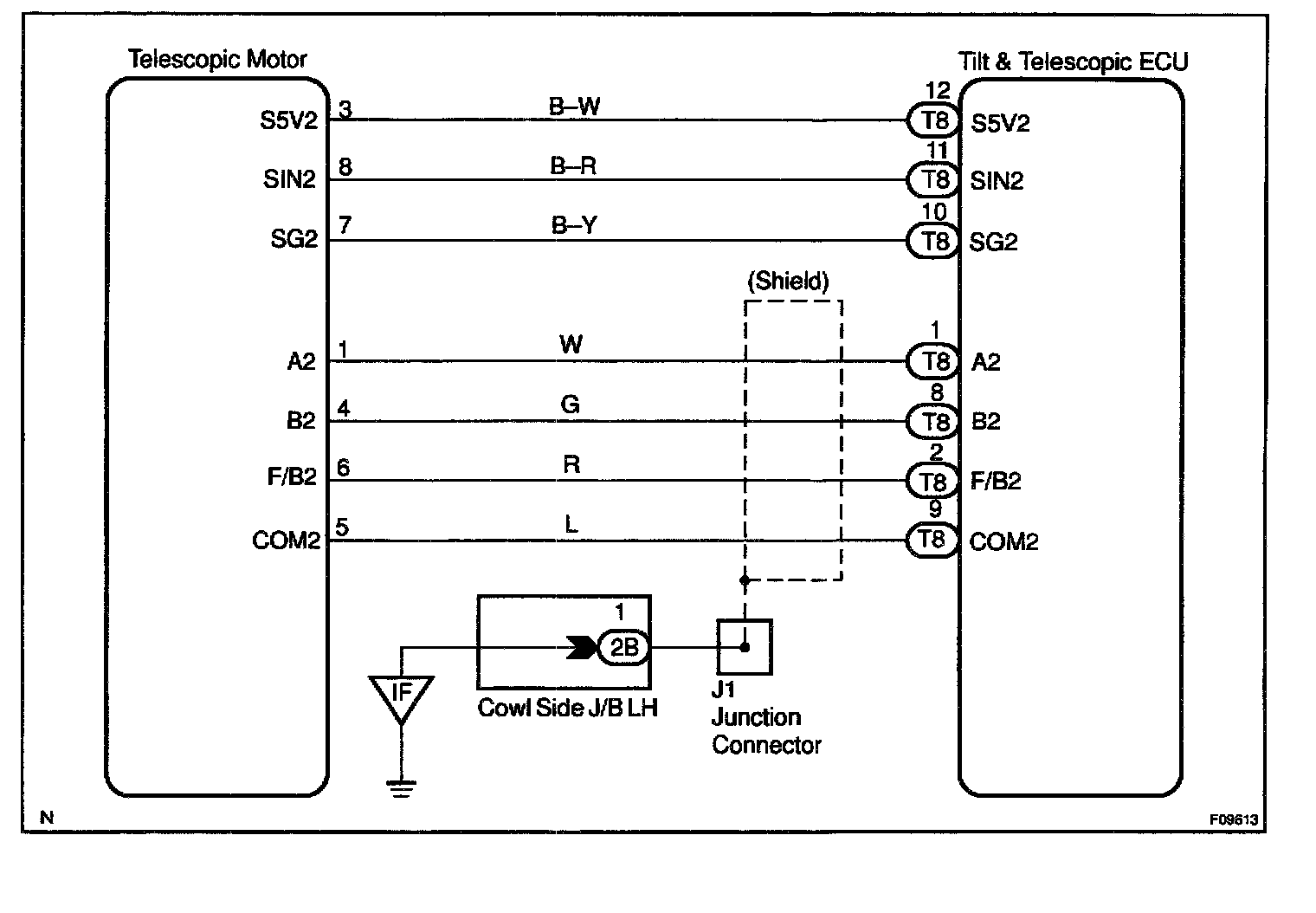

WIRING DIAGRAMStep 1:

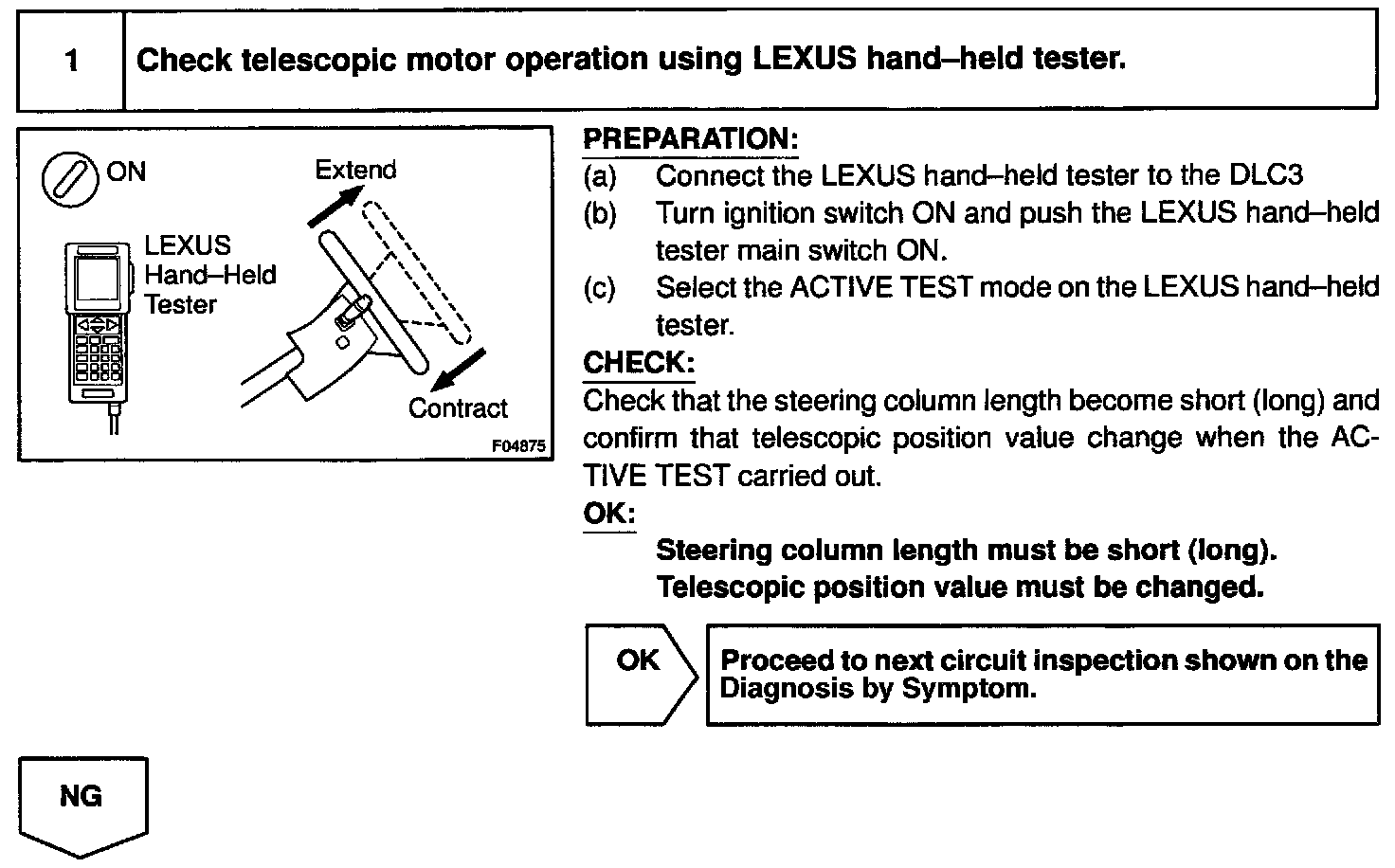

Step 2:

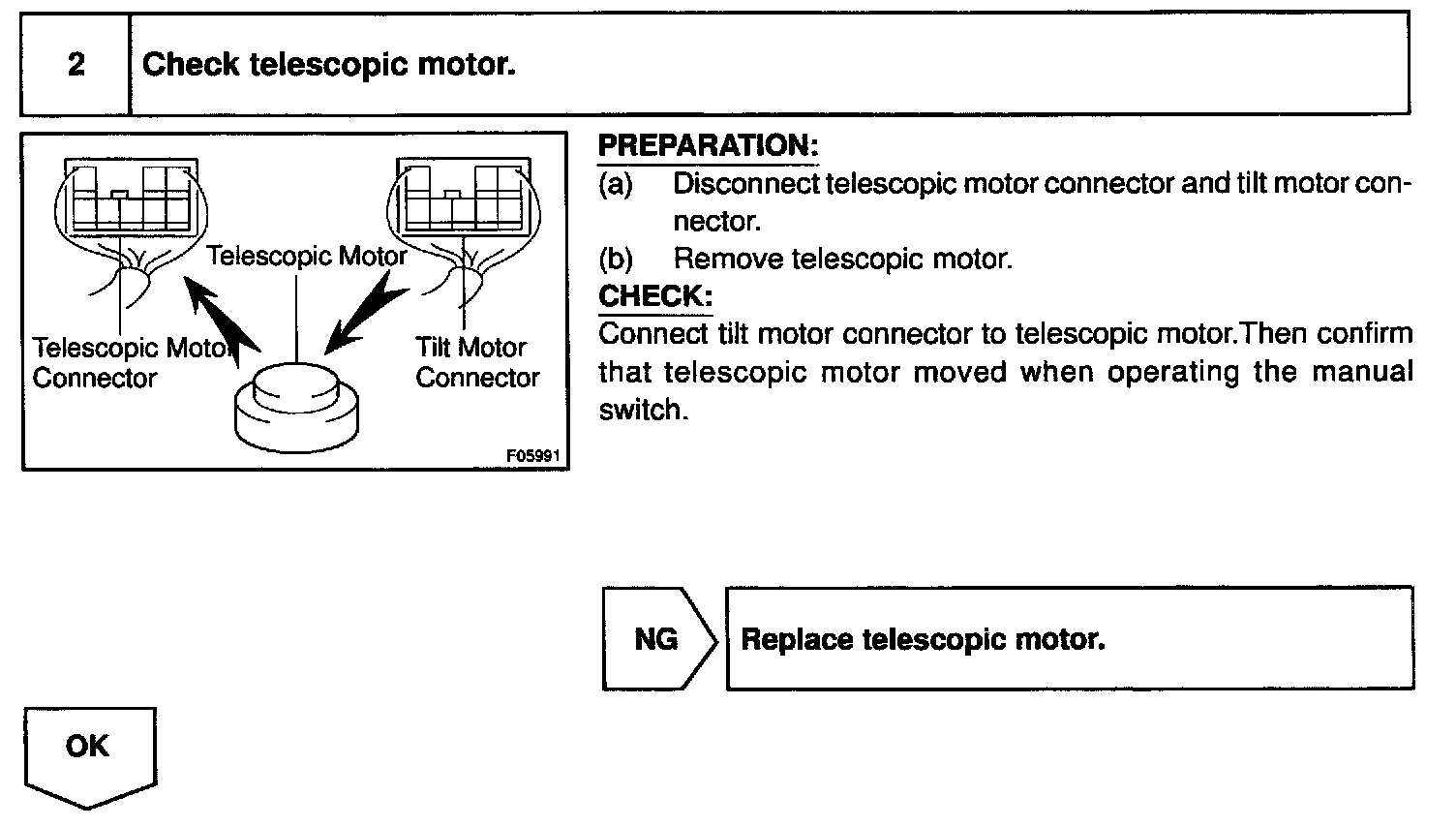

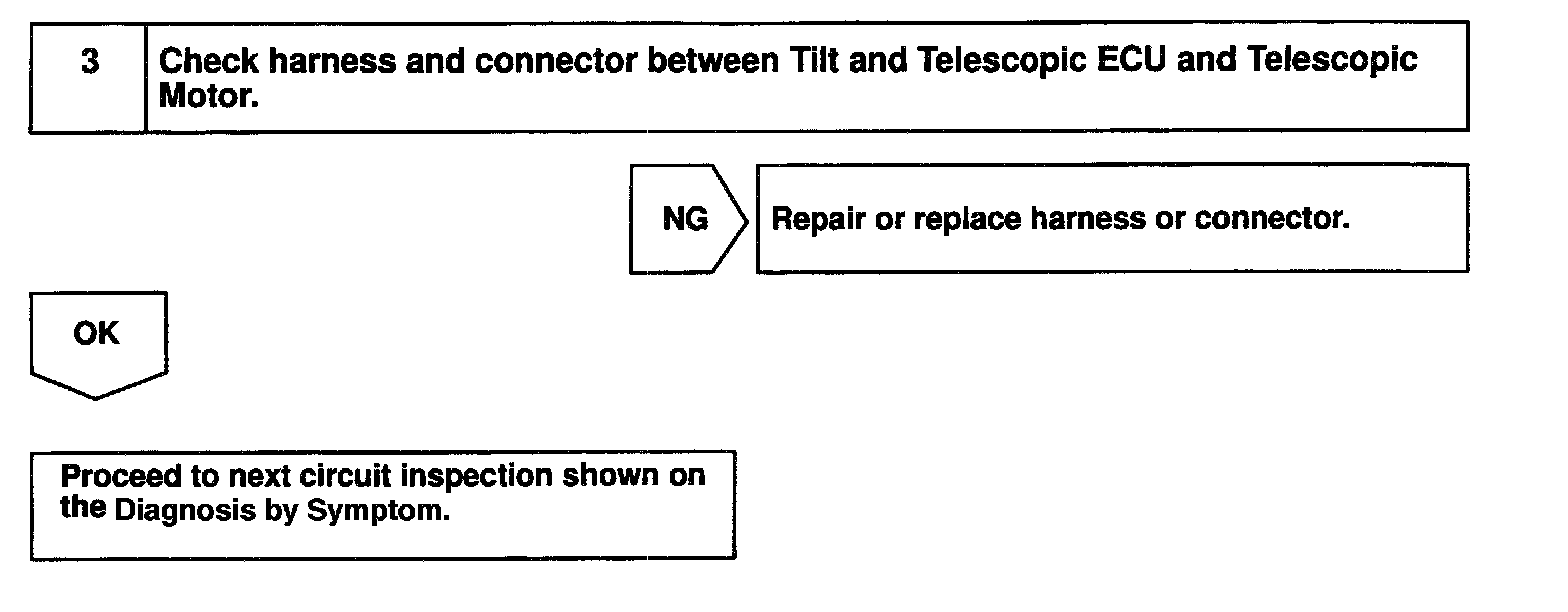

Step 3:
INSPECTION PROCEDUREIn case of using LEXUS hand-held tester, start inspection from step 1.
In case of not using LEXUS hand-held tester, start inspection from step 2.
