Room Temperature Sensor (For Front A/C)




1. REMOVE ROOM TEMPERATURE SENSOR
a. Remove the lower No.1 panel set screw.
b. Release the lower No.1 panel set claws.
c. Disconnect the connector and aspirator hose.

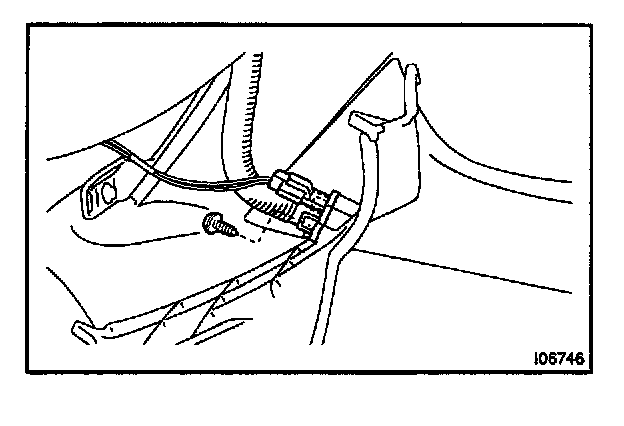

d. Remove the screw and room temperature sensor.

2. INSPECT ROOM TEMPERATURE SENSOR CIRCUIT

3. INSTALL ROOM TEMPERATURE SENSOR
a. Install the room temperature sensor to the lower No.1 panel with the screw.
b. Connect the aspirator hose and connector.
c. Install the lower No.1 panel with the screw.
