Condenser Fan Motor Relay: Testing and Inspection
1.

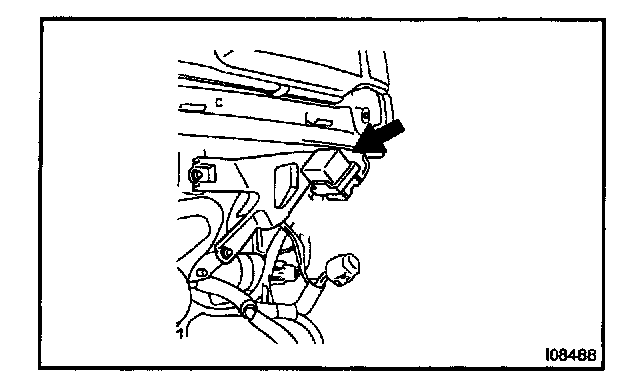

REMOVE CONDENSER FAN RELAY
a.
Remove the front bumper cover.
b.
Disconnect the connector
c.
Release the claw and remove the condenser fan relay.
2.

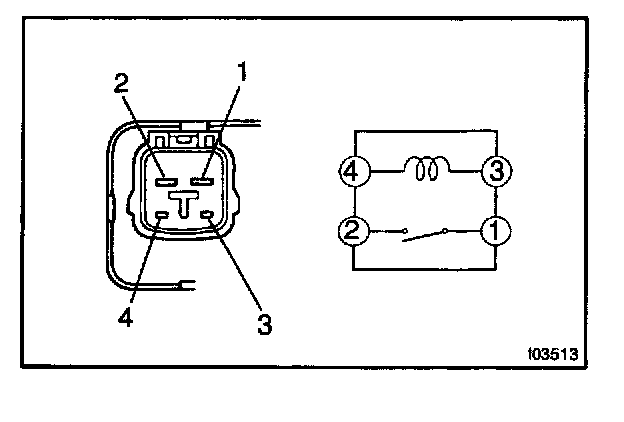

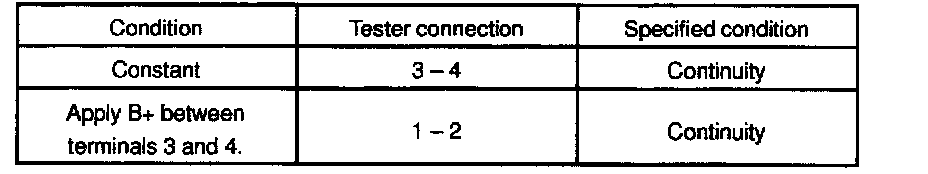

INSPECT CONDENSER FAN RELAY CONTINUITY
If continuity is not as specified, replace the condenser fan relay.
3.
INSTALL CONDENSER FAN RELAY
