Disassembly and Reassembly

DISASSEMBLY

1. REMOVE FAN

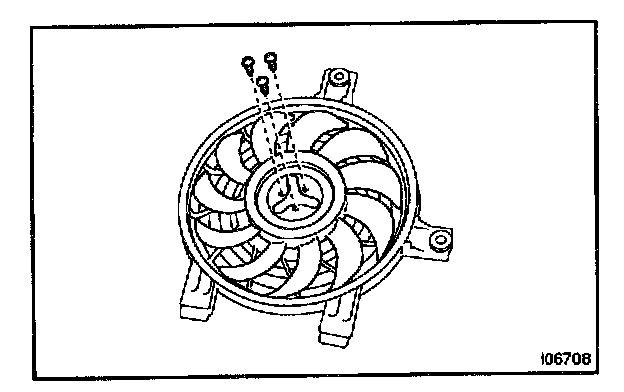

Remove the 3 screws and fan.

2. REMOVE FAN MOTOR

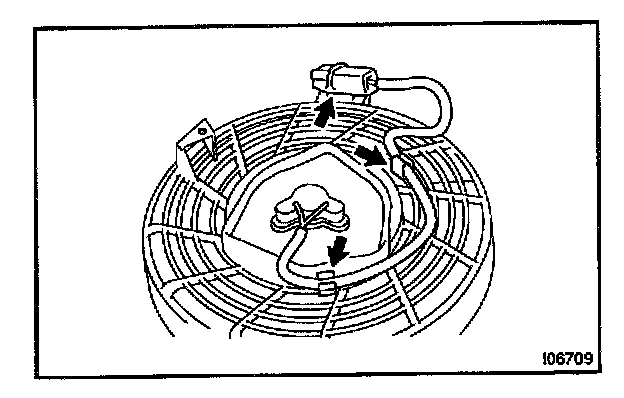

a. Disconnect the wire harness clamps.

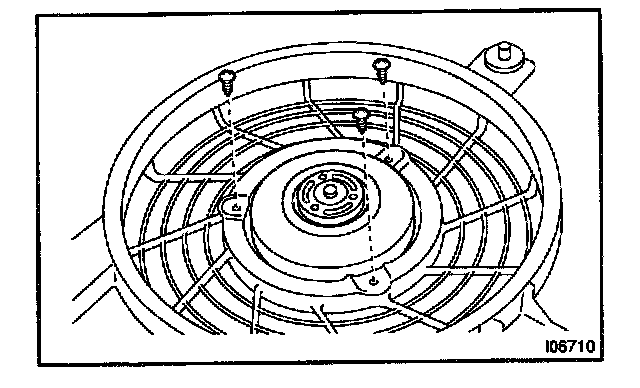

b. Remove the 3 screws and fan motor.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
