Height Control Indicator Lamp Circuit
CIRCUIT DESCRIPTIONThis indicator light indicates the present vehicle height. The indicator light of the target vehicle height selected by the height select switch is flashed while the height control is operated and waited.

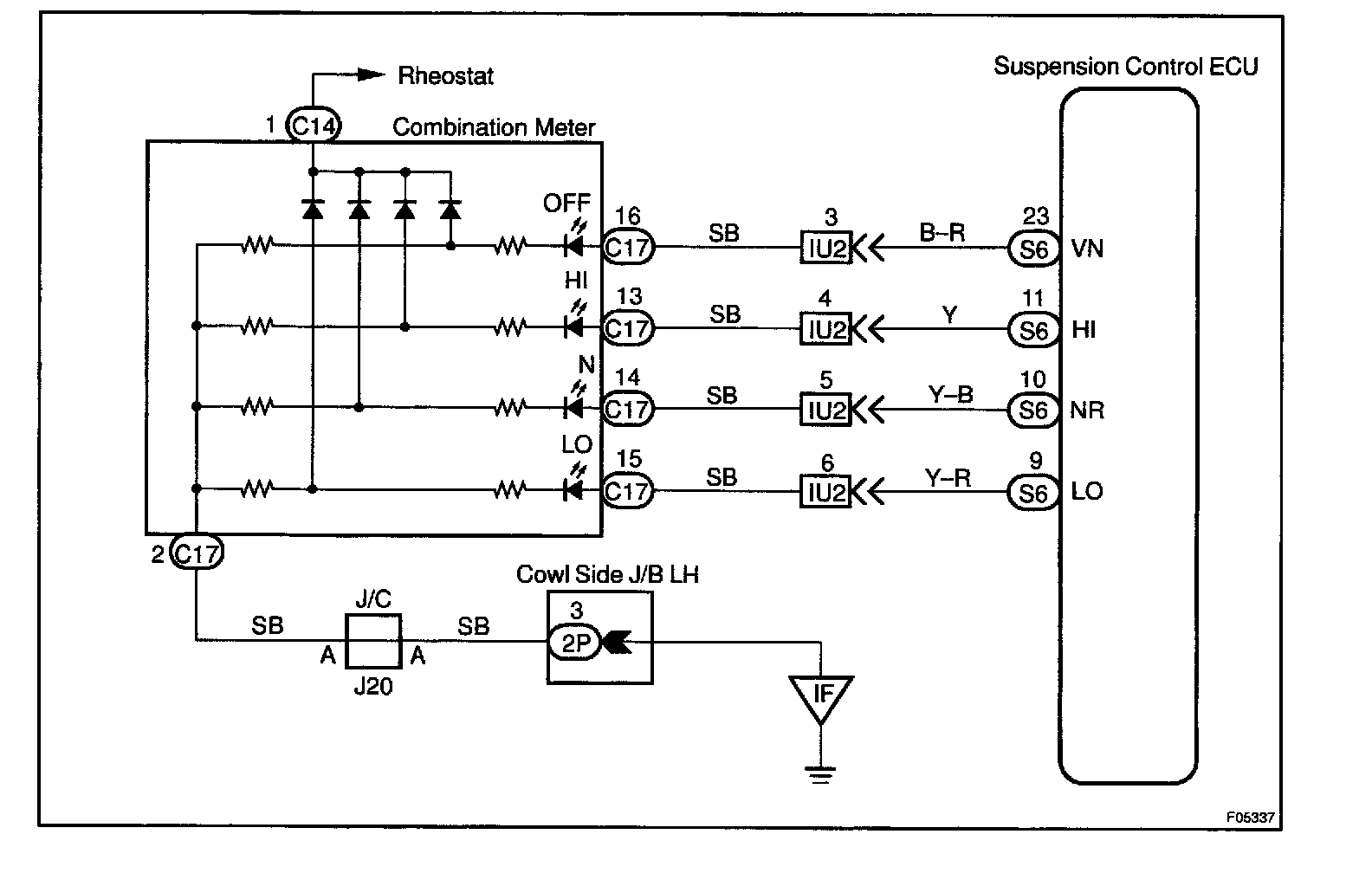

WIRING DIAGRAMStep 1:
Step 2:
INSPECTION PROCEDURE
