Height Control Off Indicator Lamp Circuit

CIRCUIT DESCRIPTION
If the ECU detects trouble, the height control OFF indicator light flushes while prohibiting height control at the same time. At this time, the ECU records a DTC in memory.
Connect the terminals Tc and E1 of the DLC1 to make the height control OFF indicator light flushed and DTC output.

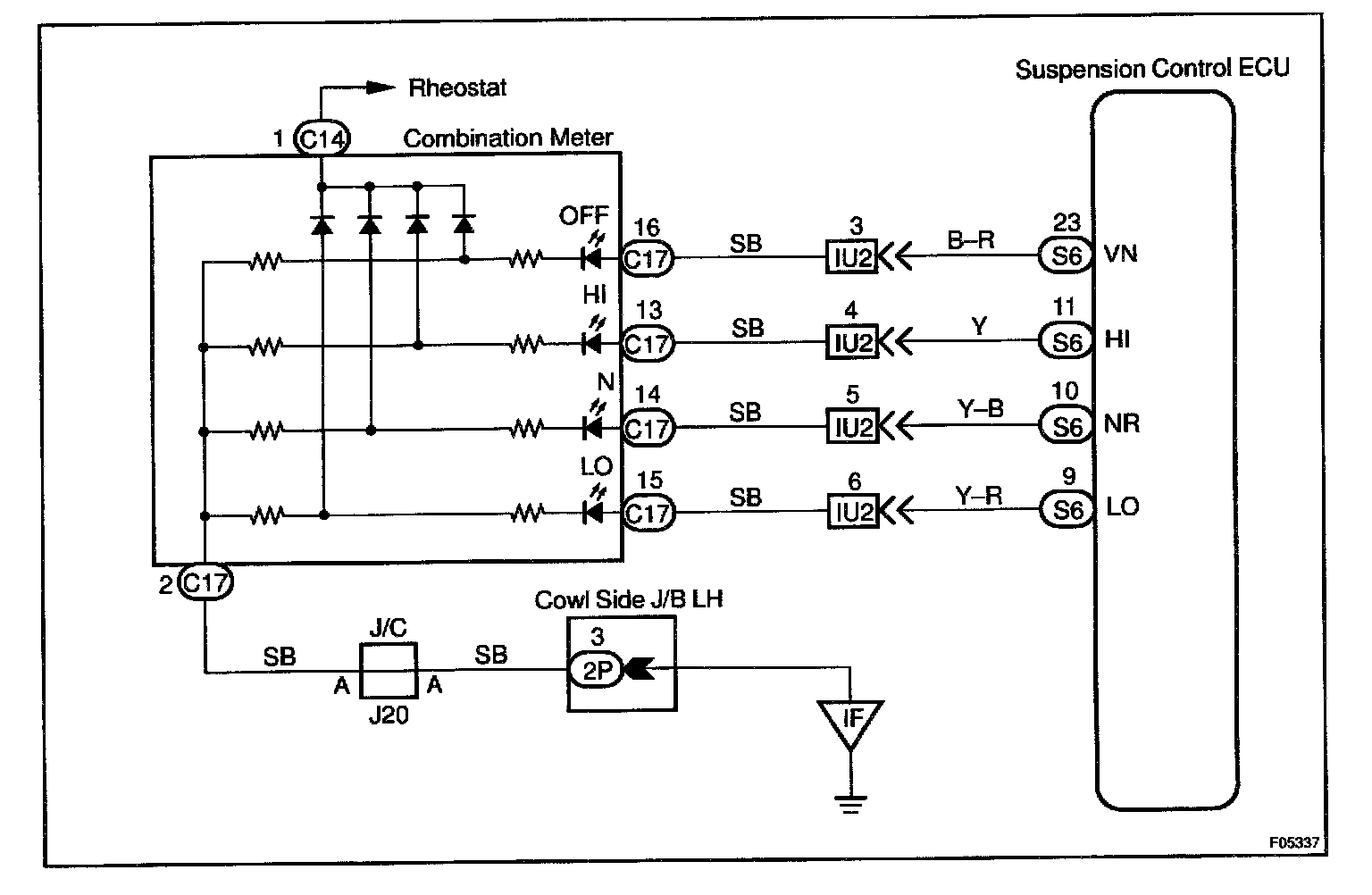

WIRING DIAGRAM

HINT: Troubleshooting in accordance with the chart below for each trouble symptom.

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

INSPECTION PROCEDURE
