Connector Locations

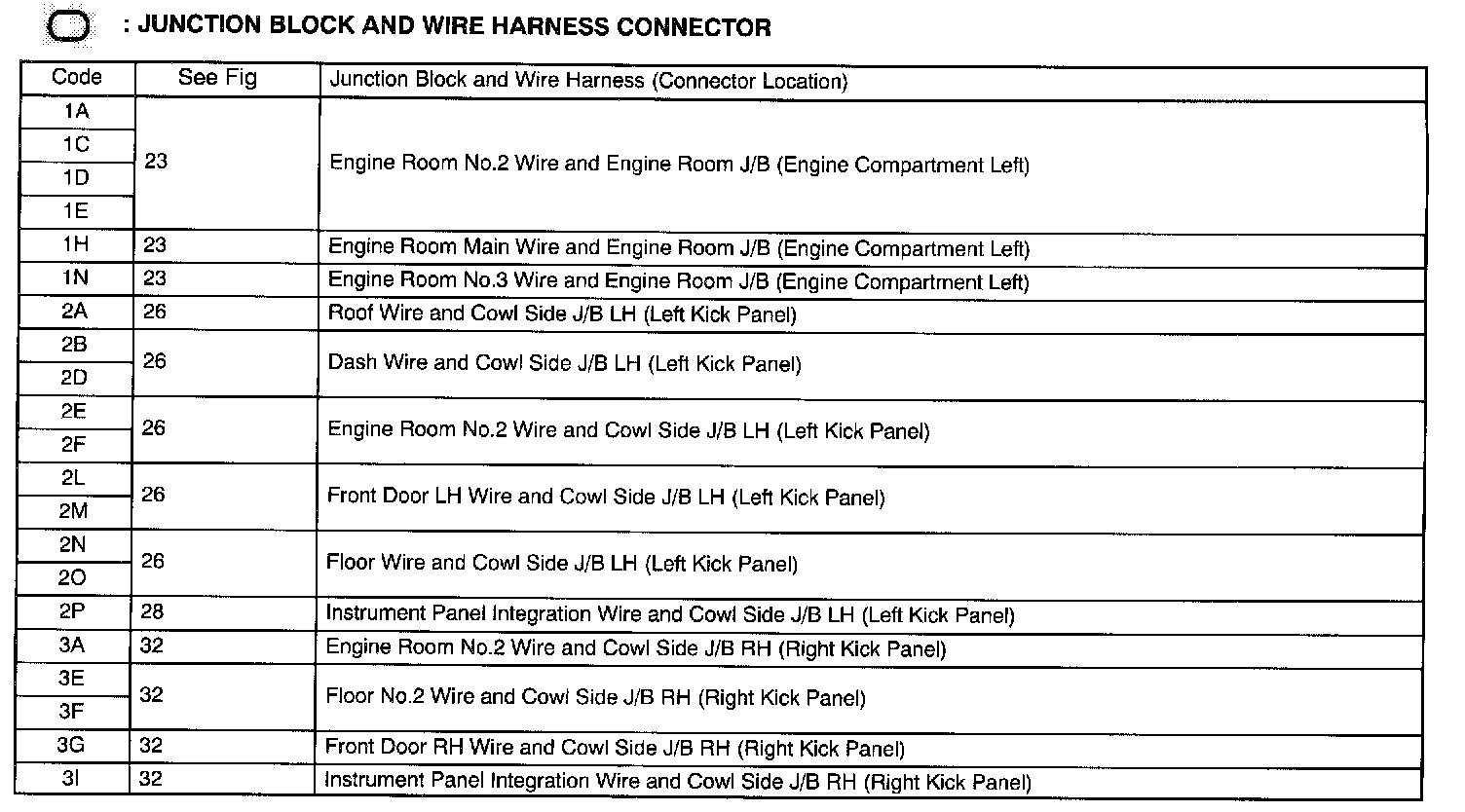

JUNCTION BLOCK AND WIRE HARNESS CONNECTOR




FIG 23




FIG 26




FIG 28




FIG 32






CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS




FIG 48




FIG 50




FIG 52




FIG 54




FIG 56




FIG 58




FIG 60
