Shift Interlock: Testing and Inspection






INSPECTION

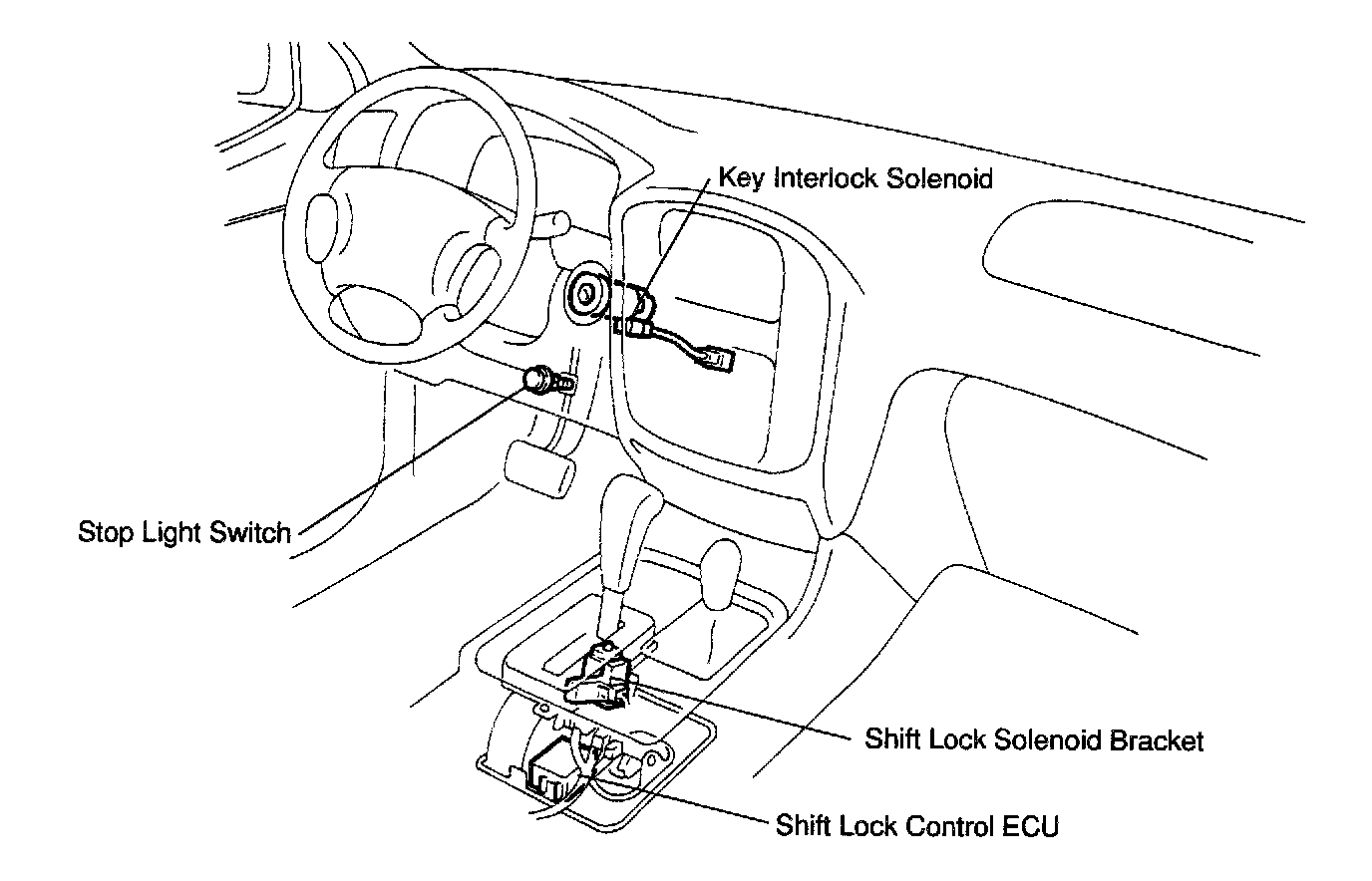

1. INSPECT SHIFT LOCK CONTROL ECU

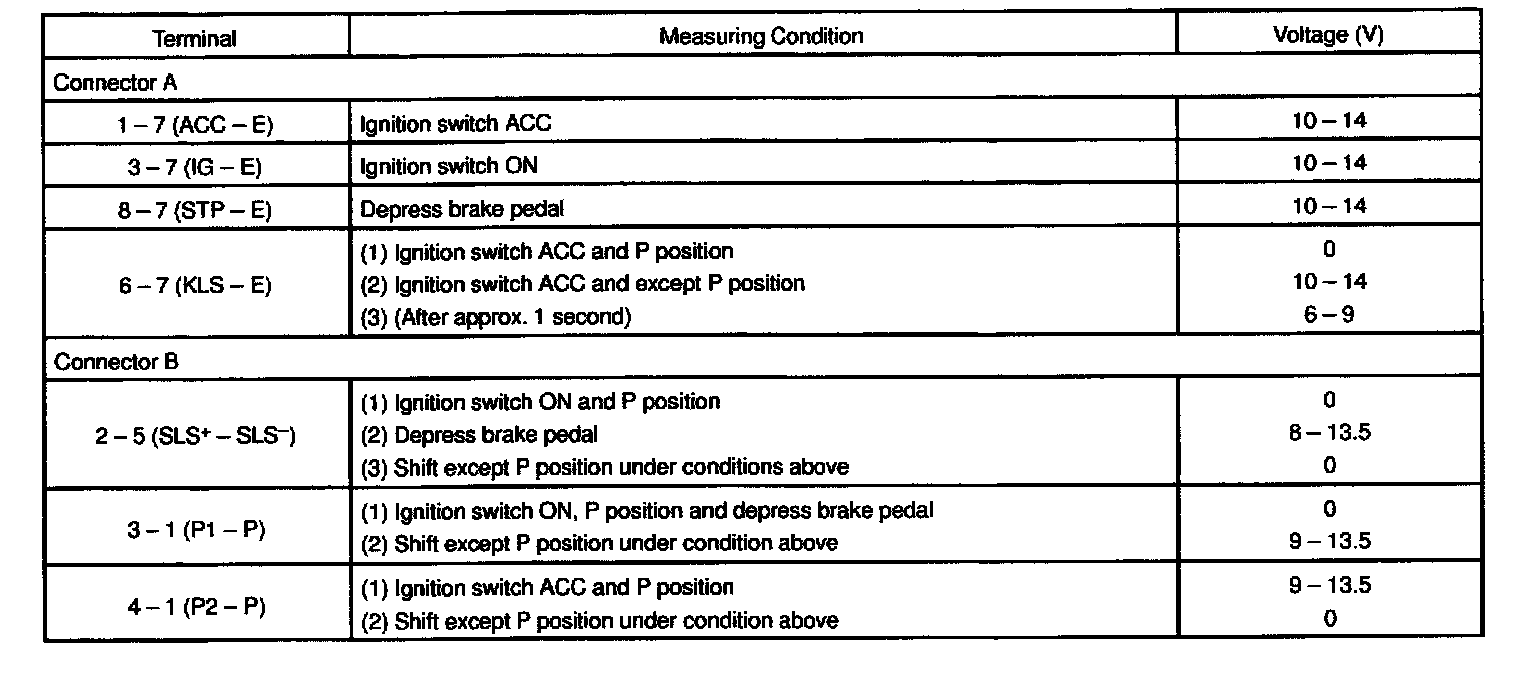

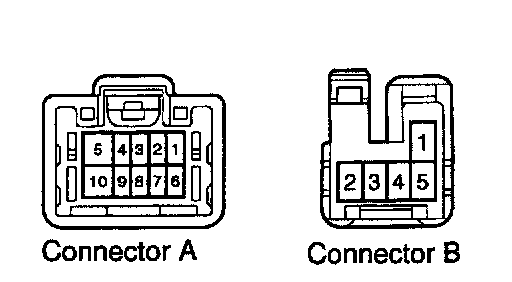

Using a voltmeter, measure voltage at each terminal.

HINT: Do not disconnect the ECU connector.





2. INSPECT SHIFT LOCK SOLENOID
a. Disconnect the solenoid connector.

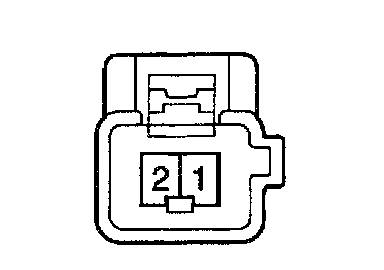

b. Using an ohmmeter, measure resistance between terminals.
Standard resistance: 20 - 28 Ohms
If resistance value is not as specified, replace the solenoid.
c. Apply battery positive voltage between terminals. Check that operation noise can be heard from the solenoid.
If the solenoid does not operate, replace the solenoid.





3. INSPECT SHIFT LOCK CONTROL SWITCH

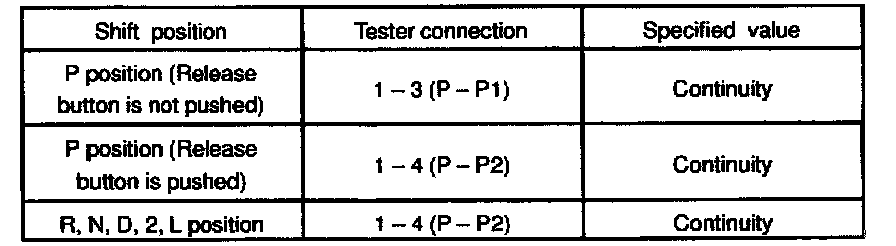

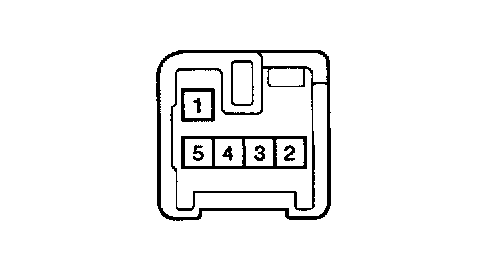

Inspect that continuity exists between each terminal. If continuity is not as specified, replace the switch.





4. INSPECT KEY INTERLOCK SOLENOID
a. Disconnect the solenoid connector.
b. Using an ohmmeter, measure resistance between terminals 1 and 2.
Standard resistance: 12 - 17 Ohms
If resistance value is not as specified, replace the solenoid.
c. Apply battery positive voltage between terminals. Check that an operation noise can be heard from the solenoid.
If the solenoid does not operate, replace the solenoid.
