Transmission Temperature Sensor/Switch: Service and Repair
ON-VEHICLE REPAIR1. REMOVE ENGINE NO.2 UNDER COVER
2. DISCONNECT ATF TEMPERATURE SENSOR CONNECTOR

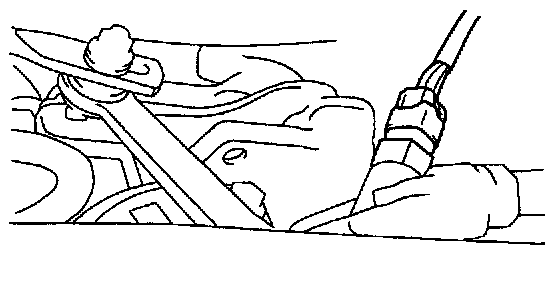

3. REMOVE ATF TEMPERATURE SENSOR
a. Remove the ATF temperature sensor.
b. Remove the O-ring from the ATF temperature sensor.
4. INSTALL ATF TEMPERATURE SENSOR
a. Coat a new O-ring with ATF and install it to the ATF temperature sensor.
b. Install the ATF temperature sensor.
Torque: 15 Nm (150 kgf-cm, 11 ft. lbs.)
5. CONNECT ATF TEMPERATURE SENSOR CONNECTOR
6. INSTALL ENGINE NO.2 UNDER COVER
