Cylinder Head

Cylinder Head Bolt Torque

Tighten in several steps.

Step 1 59 Nm (43.516 ft.lb.)
Step 2 Tighten an additional 90 degrees

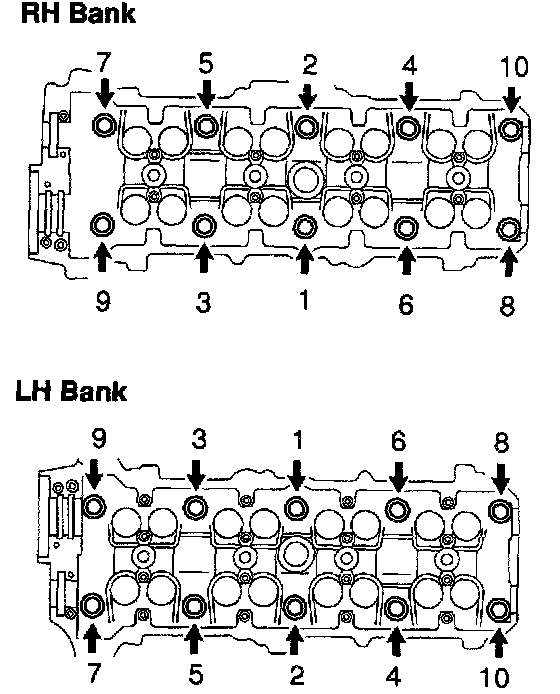

Cylinder Head Bolt Tightening Sequence:

Cylinder Head Bolt Tightening Sequence

Intake Manifold Torque 18 Nm (13.2761 ft.lb.)

Exhaust Manifold

Use new nuts. Tighten in several steps.

Torque 44 Nm (32.4526 ft.lb.)

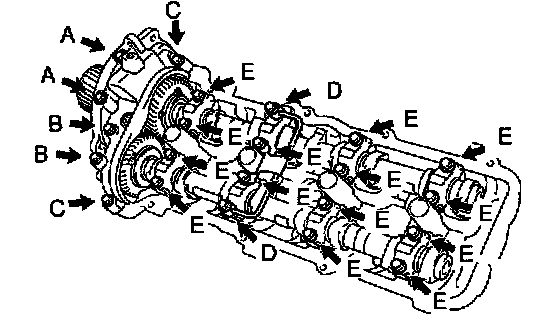

Camshaft Bearing Cap Tightening Torque





Bolt C 7.5 Nm (5.5317 ft.lb.)
Others 16 Nm (11.801 ft.lb.)

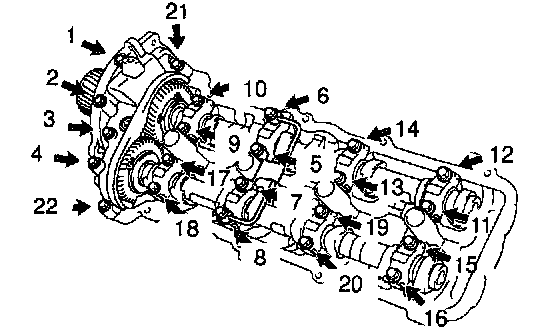

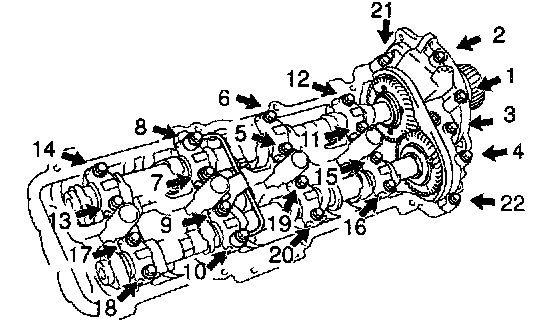

Camshaft Bearing Cap Tightening Sequence




Left Head





Right Head

Head Bolt Type Reuseable

Measure the thread outside diameter of the cylinder head bolt. If the diameter is less than 9.70 mm (0.3189 in), replace the bolt.

Maximum Warpage 0.10 mm

Camshaft Pulley 7.5 Nm (5.5317 ft.lb.)
