Only Wireless Control Function Is Inoperative

ONLY WIRELESS CONTROL FUNCTION IS INOPERATIVE (PREPARE NEW OR NORMAL TRANSMITTER OF THE SAME TYPE VEHICLE)

CIRCUIT DESCRIPTION

Door control receiver receives a signal from the transmitter and sends the signal to the MPX body ECU. The MPX body ECU sends a door LOCK/UNLOCK signal to each door lock actuator to control it.

Wiring Diagram:

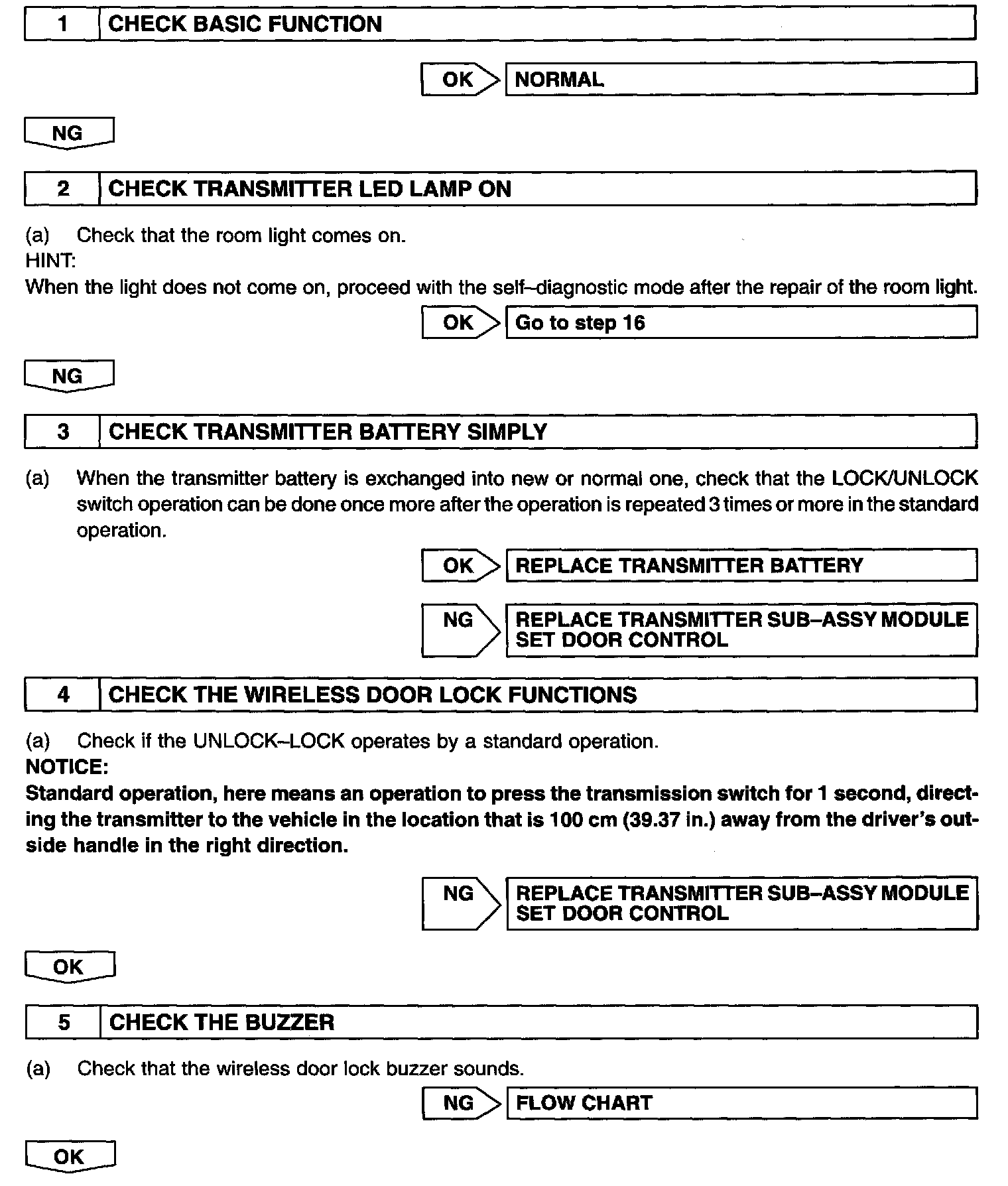

Step 1 - 5:

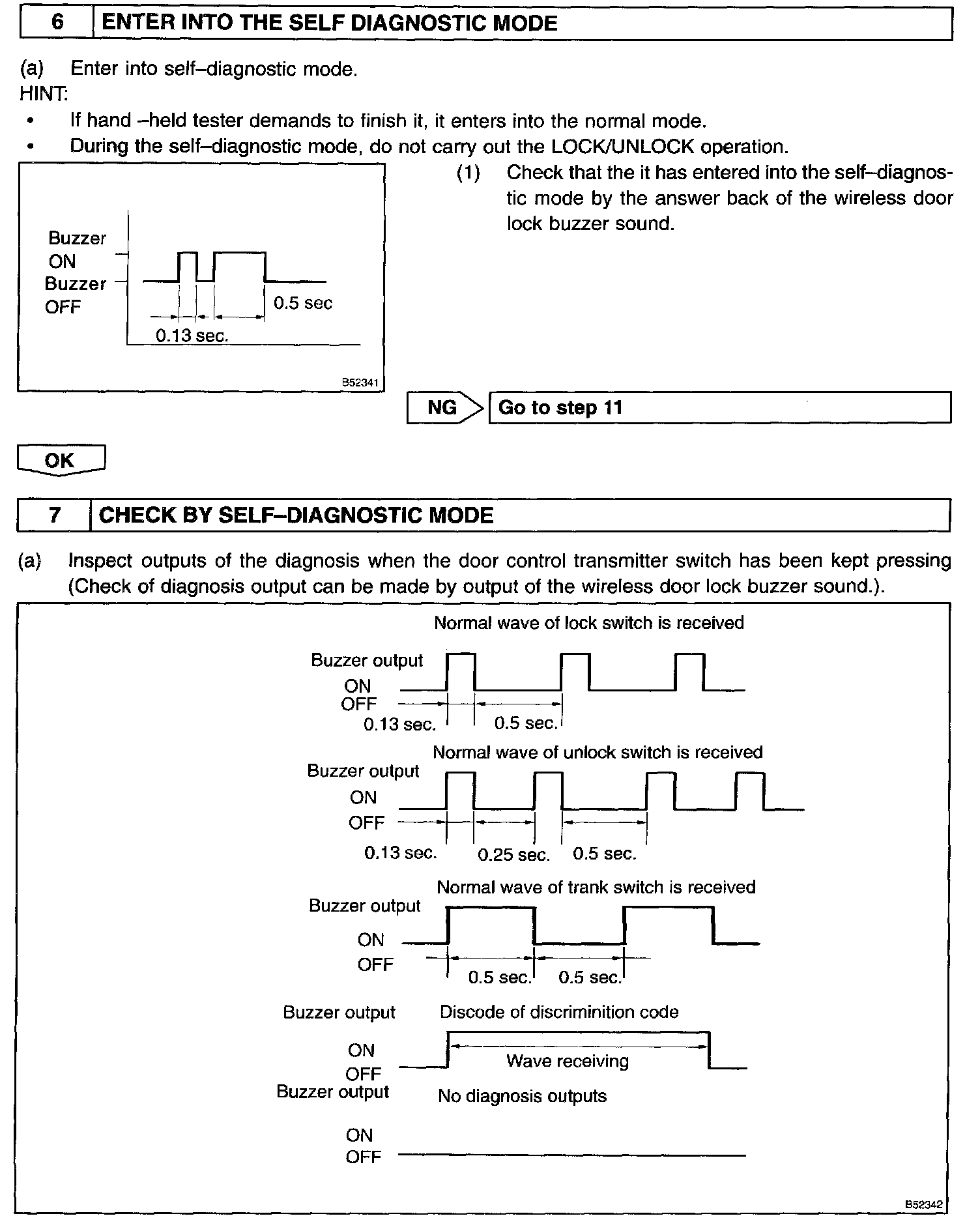

Step 6 - 7:

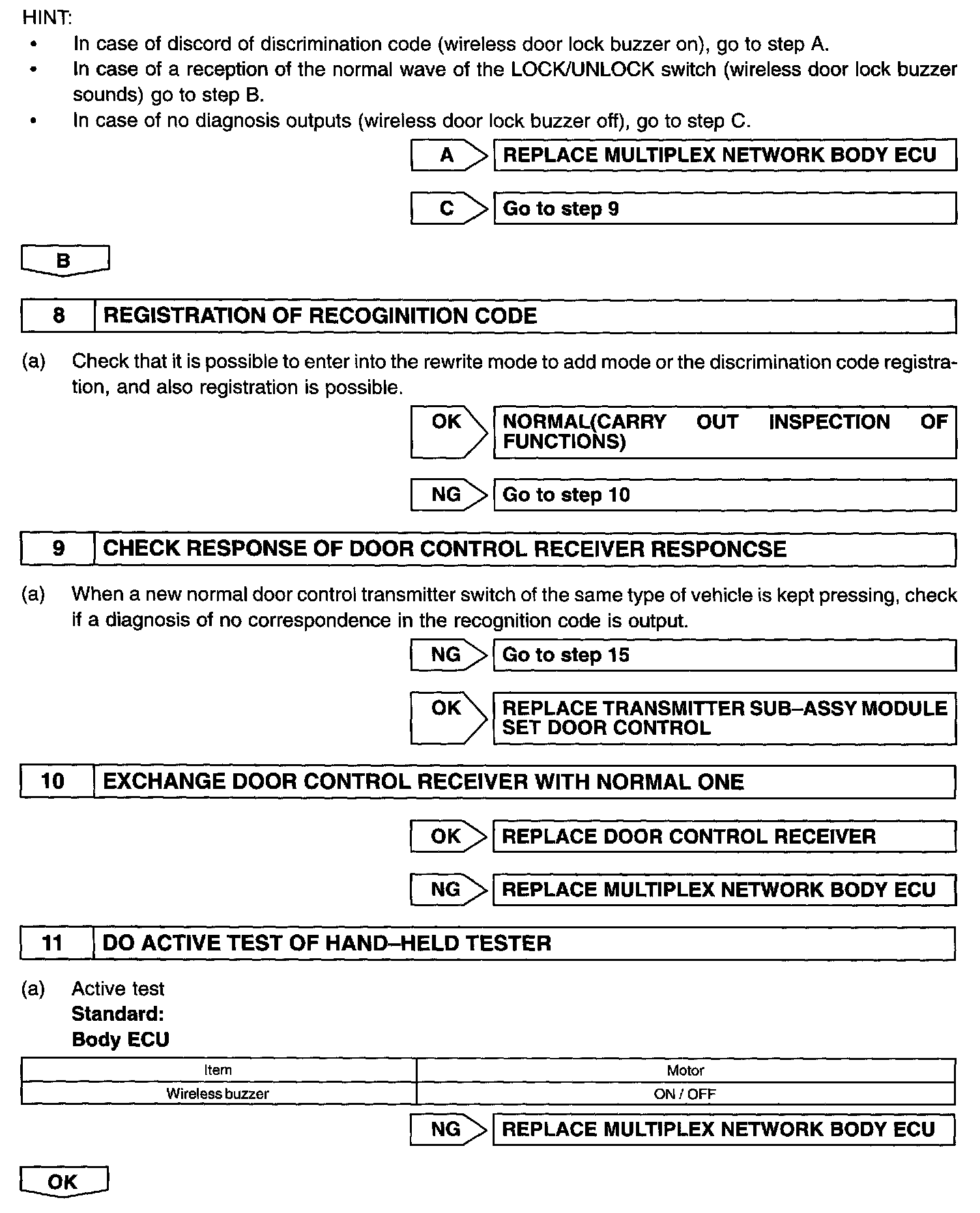

Step 7 (Continued) - 11:

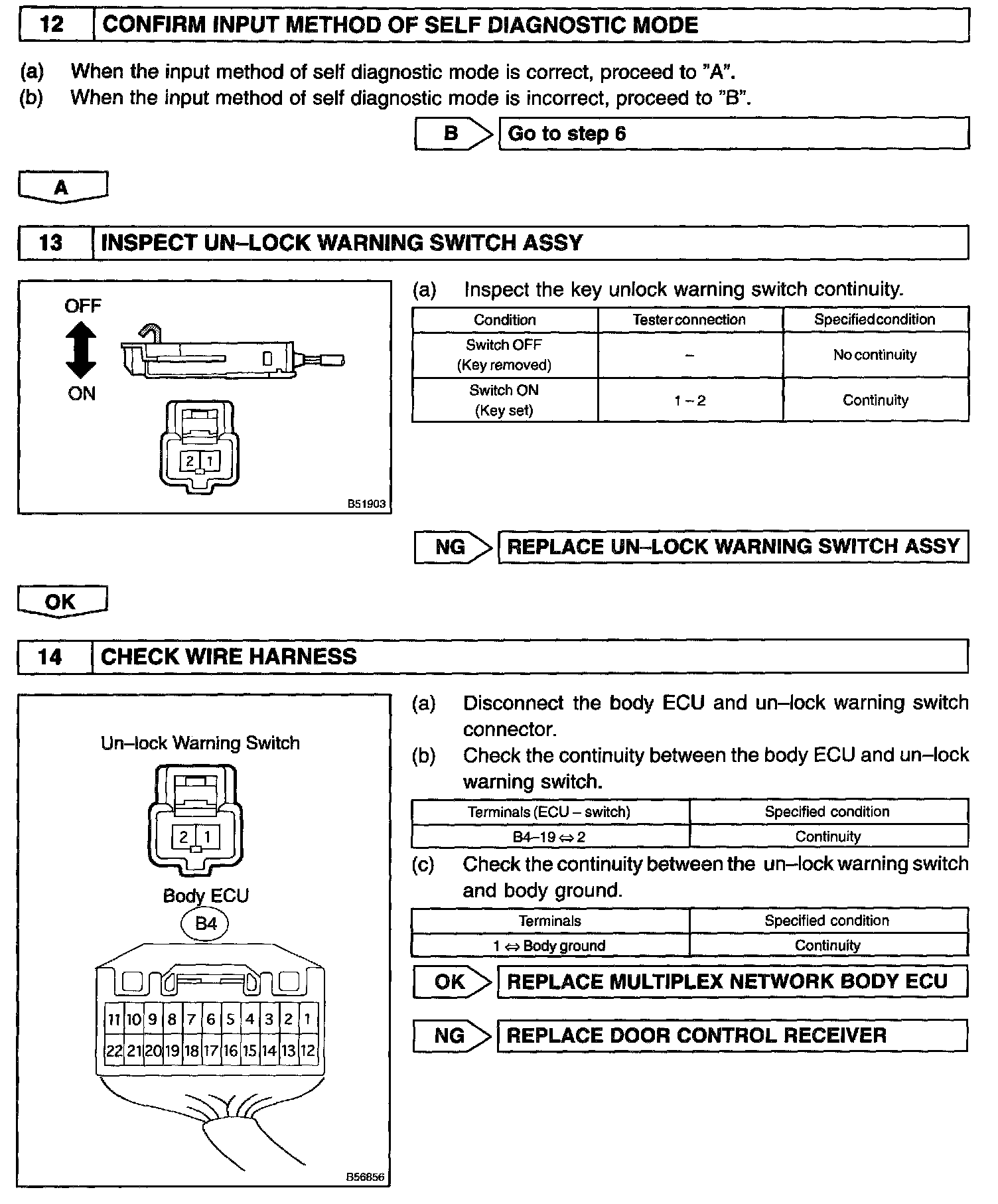

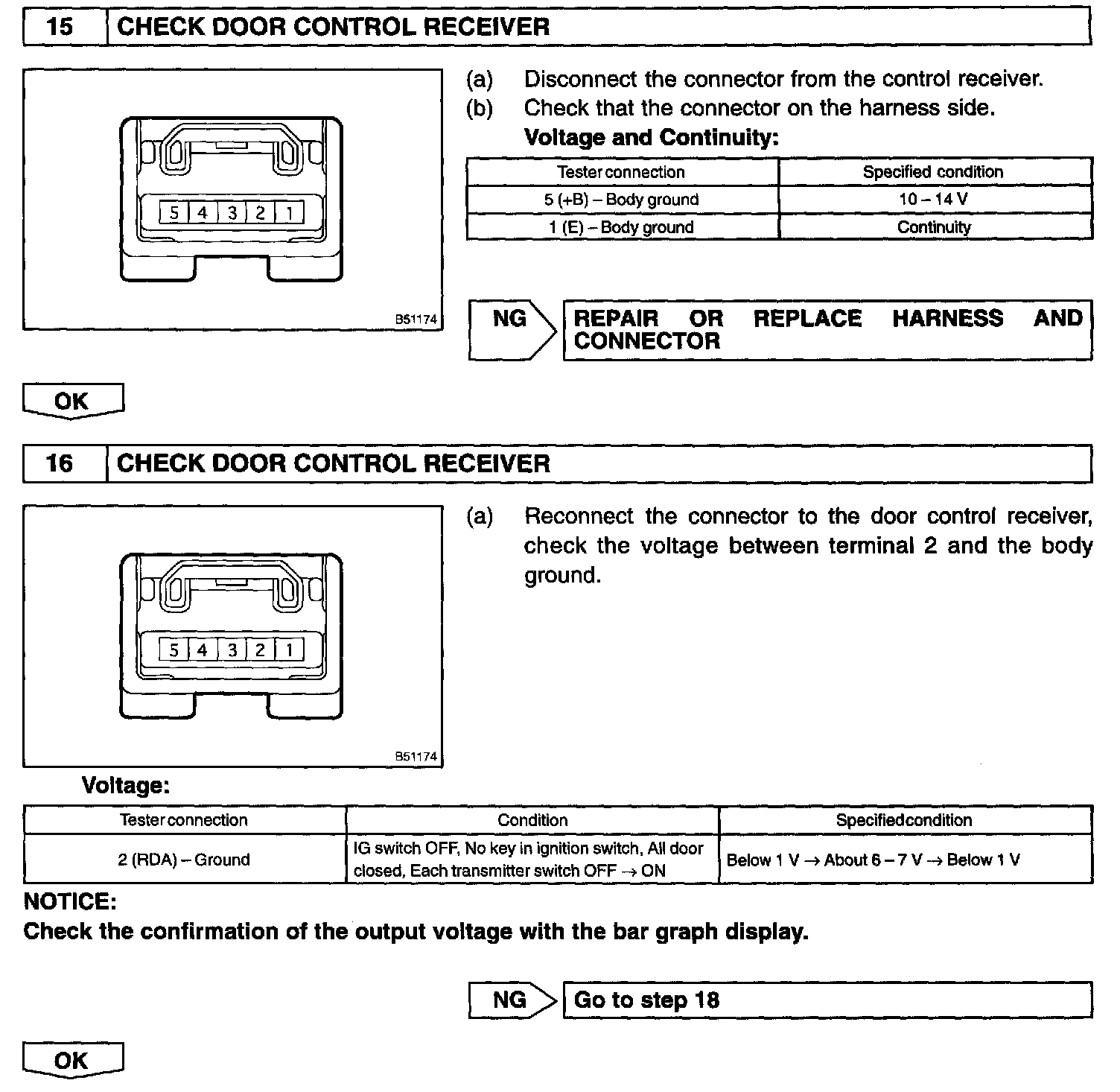

Step 12 - 14:

Step 15 - 16:

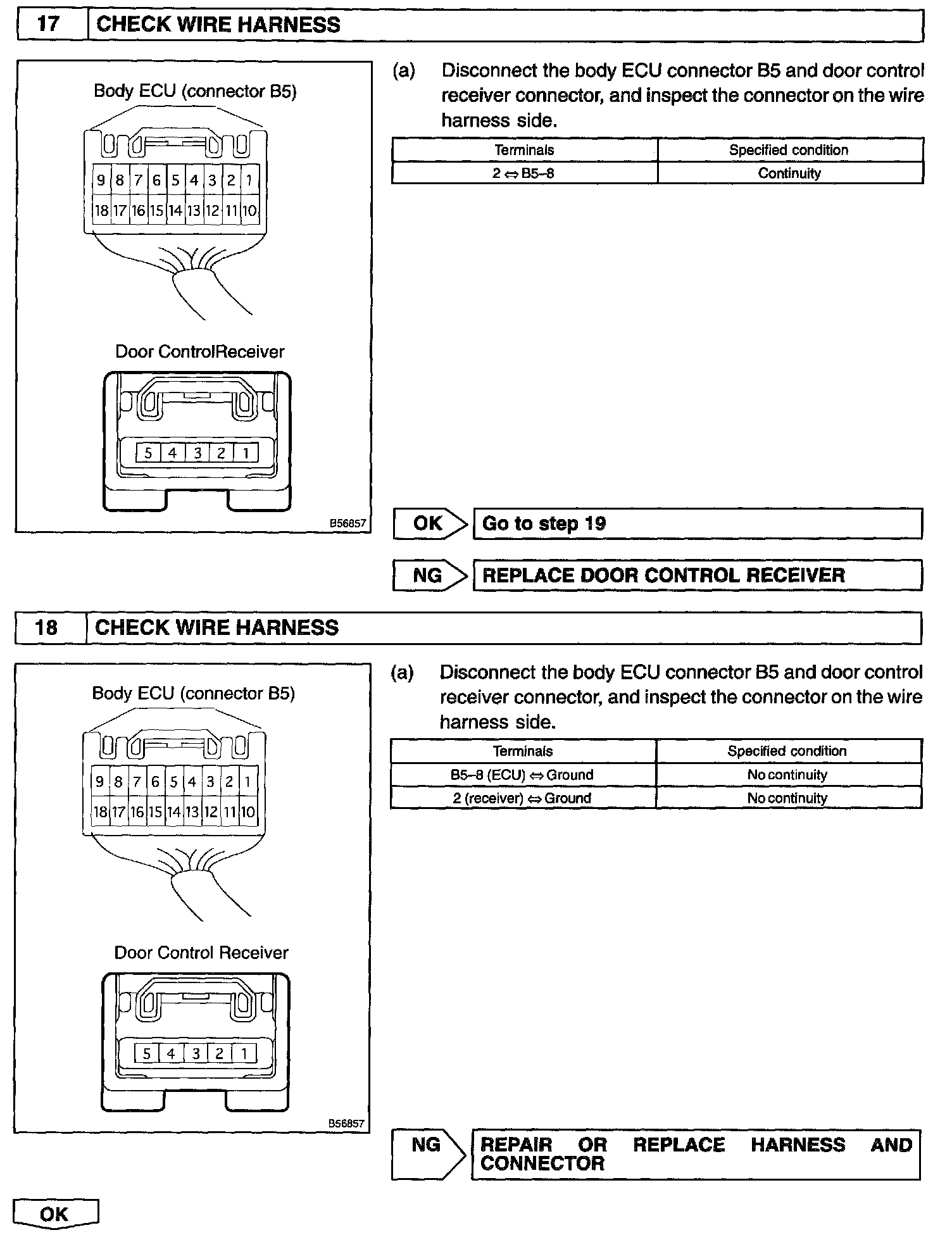

Step 17 - 18:

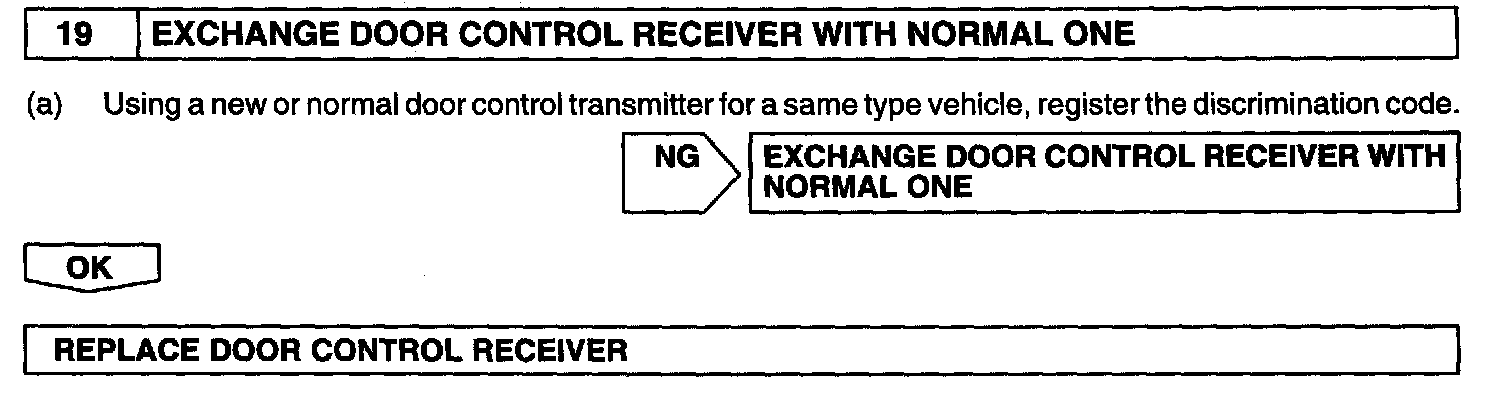

Step 19:

INSPECTION PROCEDURE
