Navigation System - Remote Navigation Switch Inoperative

ELECTRICAL
EL007-01

November 30, 2001

Title:
REMOTE NAVIGATION SWITCH INOPERATIVE

Models:
'02 IS 300 SportCross

Introduction

Some customers may experience a condition where the remote navigation switch is inoperative. To address this condition, a revised navigation switch is now available.

Applicable Vehicles
^ 2002 model year IS 300 SportCross vehicles with navigation system.

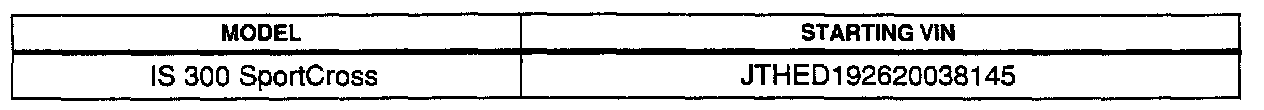

Production Change Information

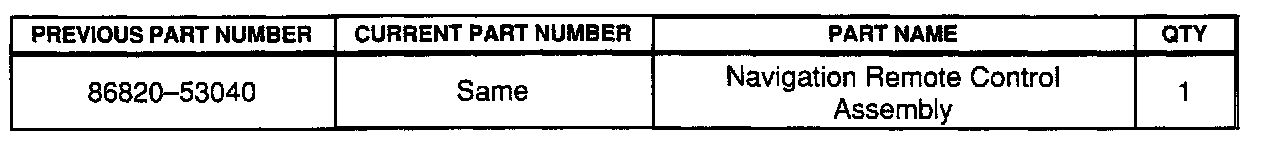

Parts Information

Repair Order a replacement unit through the Panasonic exchange program by calling Procedure 1-800-367-7689.

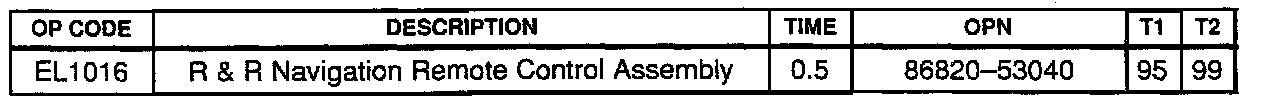

Warranty Information

Applicable Warranty*:

This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer specific complaint.
