Multi Information Display

CIRCUIT DESCRIPTION

The combination meter is connected to ECM, the Clearance Sonar ECU, the A/C ECU and the overhead J/B with the multiplex communication circuit

It receives the signals of the radio cruise control, the clearance sonar, the outside temperature and the compass direction from each ECU to display the adaptive laser radar cruise control, the clearance sonar, the outside temperature and the compass.

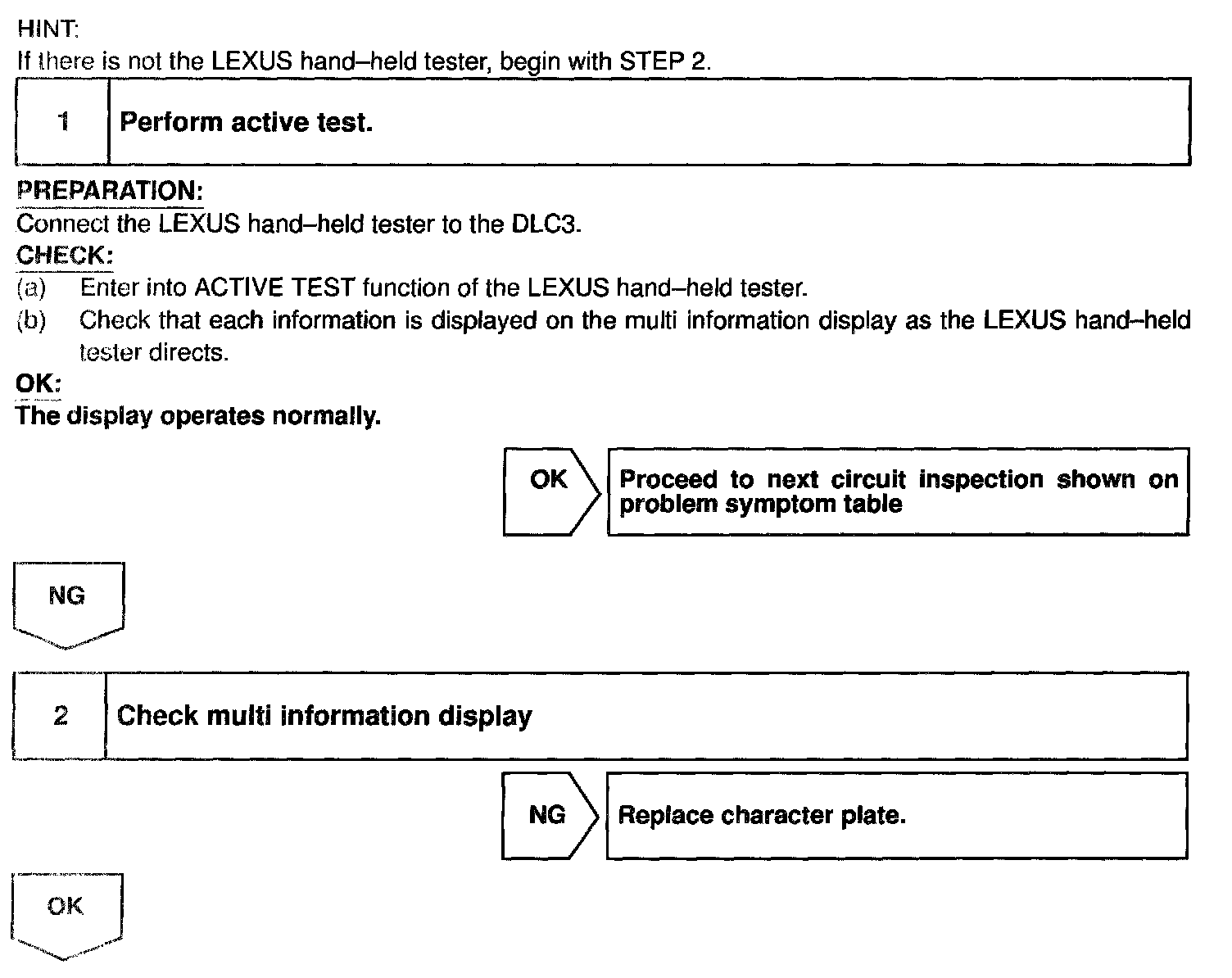

Step 1 - 2:

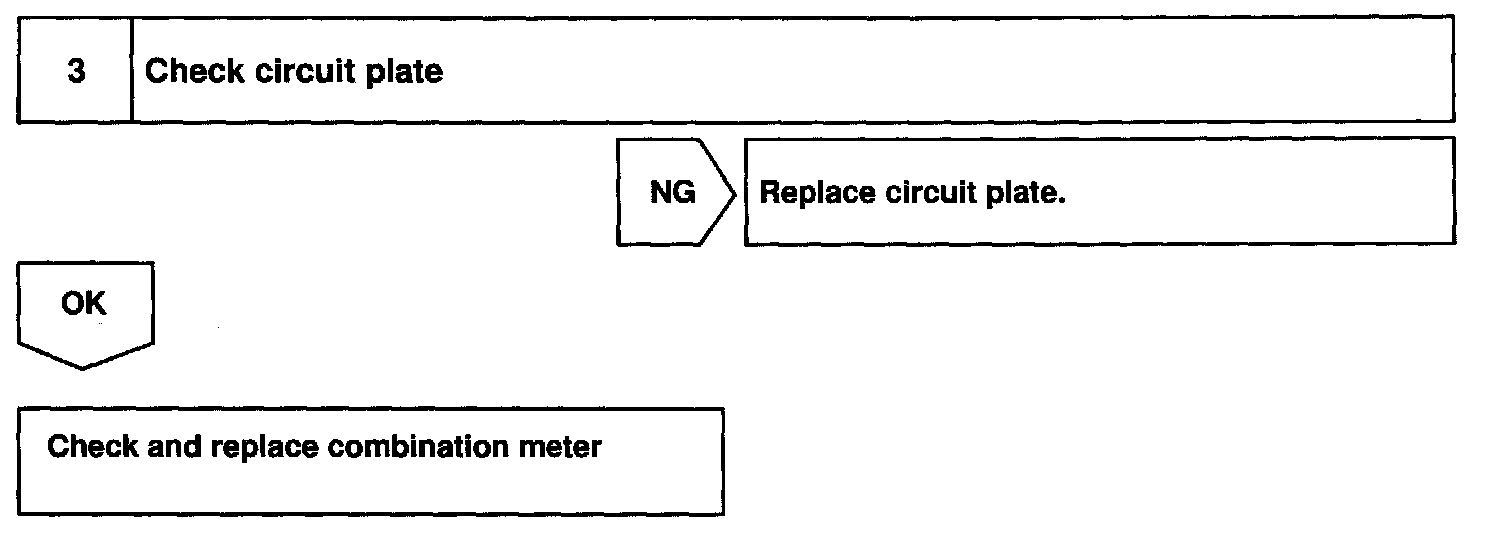

Step 3:

INSPECTION PROCEDURE
