Speed Sensor Circuit
CIRCUIT DESCRIPTIONThe combination meter is connected to the skid control ECU with the multiplex communication circuit.
It receives the speed sensor signal from the skid control ECU.
INSPECTION PROCEDUREStep 1 - 2:

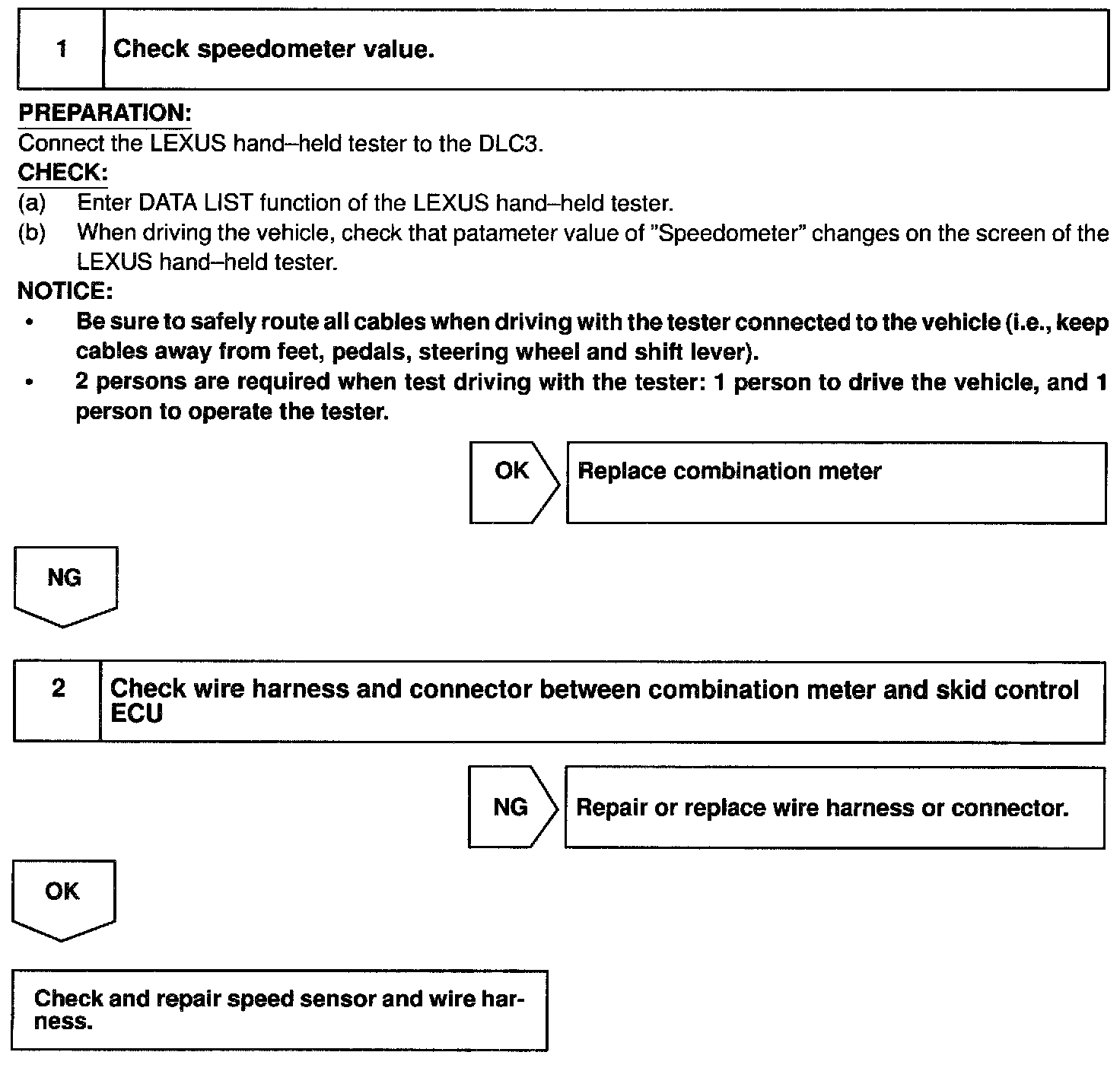

When using LEXUS hand-held tester:Step 1 - 2:

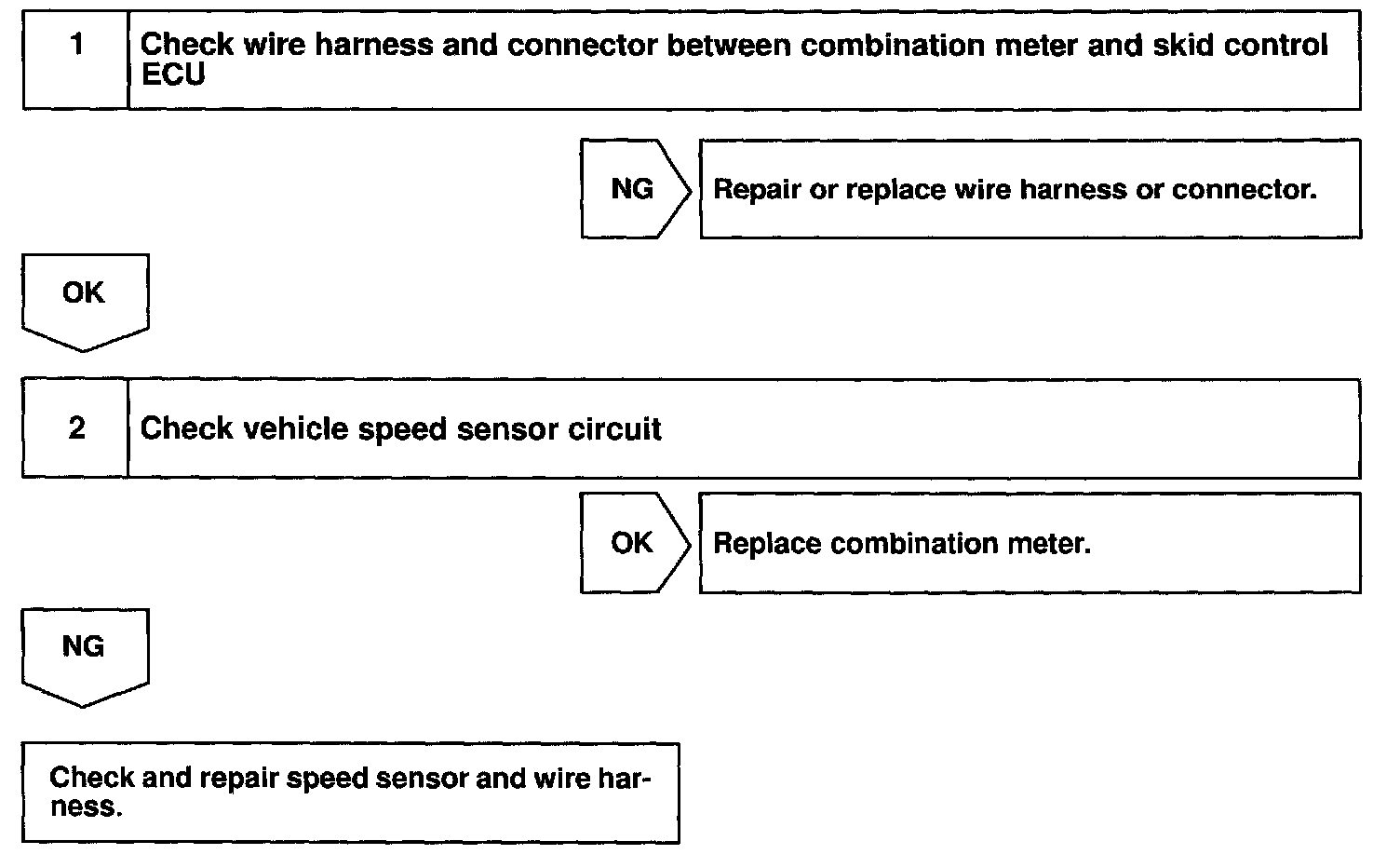

When not using LEXUS hand-held tester:
