Door Lock Motor Circuit
CIRCUIT DESCRIPTIONThe door lock motor is built in the door lock assembly.
The passenger door ECU receives the passenger door lock switch signal from the master switch to operate the door lock motor.
When the battery voltage is applied to the terminal as follows, the door lock functions accordingly.

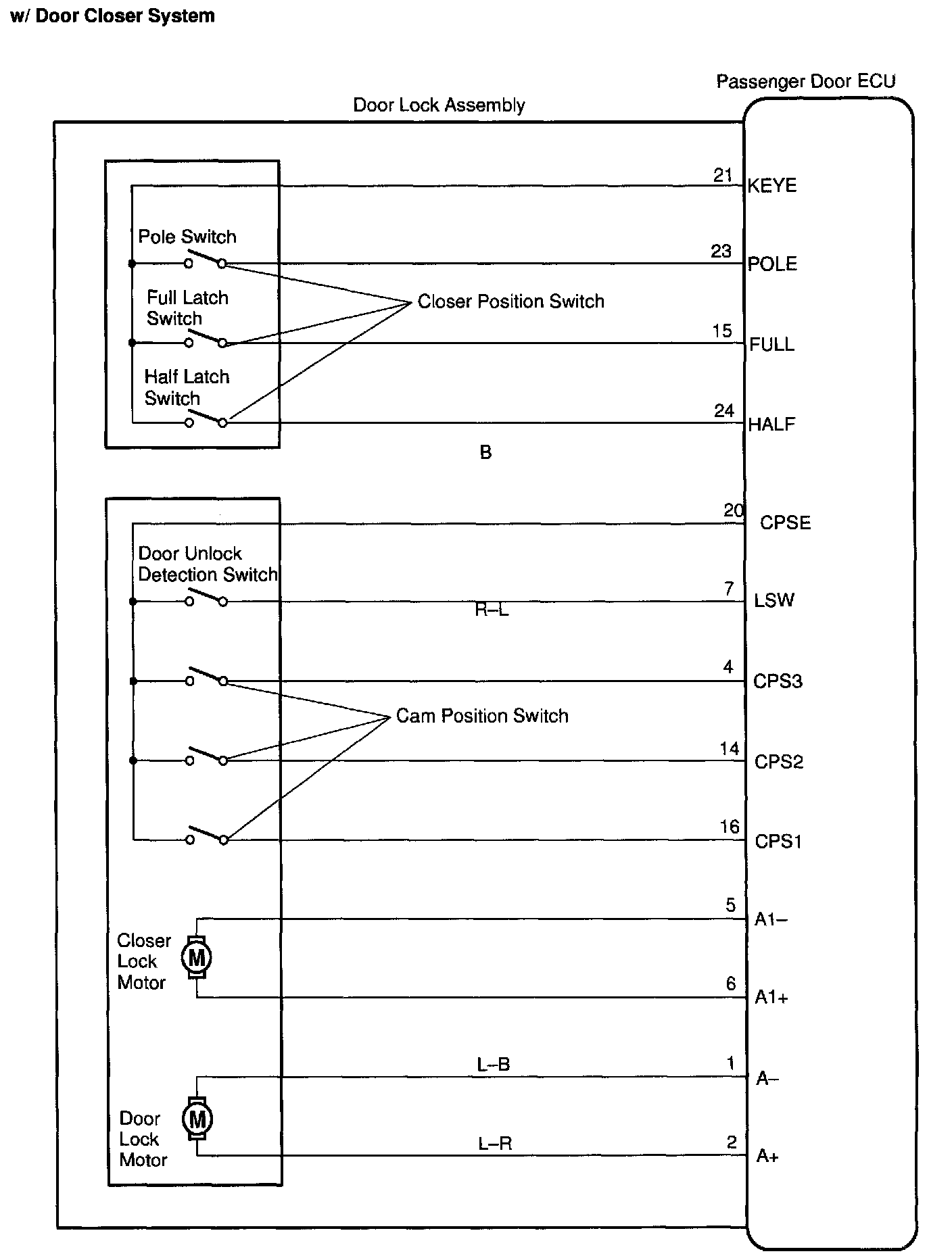

Wiring Diagram:

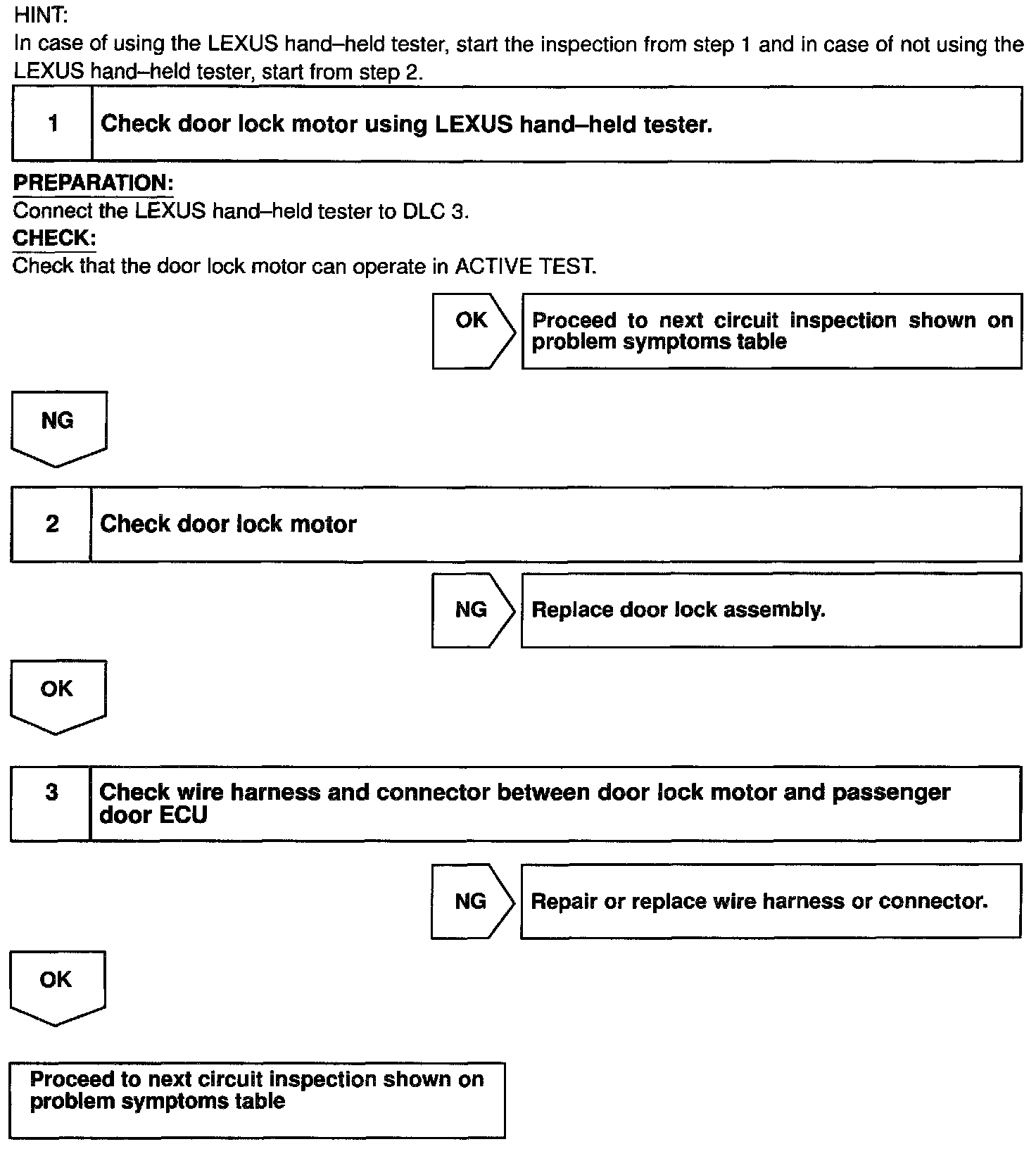

Step 1 - 3:
INSPECTION PROCEDURE
