Mirror Motor Circuit

CIRCUIT DESCRIPTION




The mirror motor is built in the outer mirror assembly.

When the battery voltage is applied to each terminal, the outer mirror position changes in the following directions.

When the R position of the A/T shift lever is detected, the driver side outer mirror moves 3 degrees downward, and the passenger side outer mirror moves 3.5 degrees downward.

When any other position except for R is detected, it is returned to the former position.

Wiring Diagram:

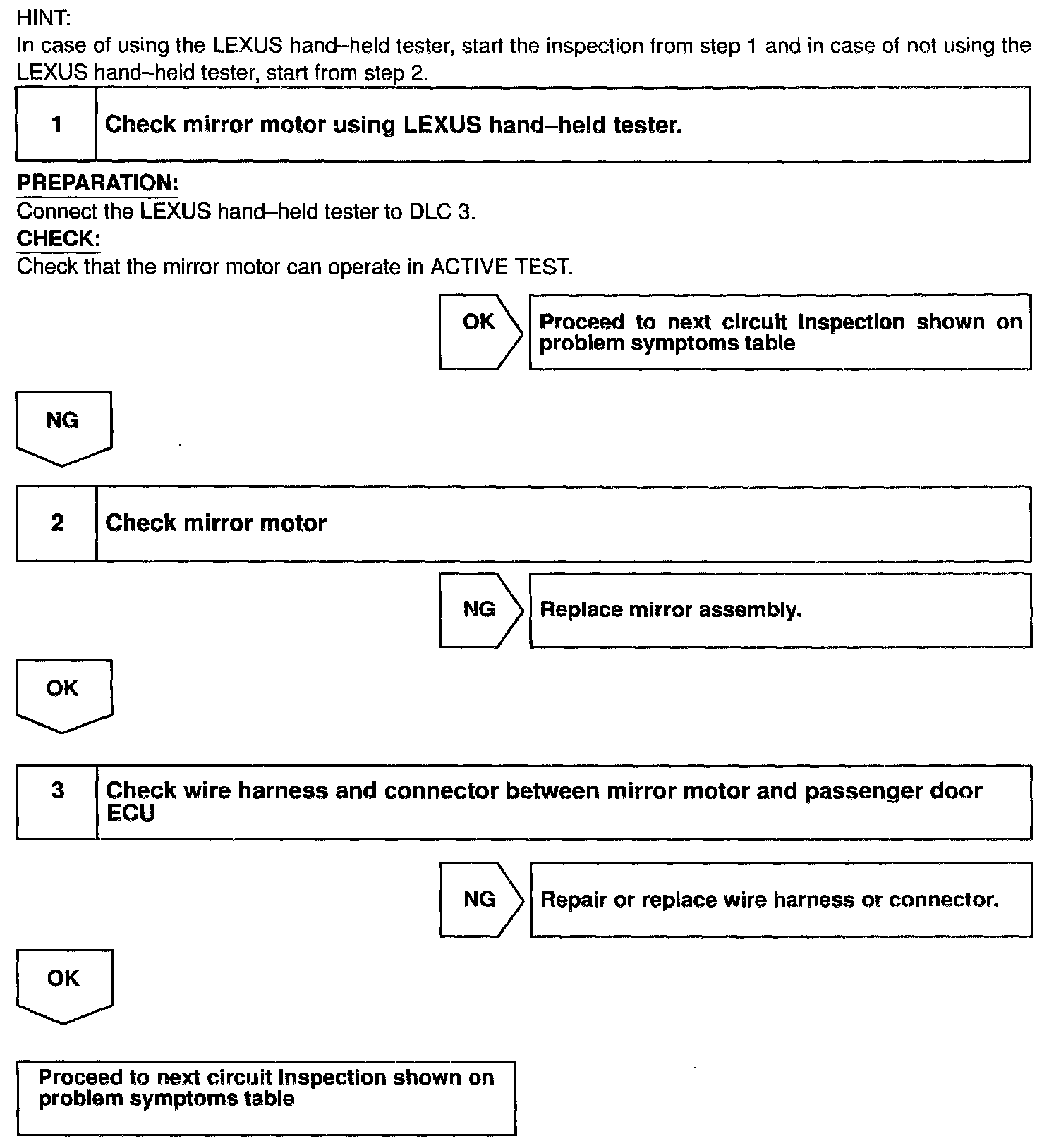

Step 1 - 3:




INSPECTION PROCEDURE
