Connector Code Lists

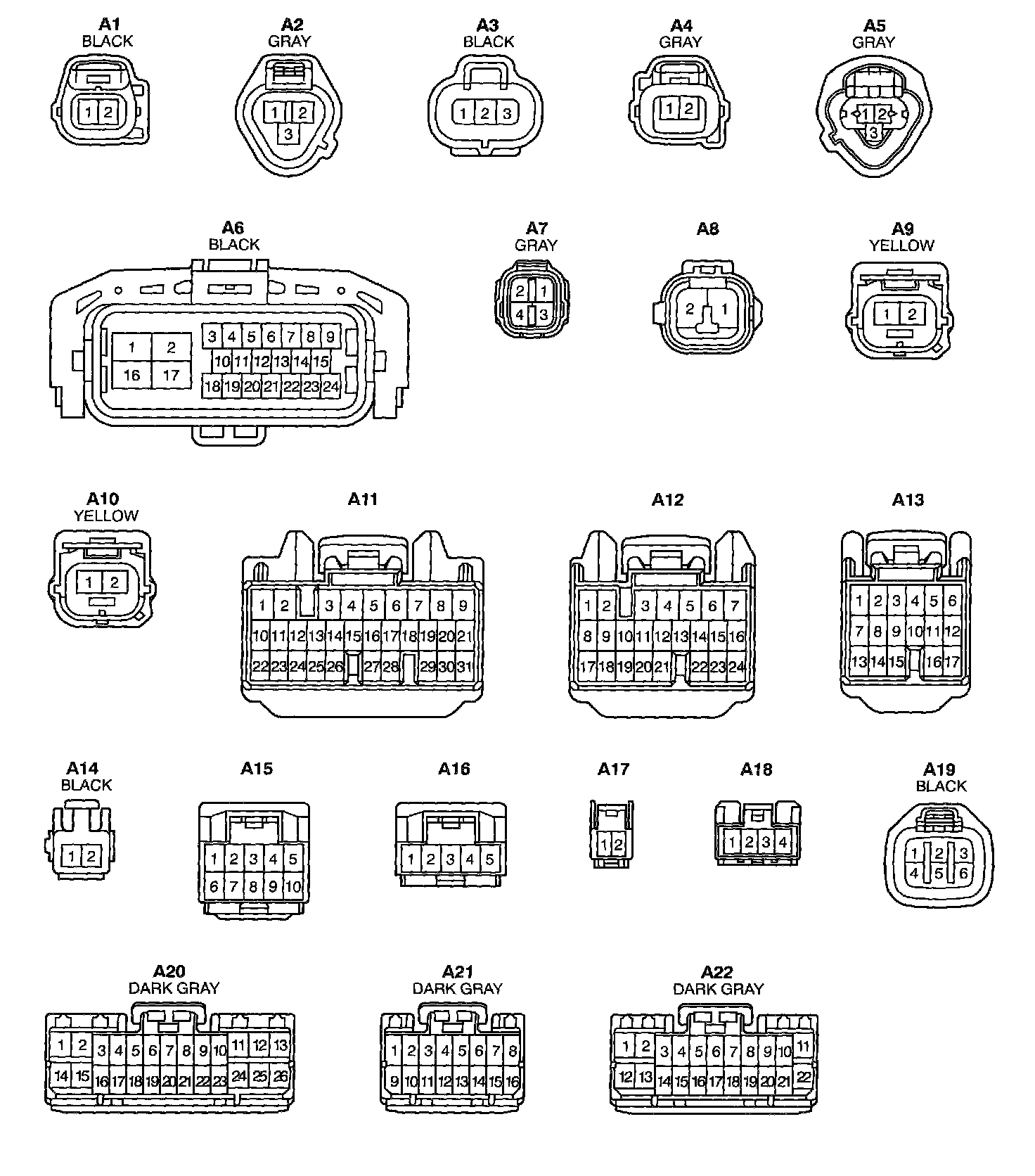

Connector View A1 - A22:

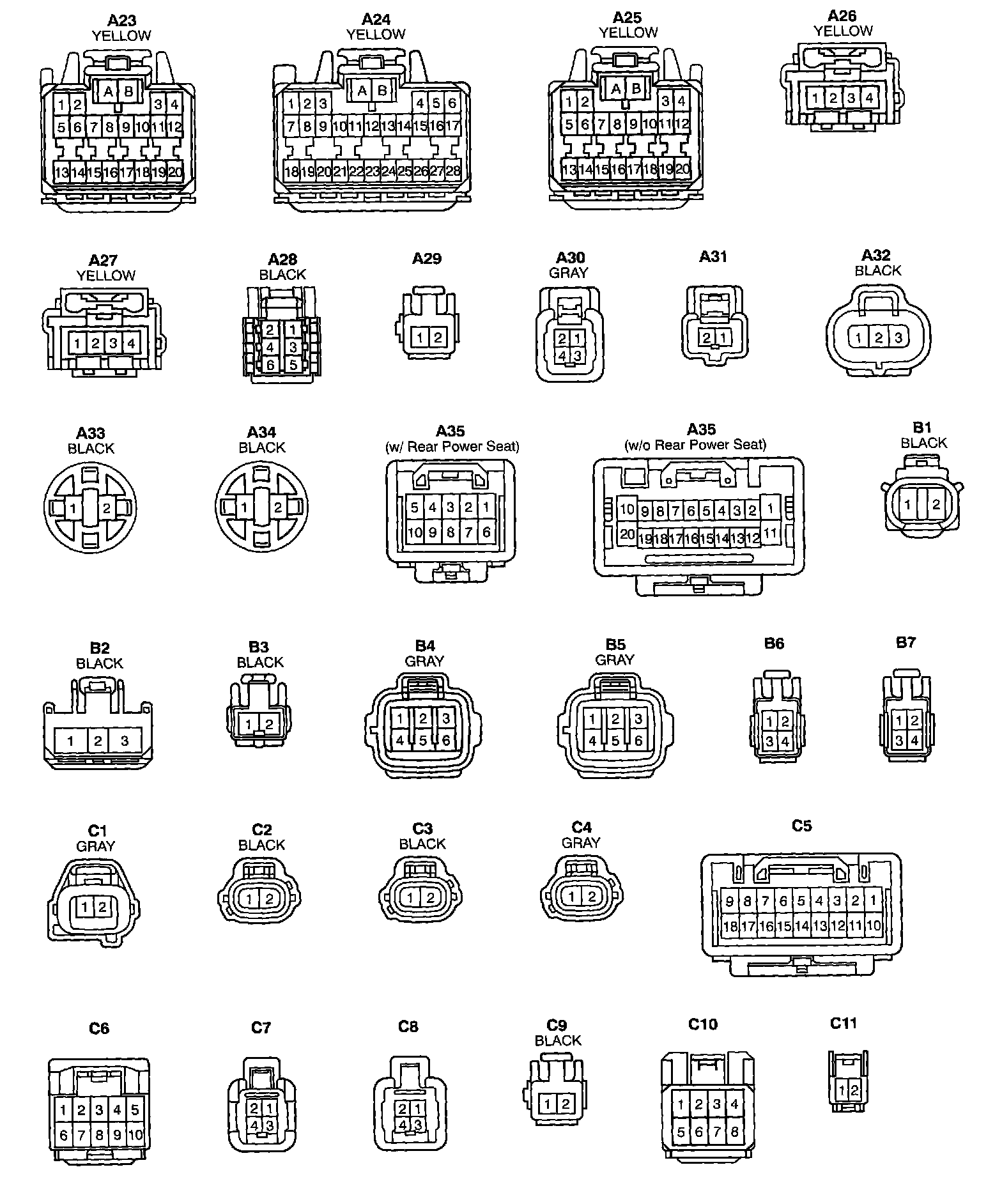

Connector View A23 - C11:

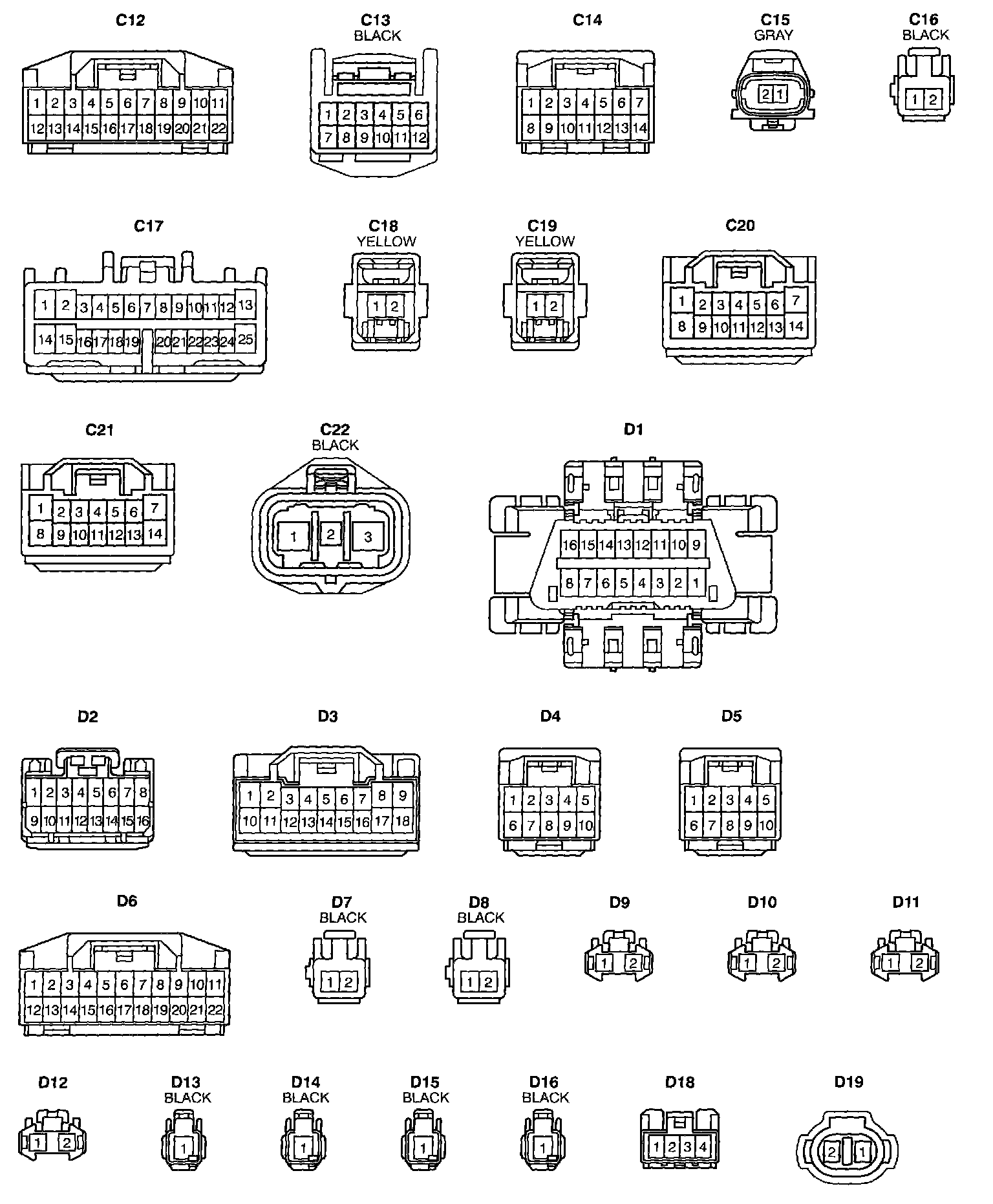

Connector View C12 - D19:

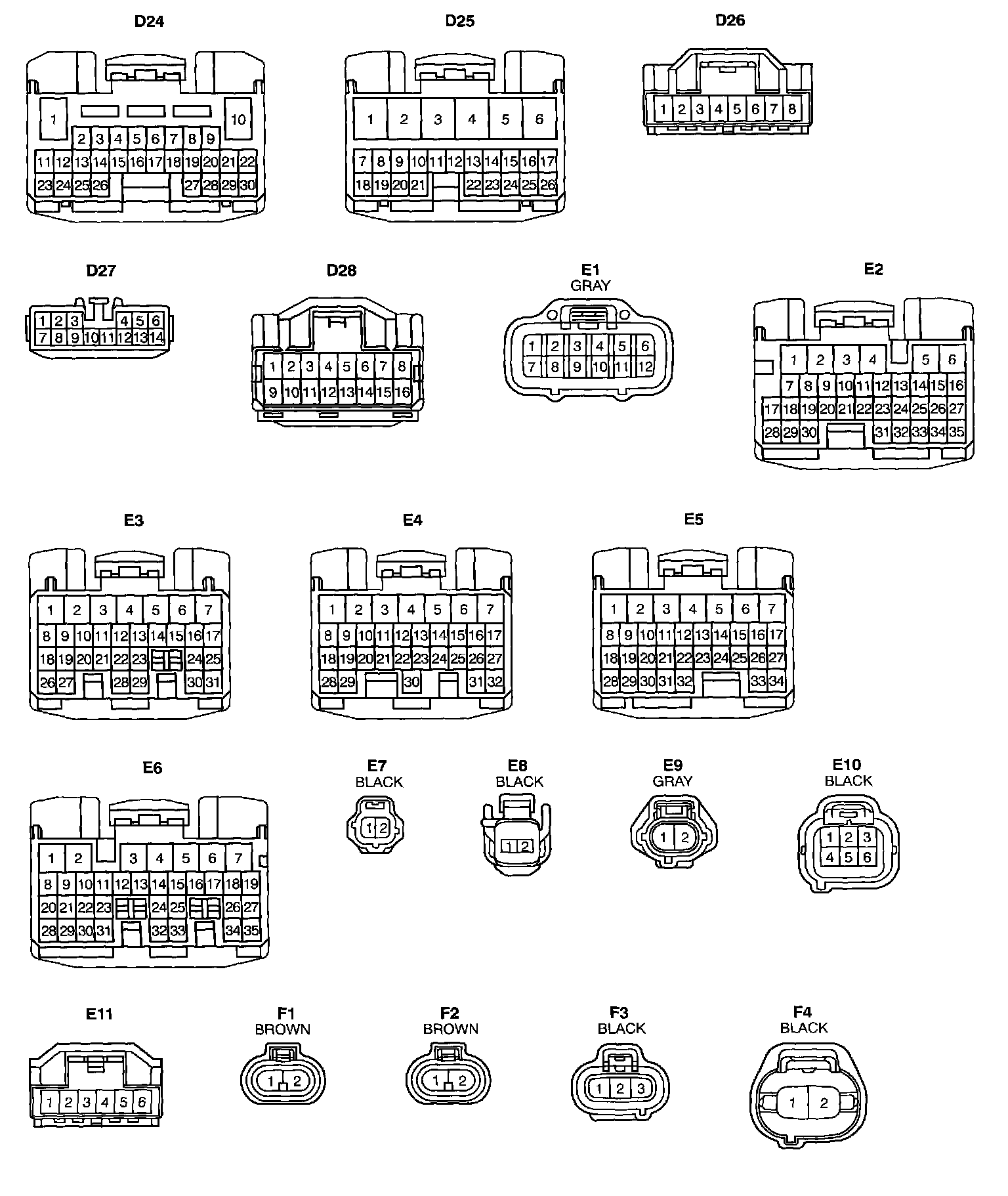

Connector View D24 - F4:

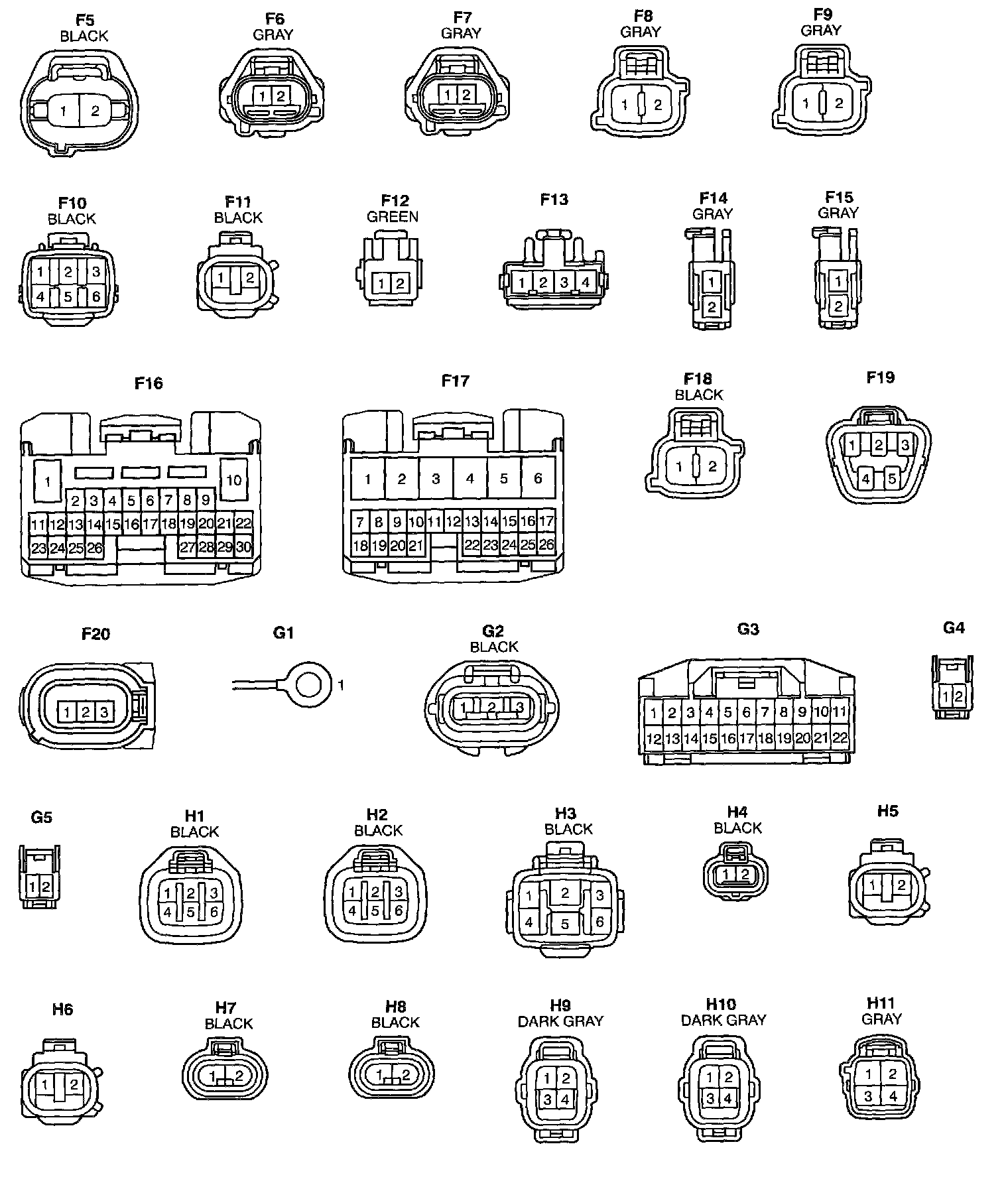

Connector View F5 - H11:

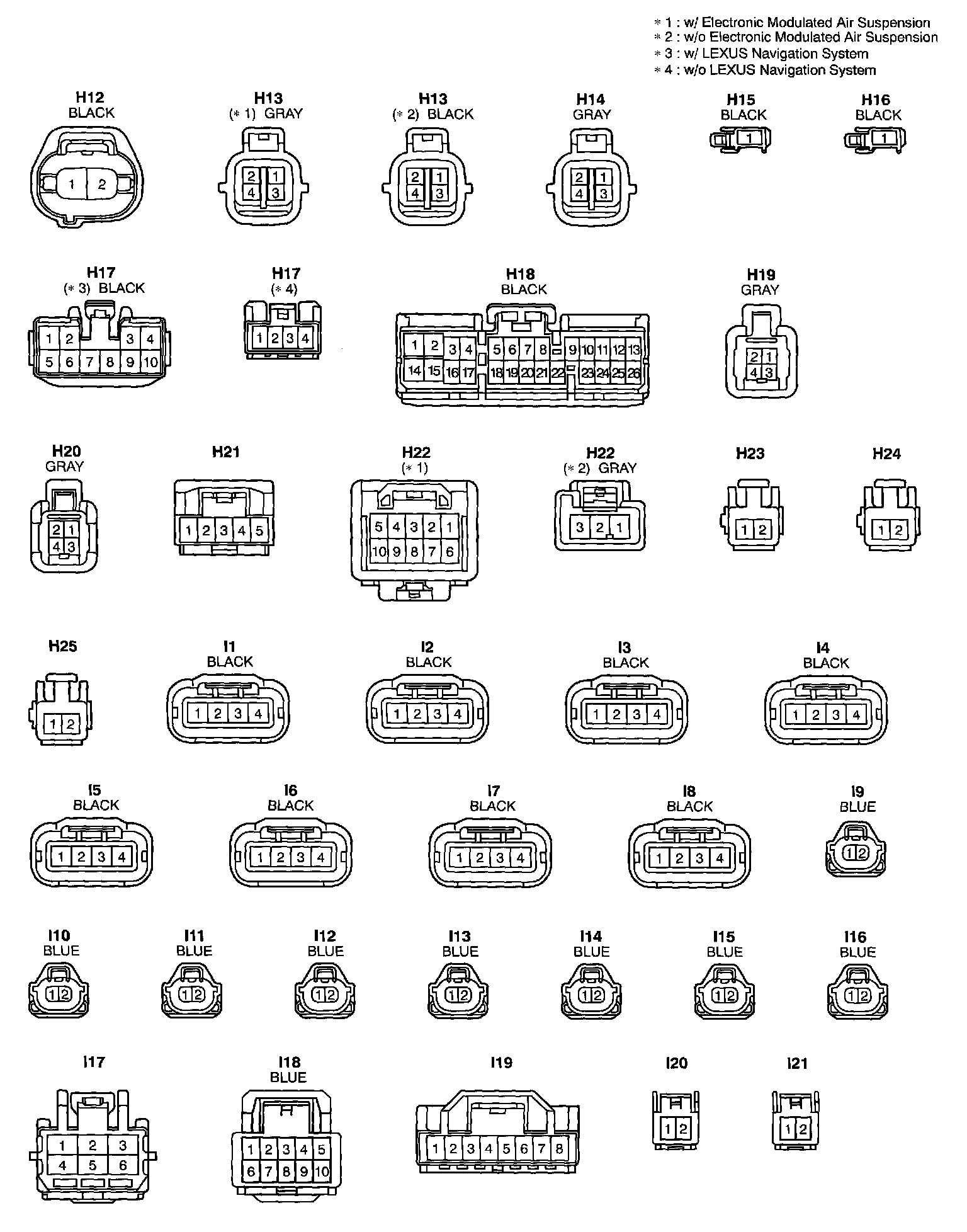

Connector View H12 - I21:

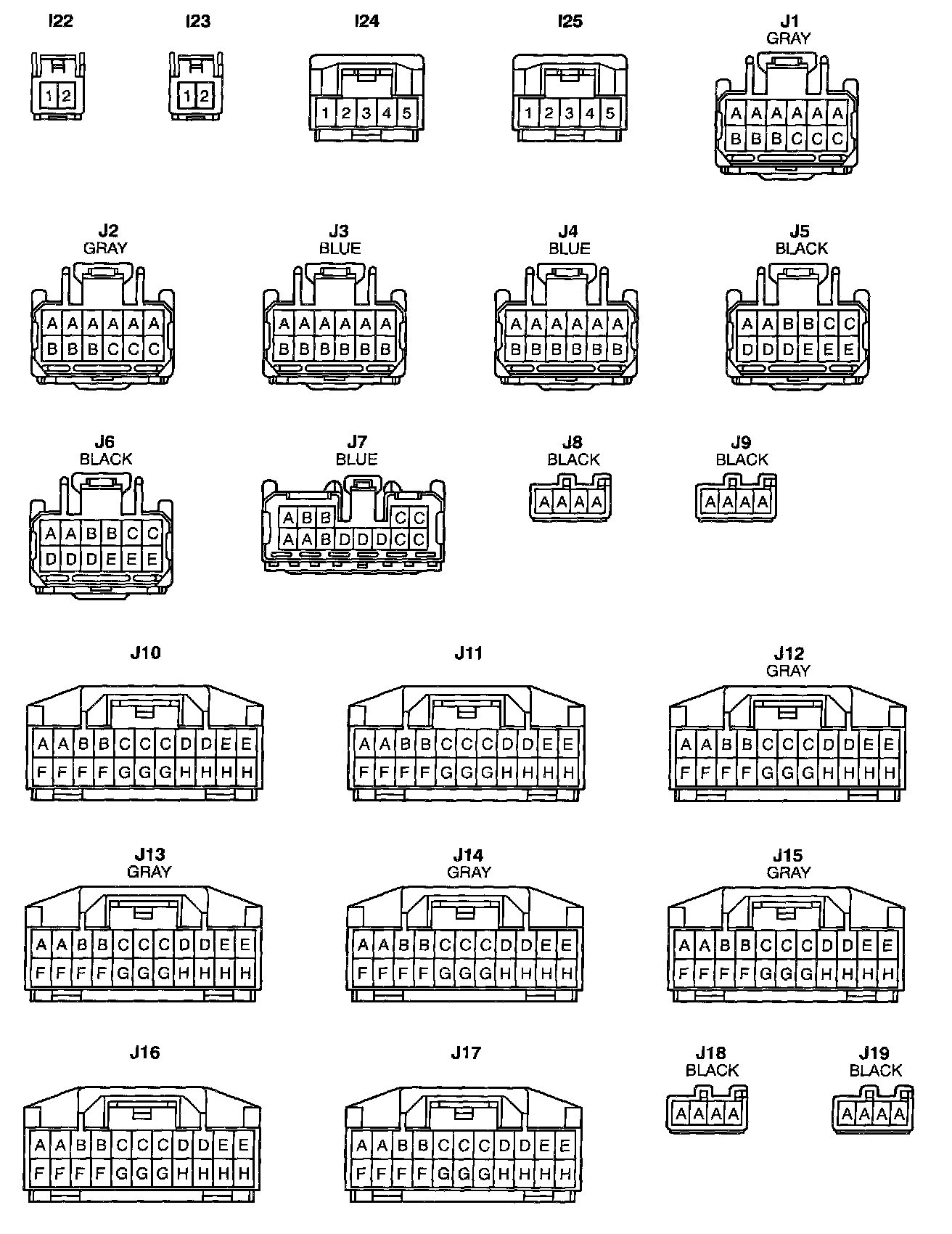

Connector View I22 - J19:

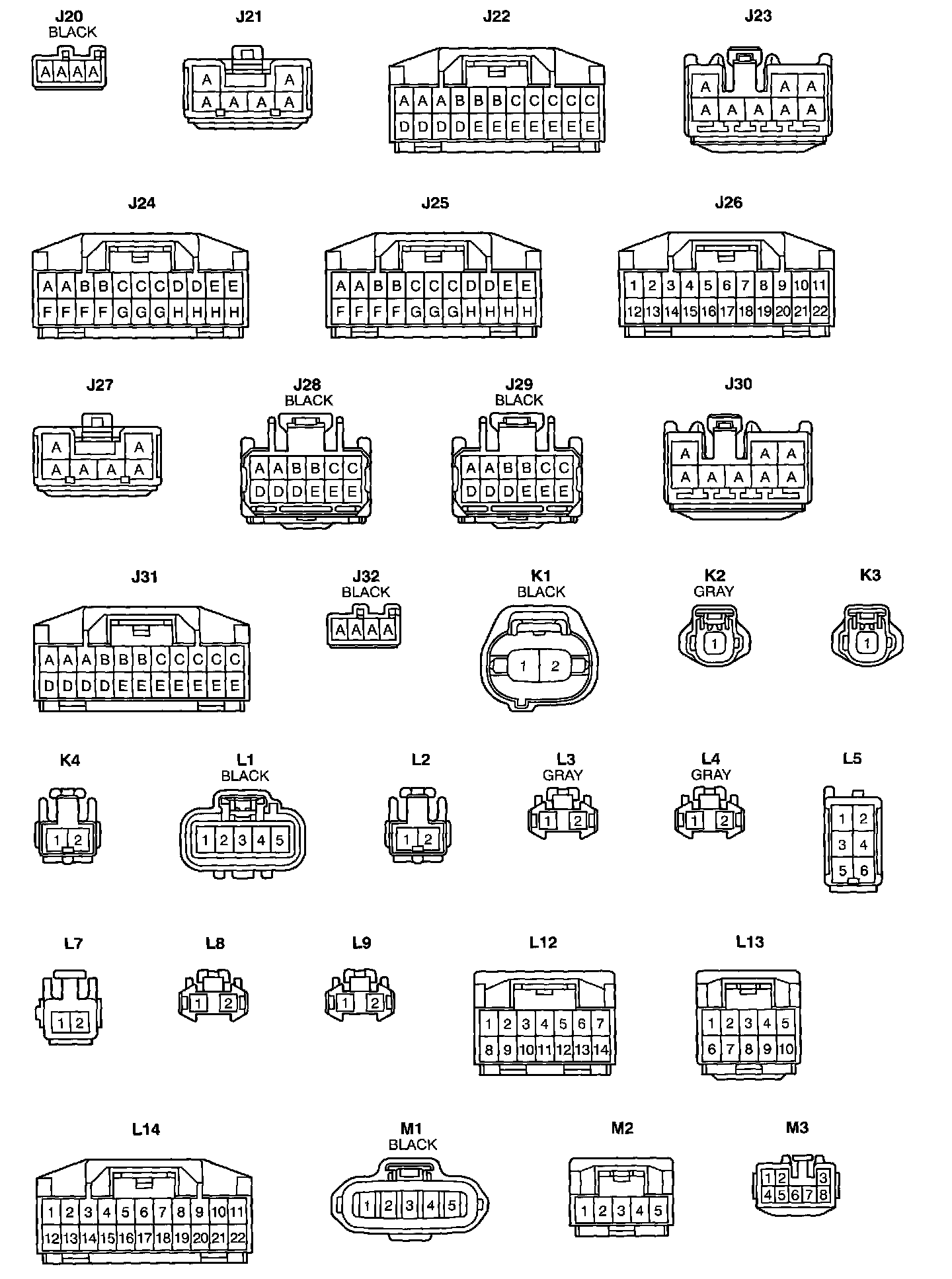

Connector View J20 - M3:

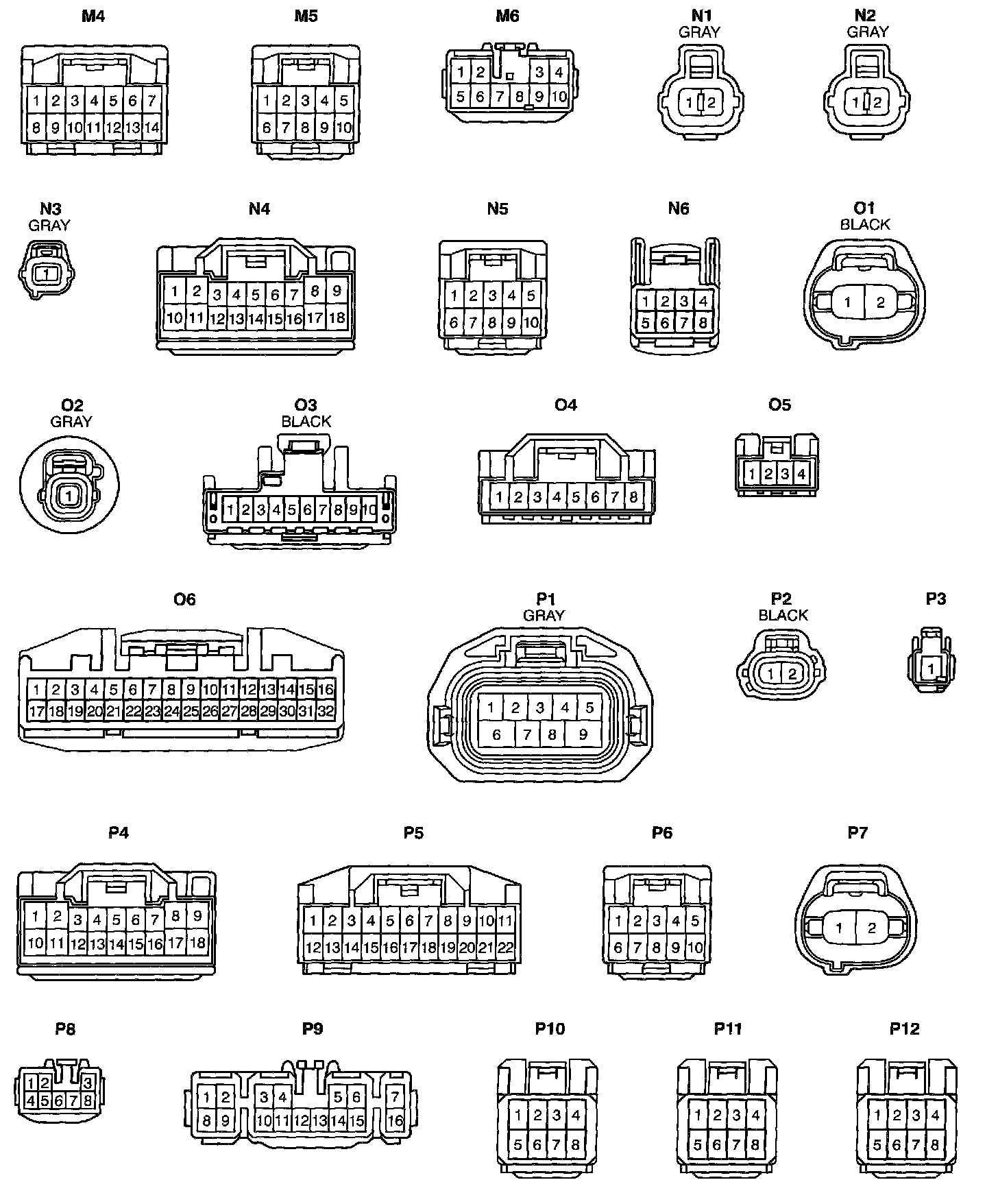

Connector View M4 - P12:

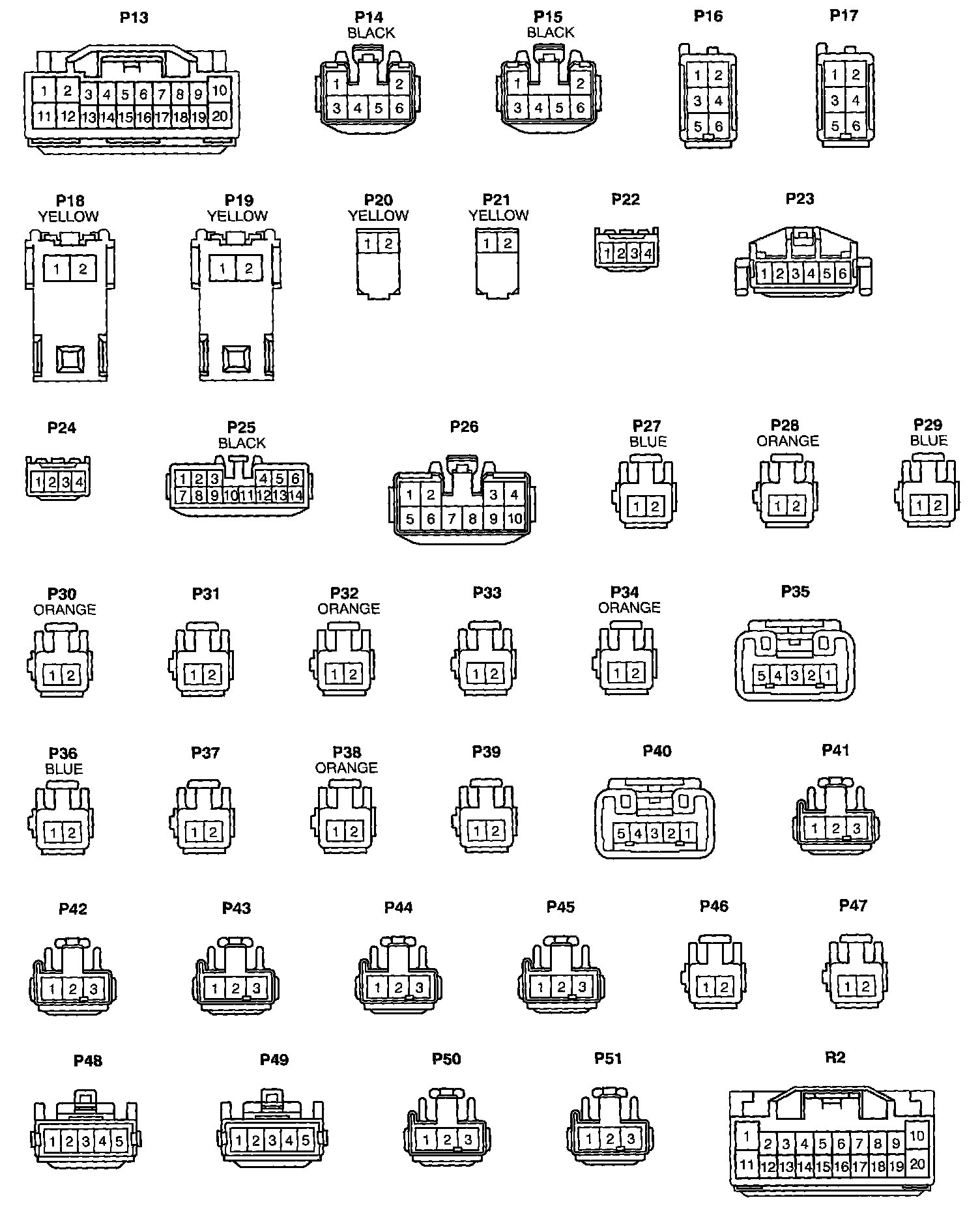

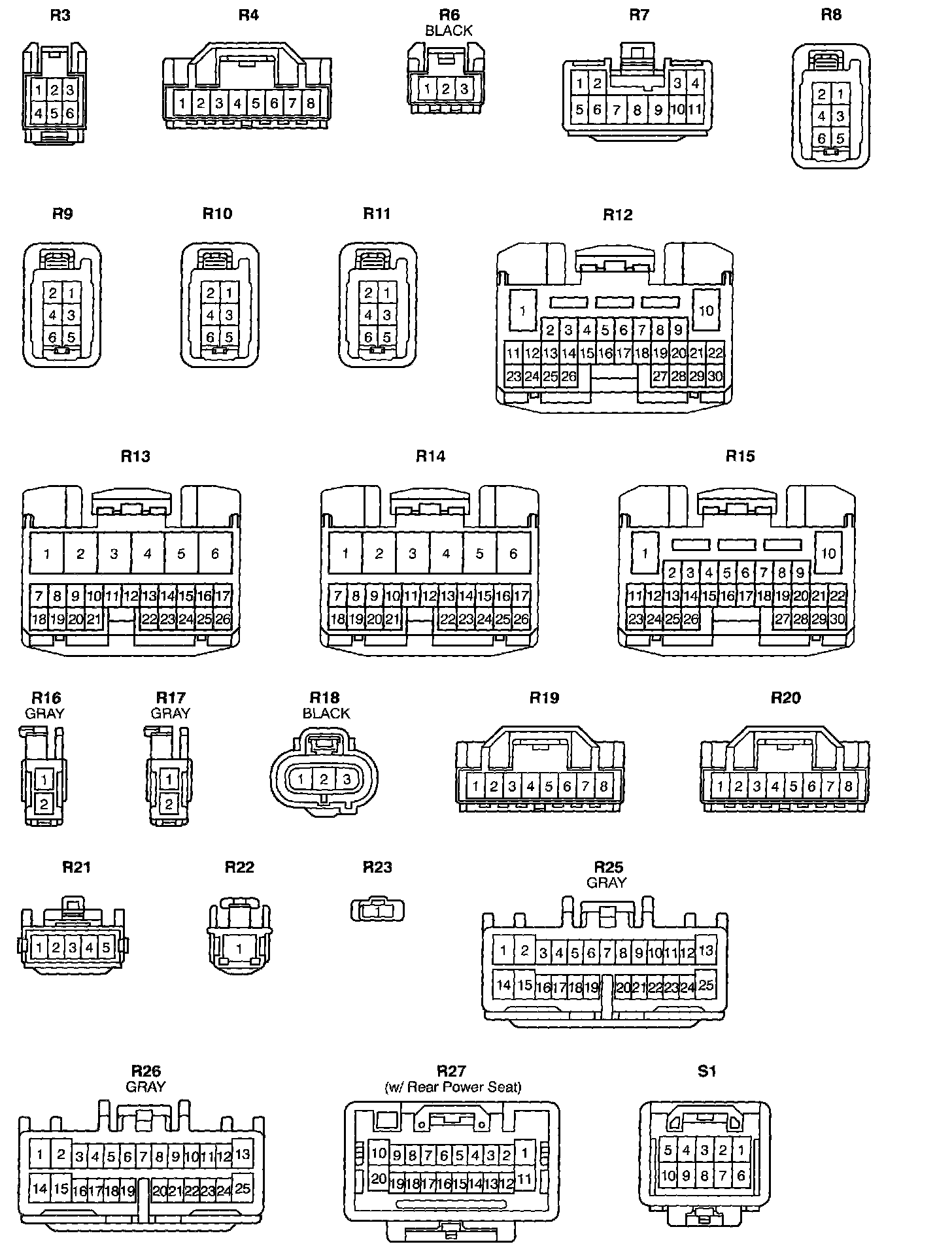

Connector View P13 - R2:



Connector View R3 - S1:

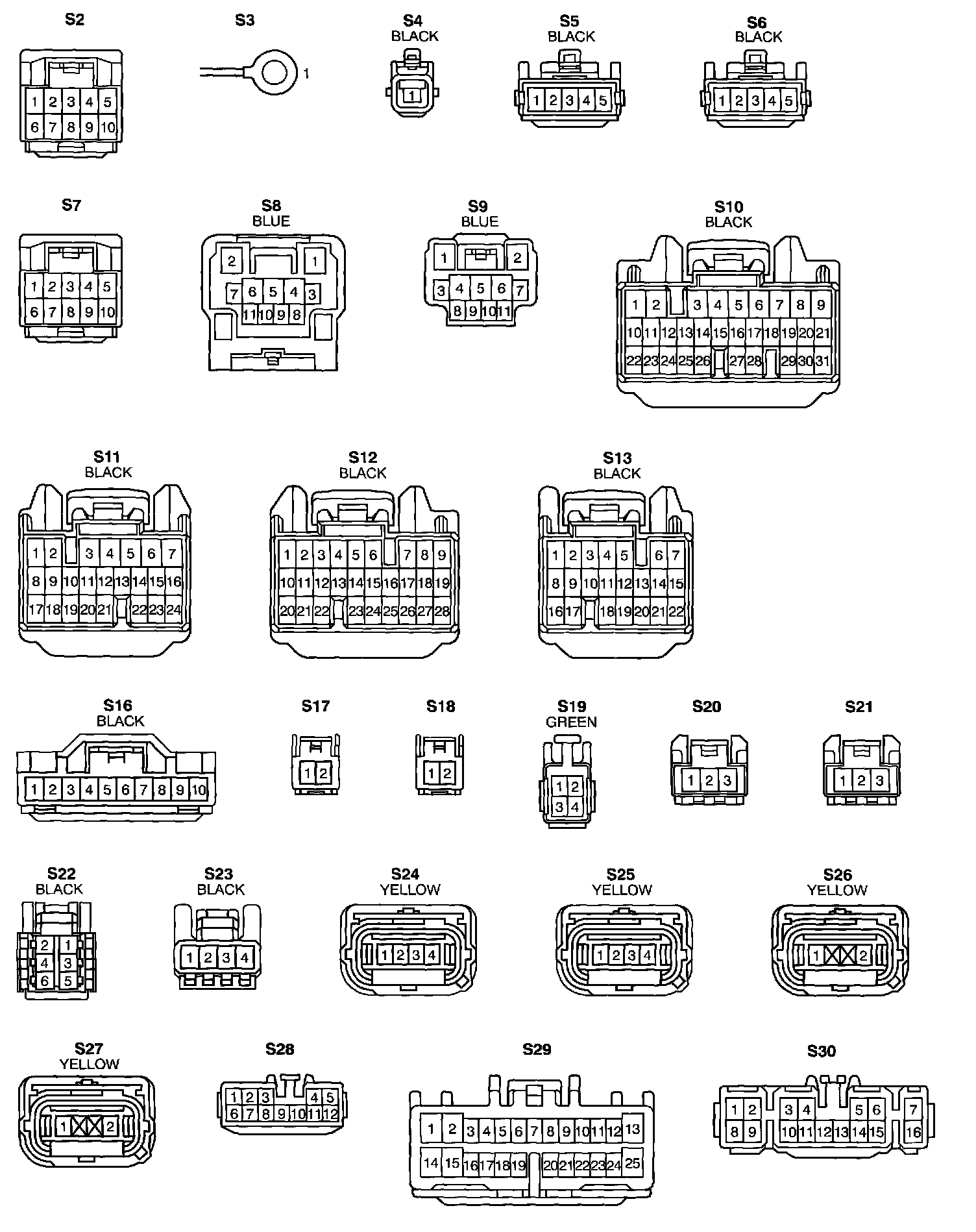

Connector View S2 - S30:

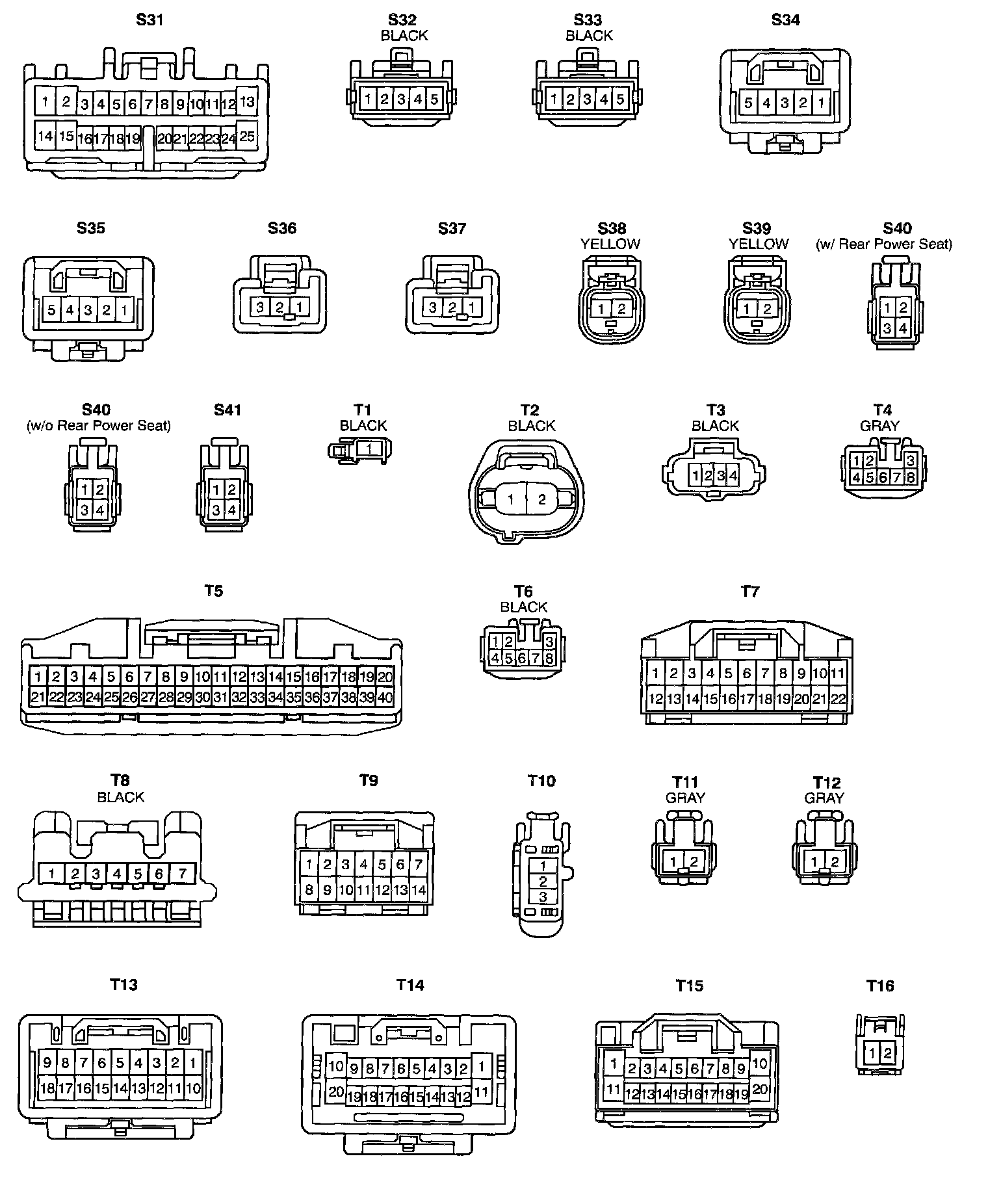

Connector View S31 - T16:

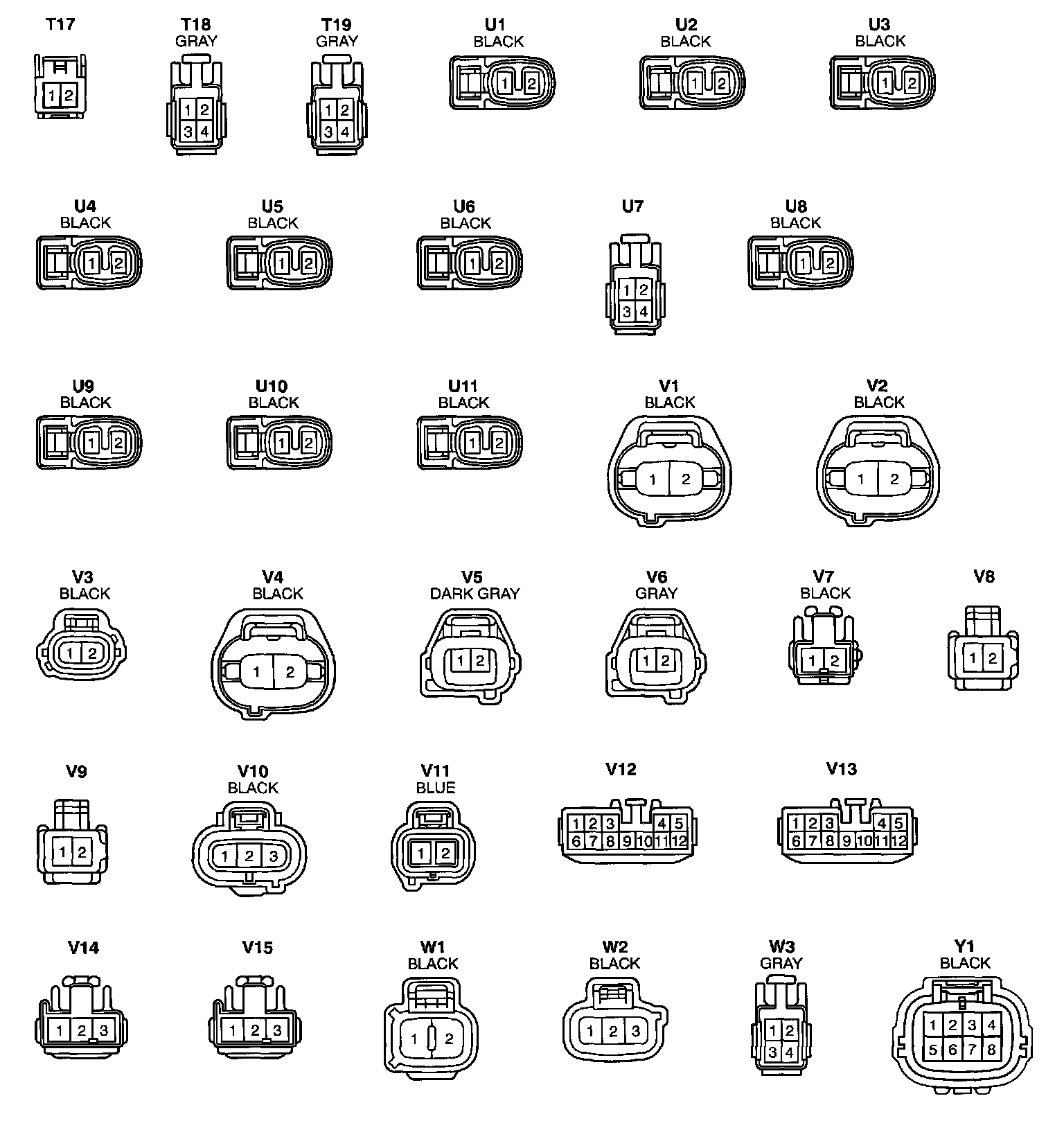

Connector View T17 - Y1:
