Navigation Module: Testing and Inspection

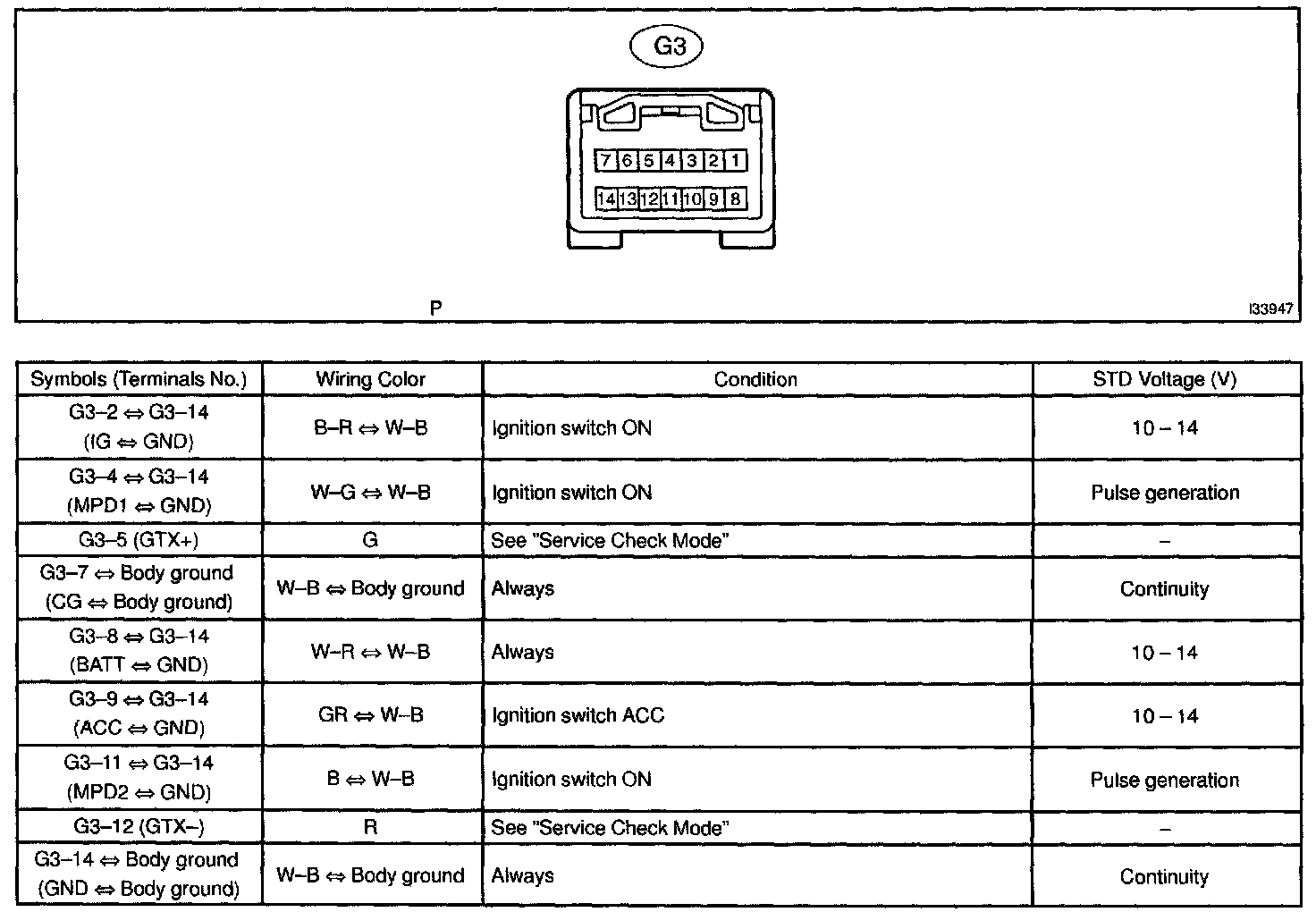

Terminals Of ECU/Pinouts - Navigation ECU:

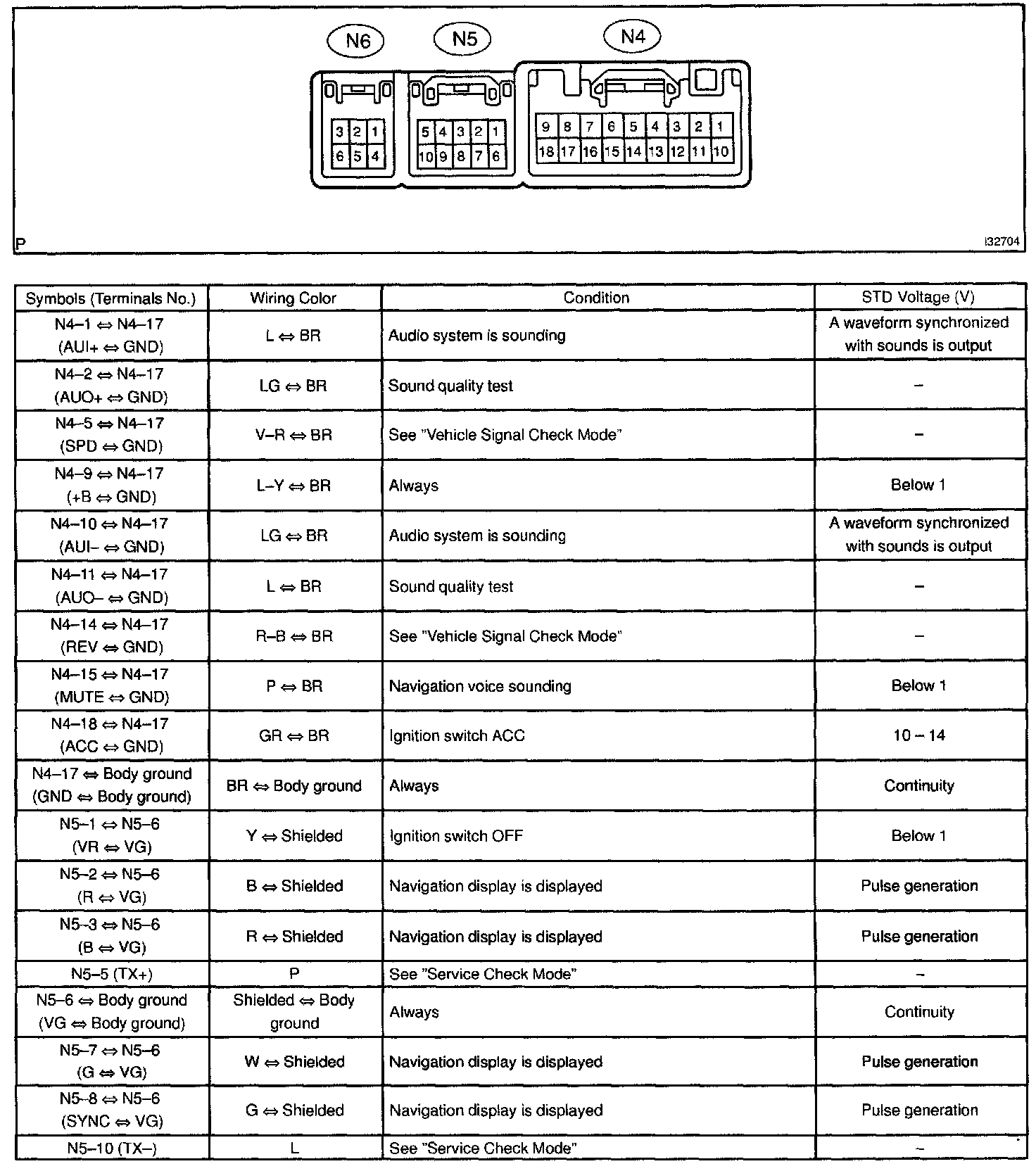

Terminals Of ECU/Pinouts - Multi-display (CRT Display):

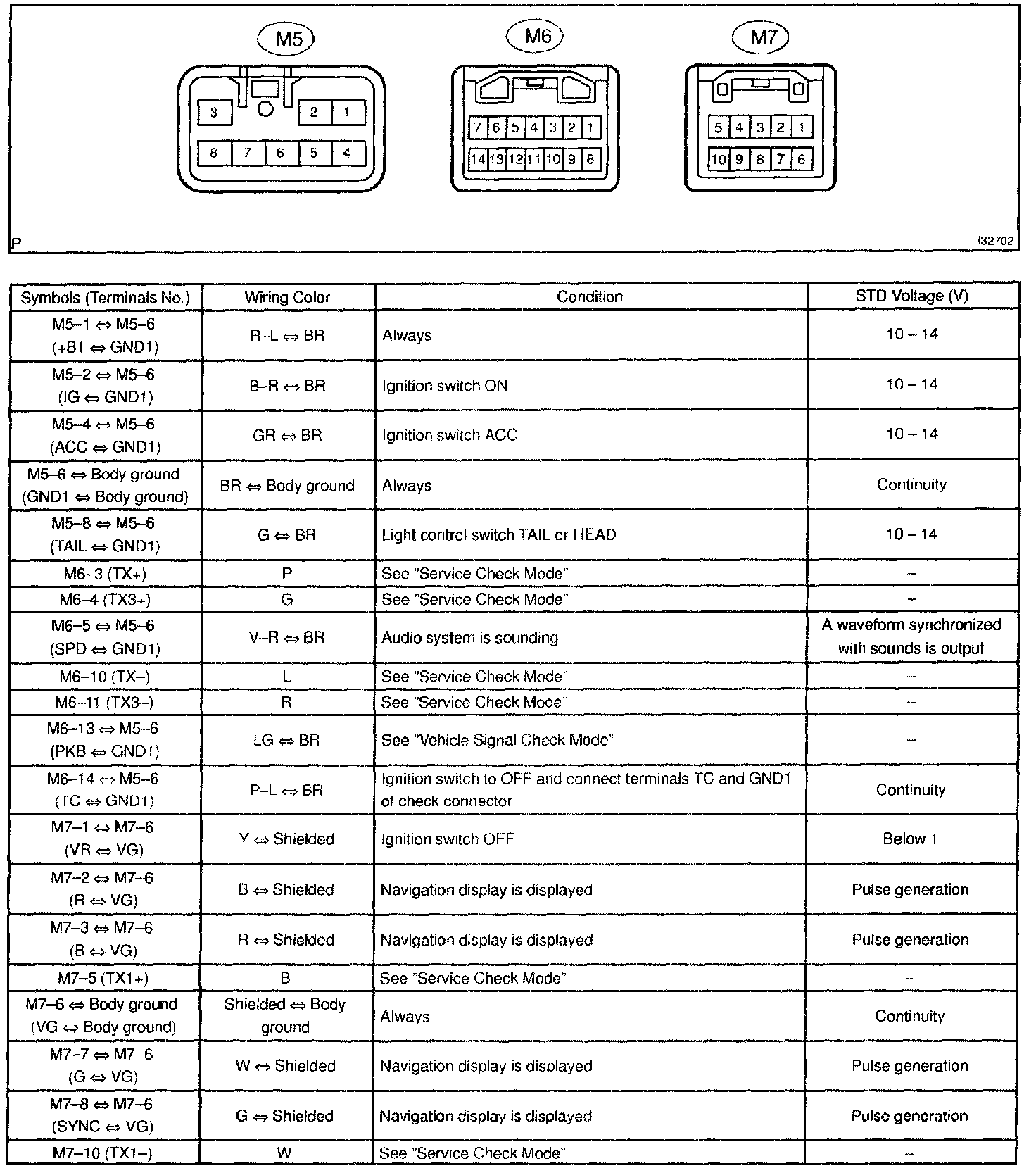

Terminals Of ECU/Pinouts - Network Gateway ECU:
