Pinout Values and Diagnostic Parameters

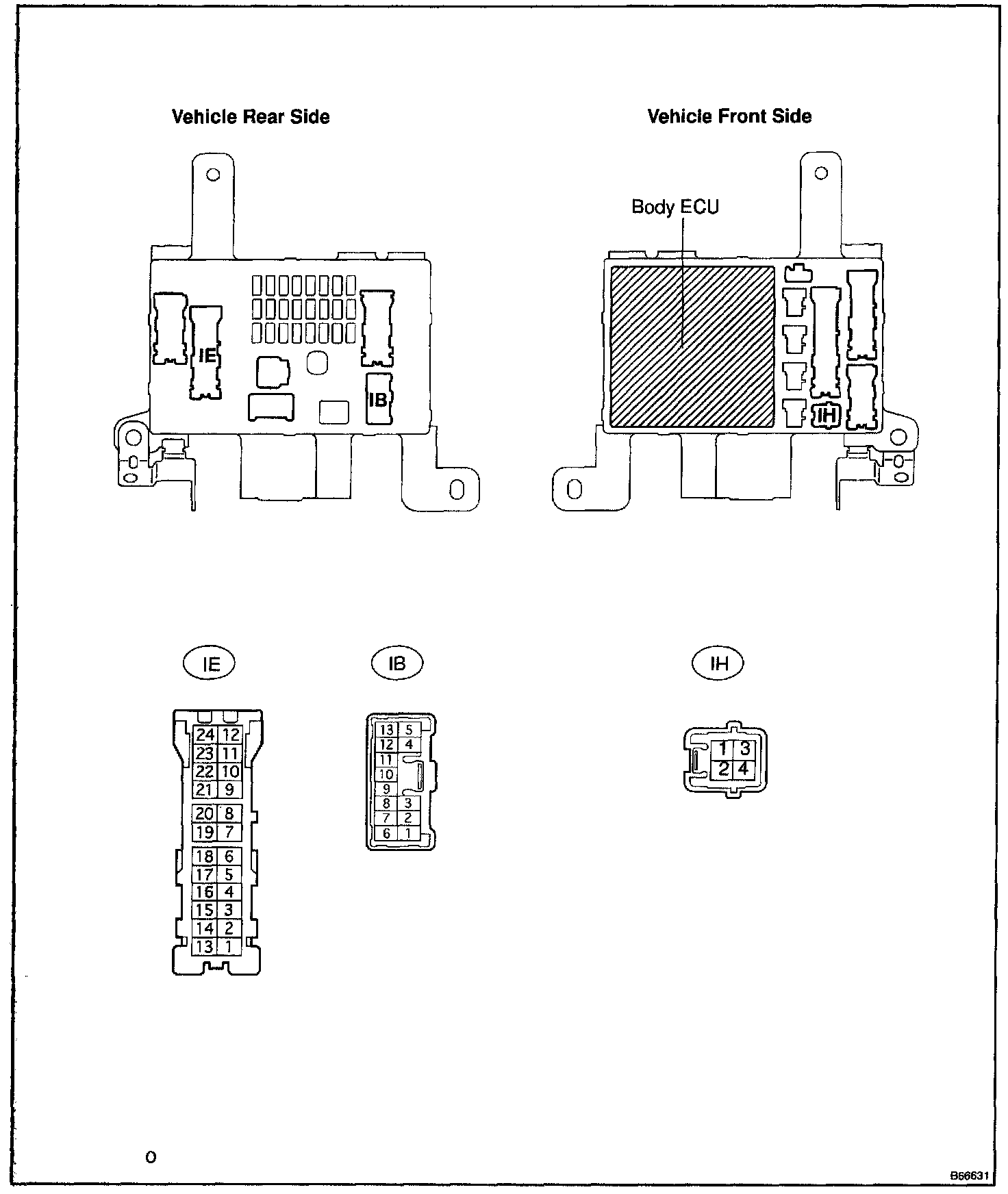

TERMINALS OF ECU1. CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSY (BODY ECU)
Terminal Of ECU/Pinouts:
a. Disconnect the IB, IE and IH J/B connectors.
b. Check the voltage or continuity of each terminal of the wire harness side connectors.

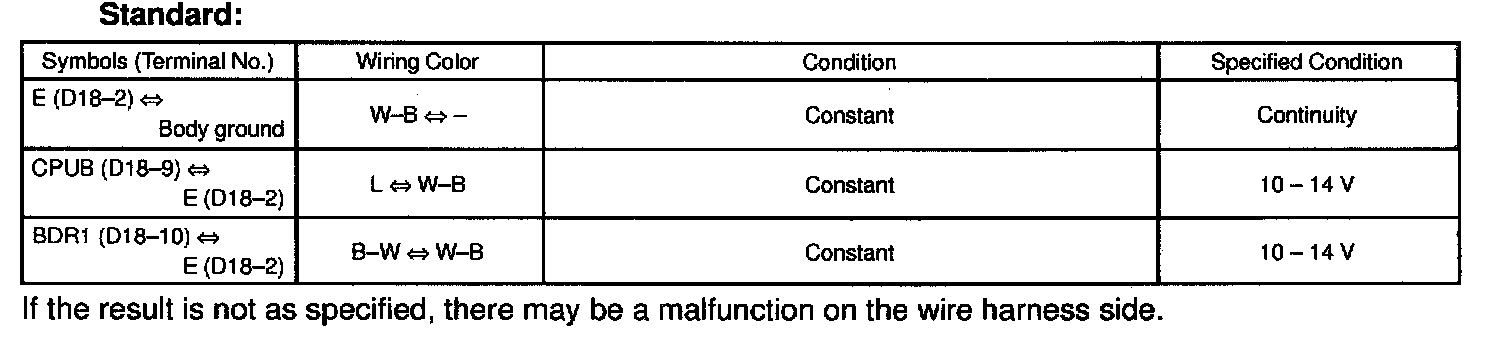

2. CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSY (DRIVER DOOR ECU)
a. Disconnect the D18 switch connector.
b. Check the voltage or continuity of each terminal of the wire harness side connector.

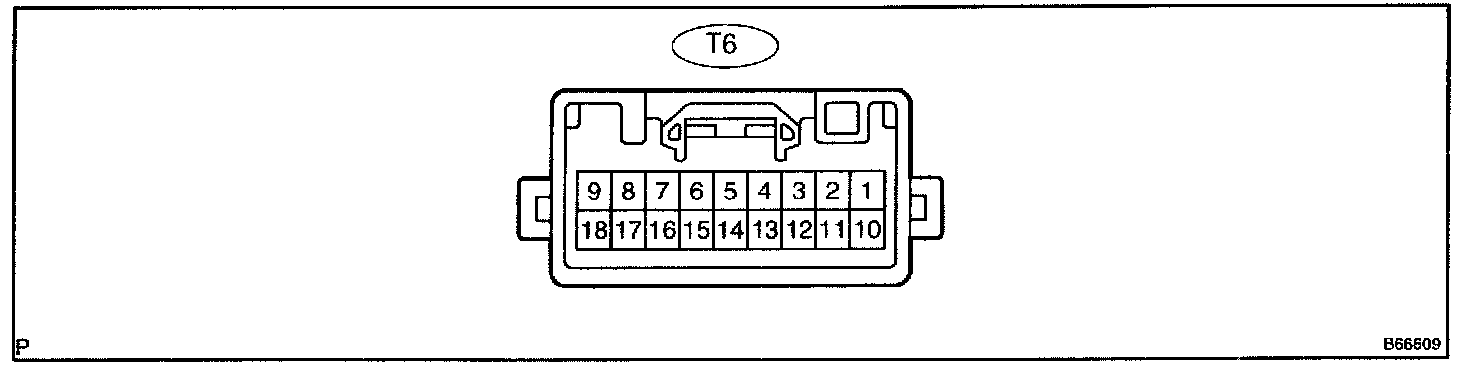

3. CHECK MULTIPLEX TILT & TELESCOPIC ECU (TILT & TELESCOPIC ECU)
a. Disconnect the T6 ECU connector.

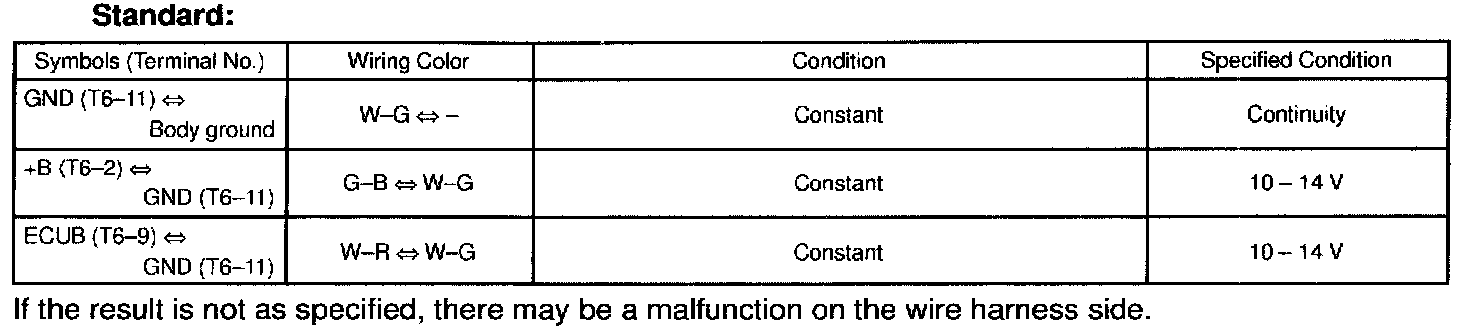

b. Check the voltage or continuity of each terminal of the wire harness side connector.

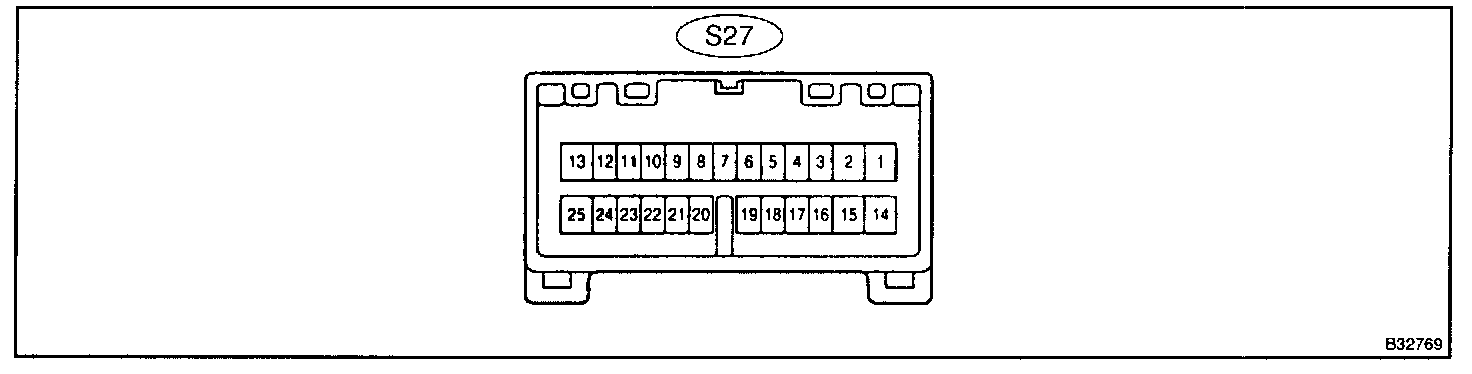

4. CHECK MULTIPLEX NETWORK BODY ECU NO.2 (BODY NO.2 ECU)
a. Disconnect the S27 ECU connector.

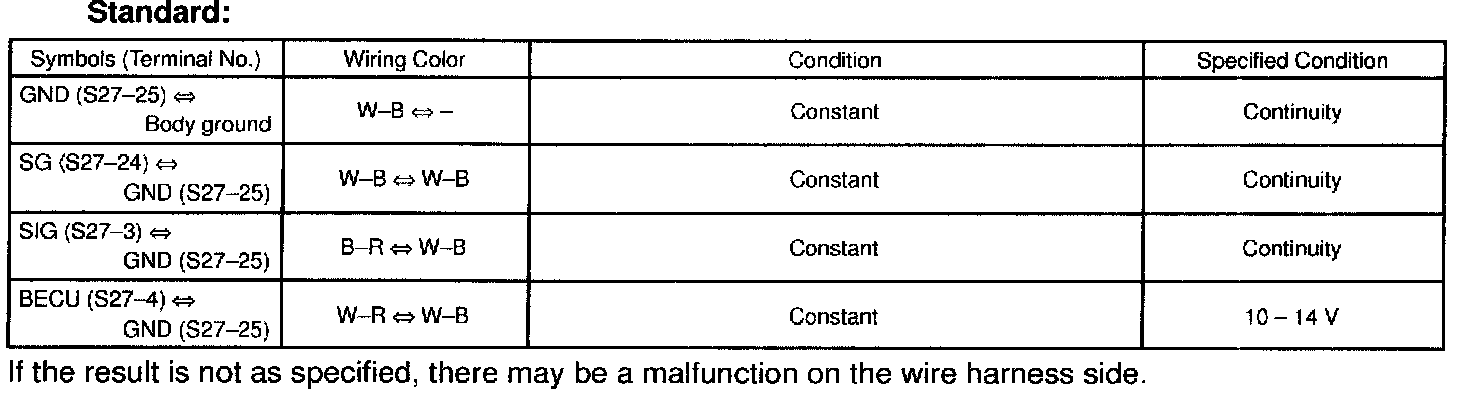

b. Check the voltage or continuity of each terminal of the wire harness side connector.

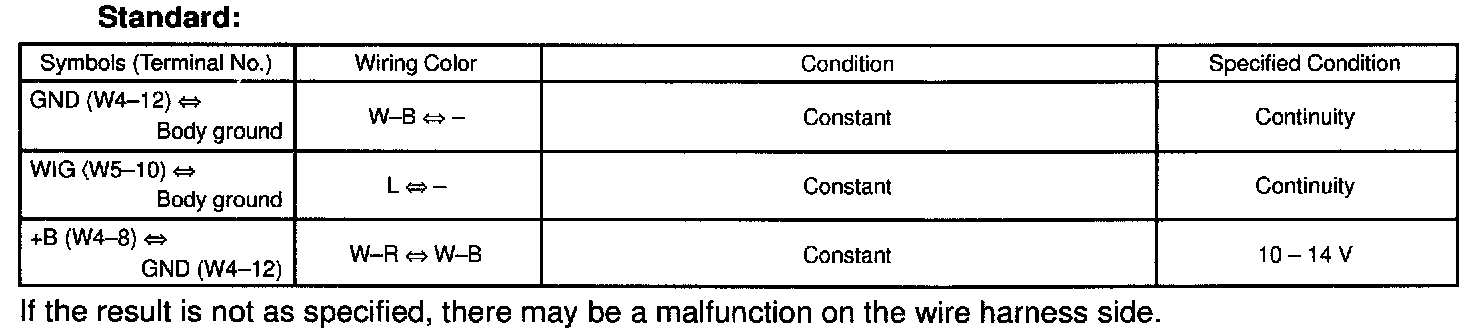

5. CHECK WINDSHIELD WIPER ECU (WIPER ECU)

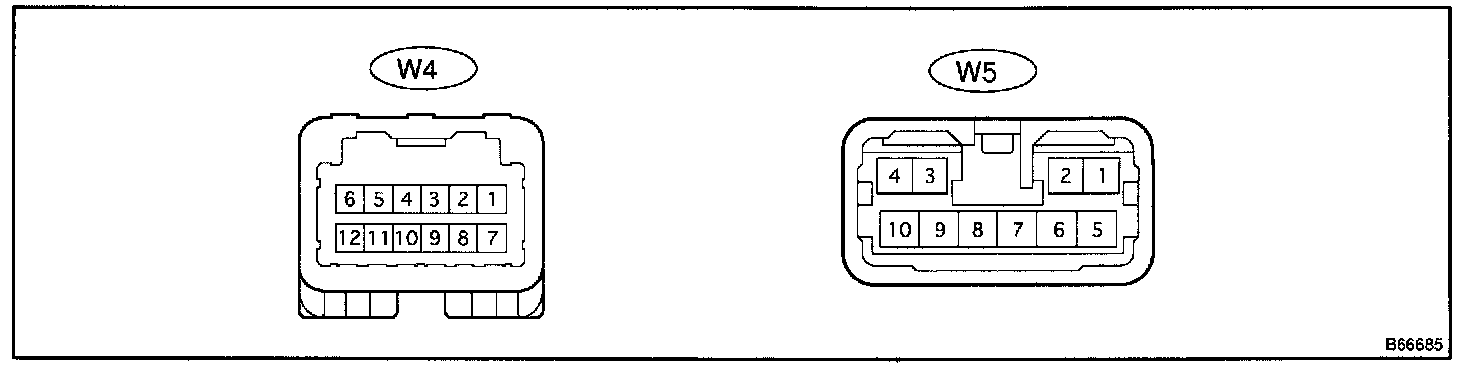

a. Disconnect the W4 and W5 ECU connectors.
b. Check the voltage or continuity of each terminal of the wire harness side connectors.

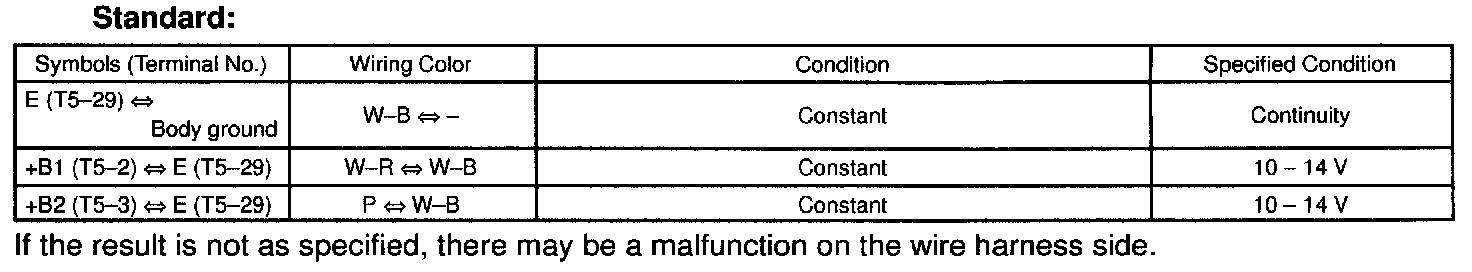

6. CHECK THEFT WARNING ECU ASSY (THEFT DETERRENT ECU)
a. Disconnect the T5 ECU connector.
b. Check the voltage or continuity of each terminal of the wire harness side connector.
7. CHECK POSITION CONTROL ECU & WIRING ASSY (POWER SEAT ECU)

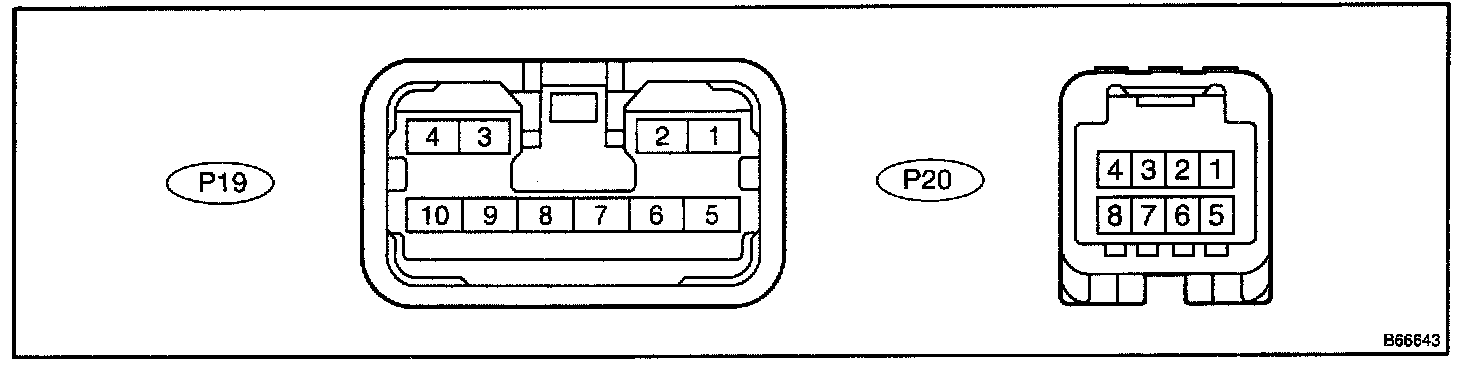

a. Disconnect the P19 and P20 ECU connectors.

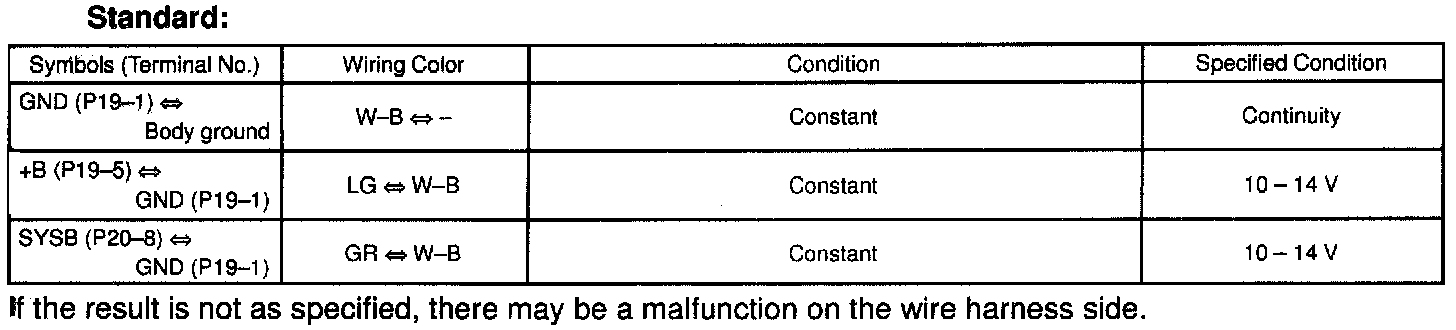

b. Check the voltage or continuity of each terminal of the wire harness side connectors.

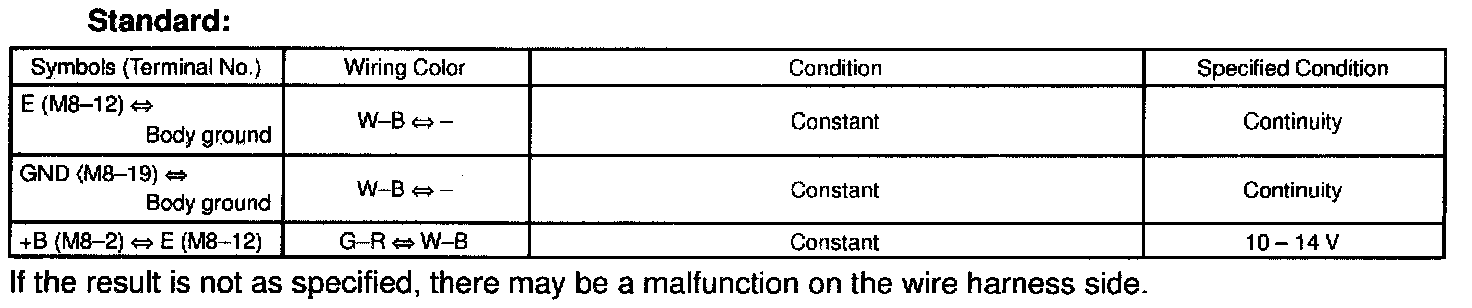

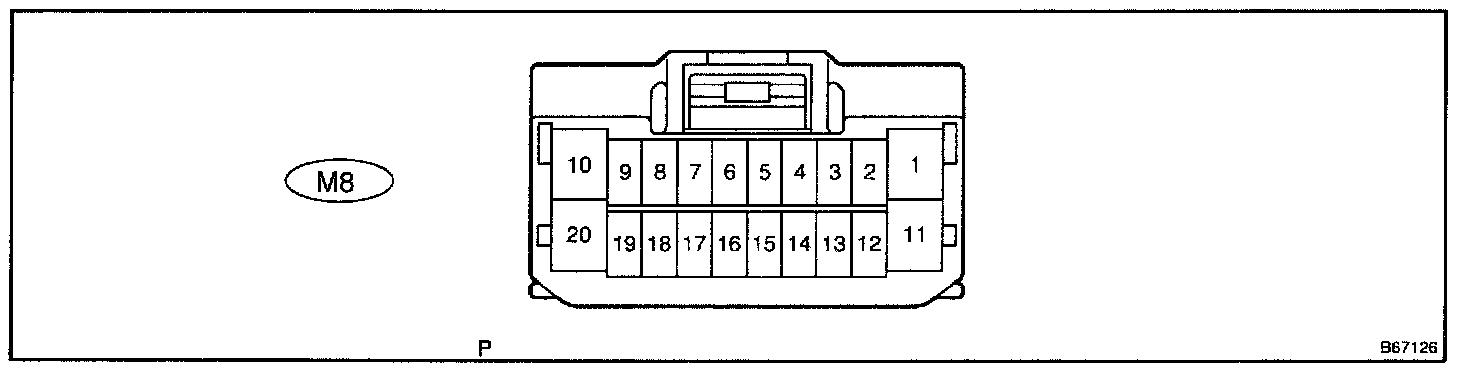

8. CHECK MAYDAY ASSY
a. Disconnect the M8 ECU connector.
b. Check the voltage or continuity of each terminal of the wire harness side connector.

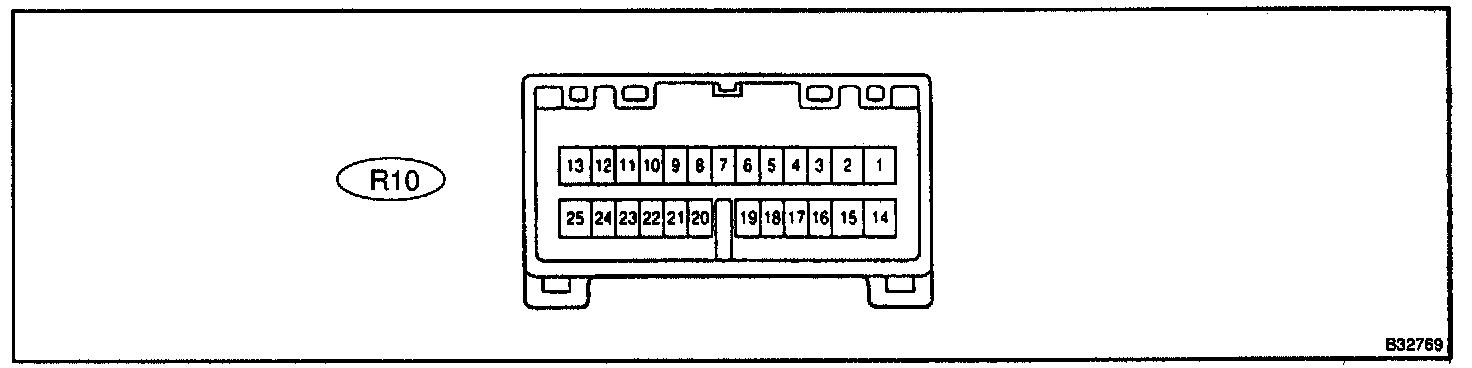

9. CHECK OUTER MIRROR CONTROL ECU ASSY (MIRROR ECU)
a. Disconnect the R10 ECU connector.

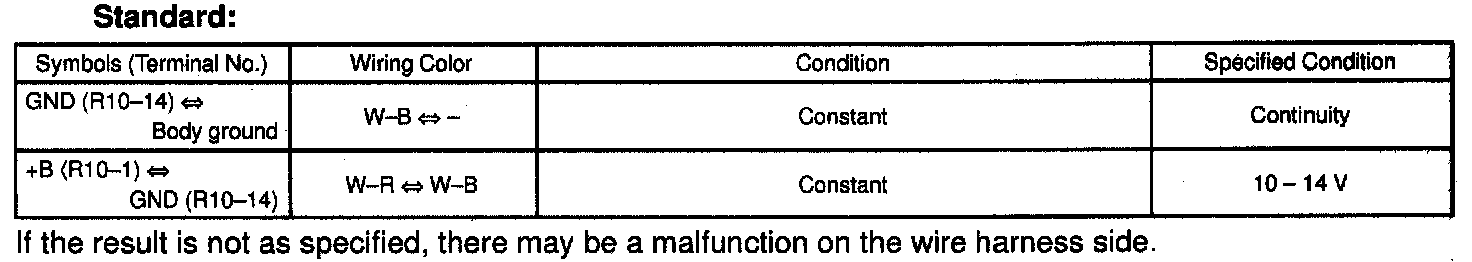

b. Check the voltage or continuity of each terminal of the wire harness side connector.
10. CHECK RAIN SENSOR

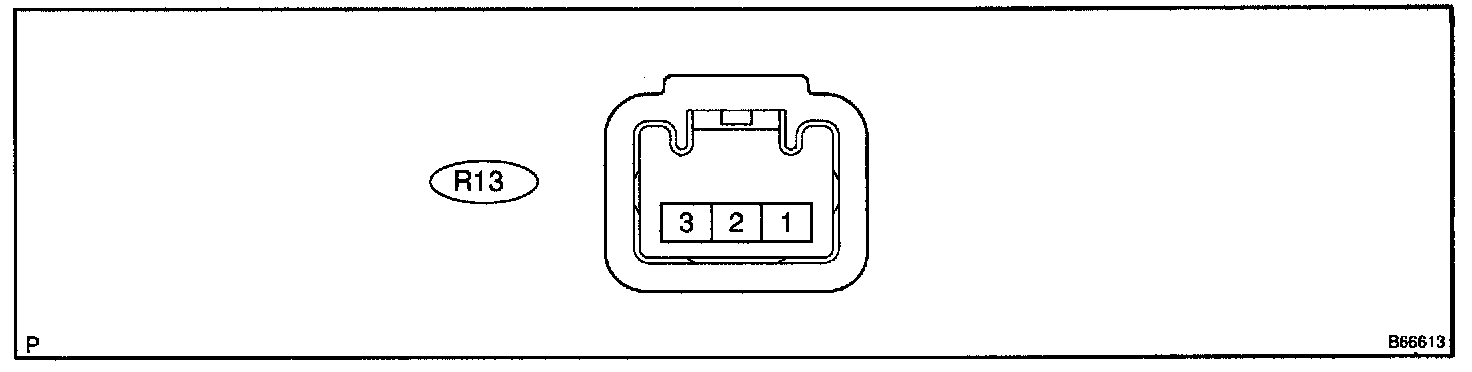

a. Disconnect the R13 ECU connector.

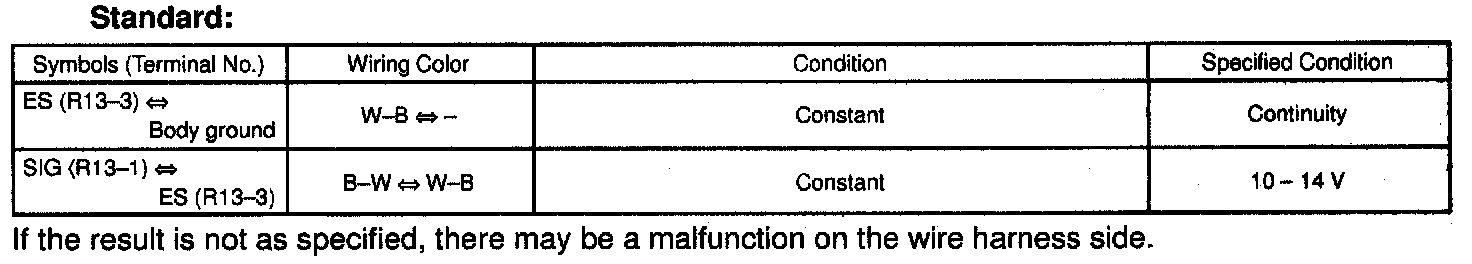

b. Check the voltage or continuity of each terminal of the wire harness side connector.

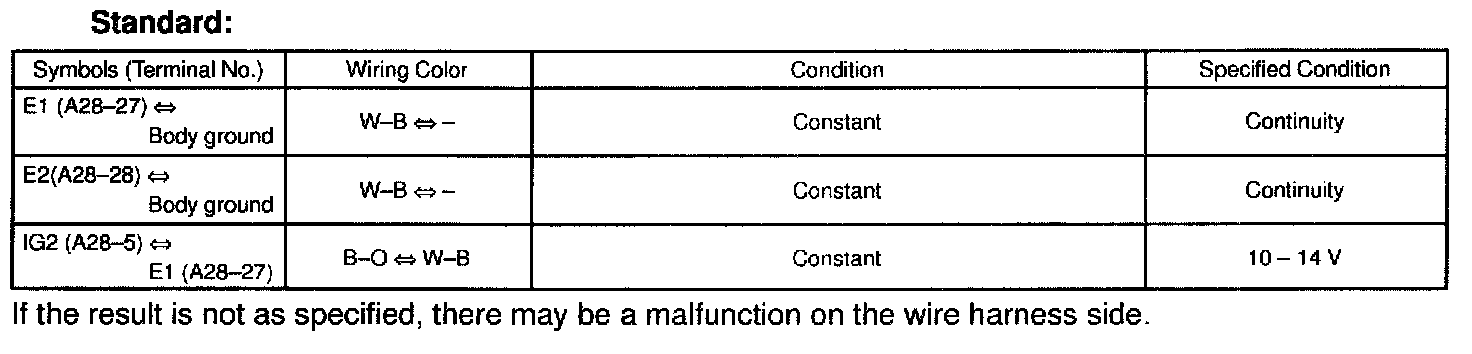

11. CHECK AIRBAG SENSOR ASSY CENTER (AIRBAG ECU)
a. Disconnect the A28 ECU connector.
b. Check the voltage or continuity of each terminal of the wire harness side connector.
