Power Window Switch: Locations

Lighting System:



Power Window Control System:



Power Door Lock Control System:



Wireless Door Lock Control System:



ABS - Dr:

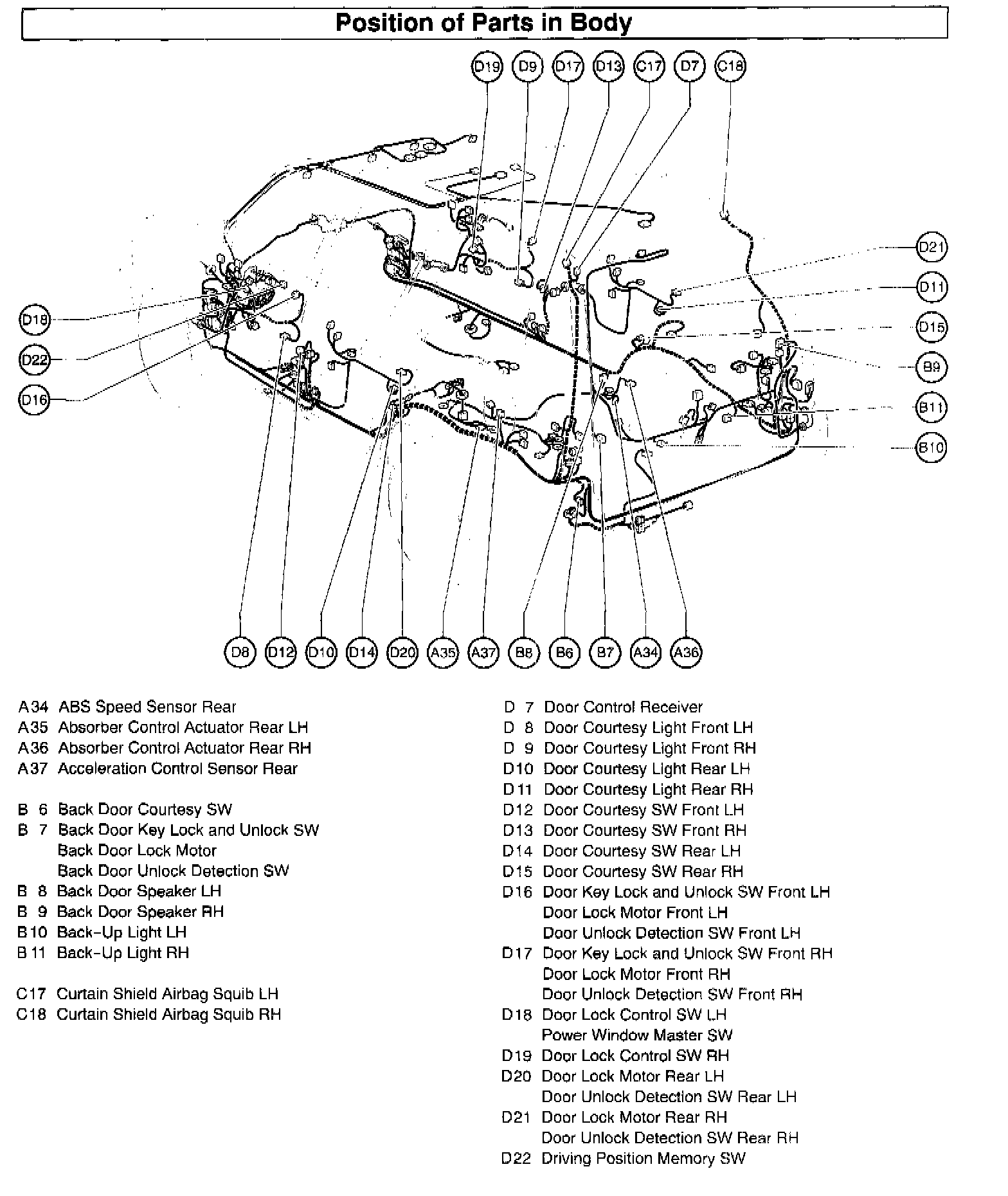

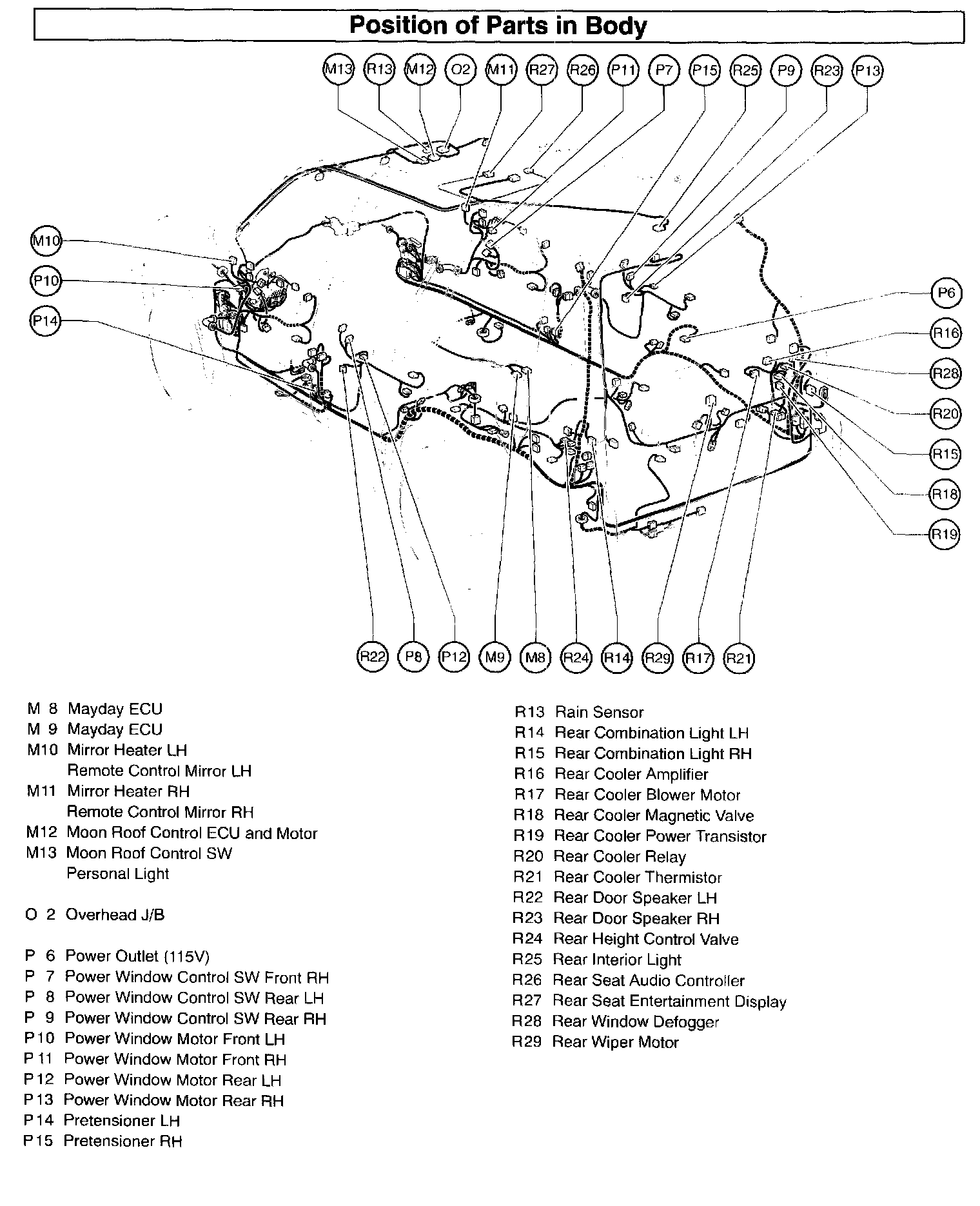

Component Location:
