Control Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION

This circuit carries the SET/COAST RESUME/ACCEL and CANCEL signal (each voltage) to the ECM.

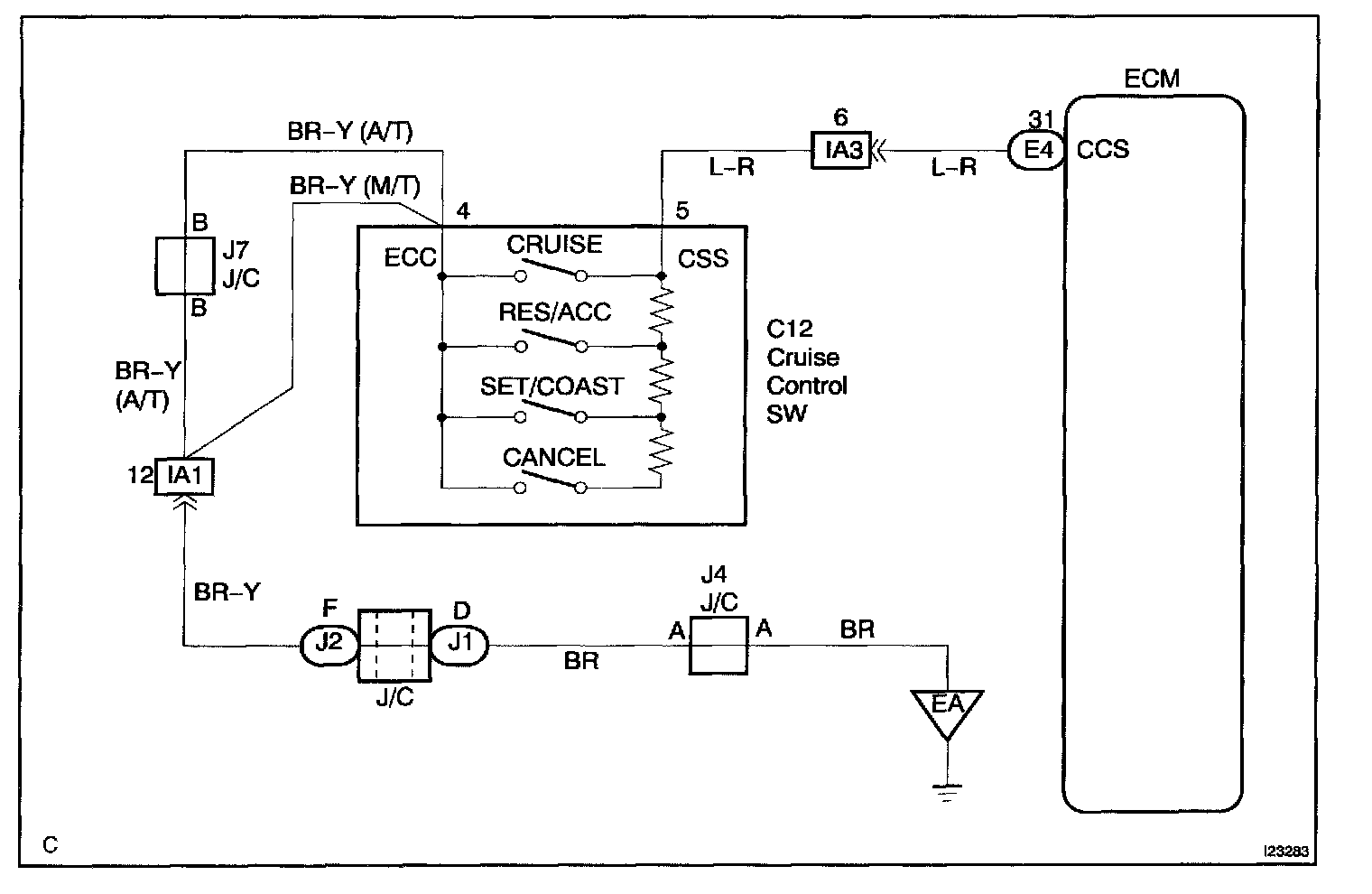

Wiring Diagram:

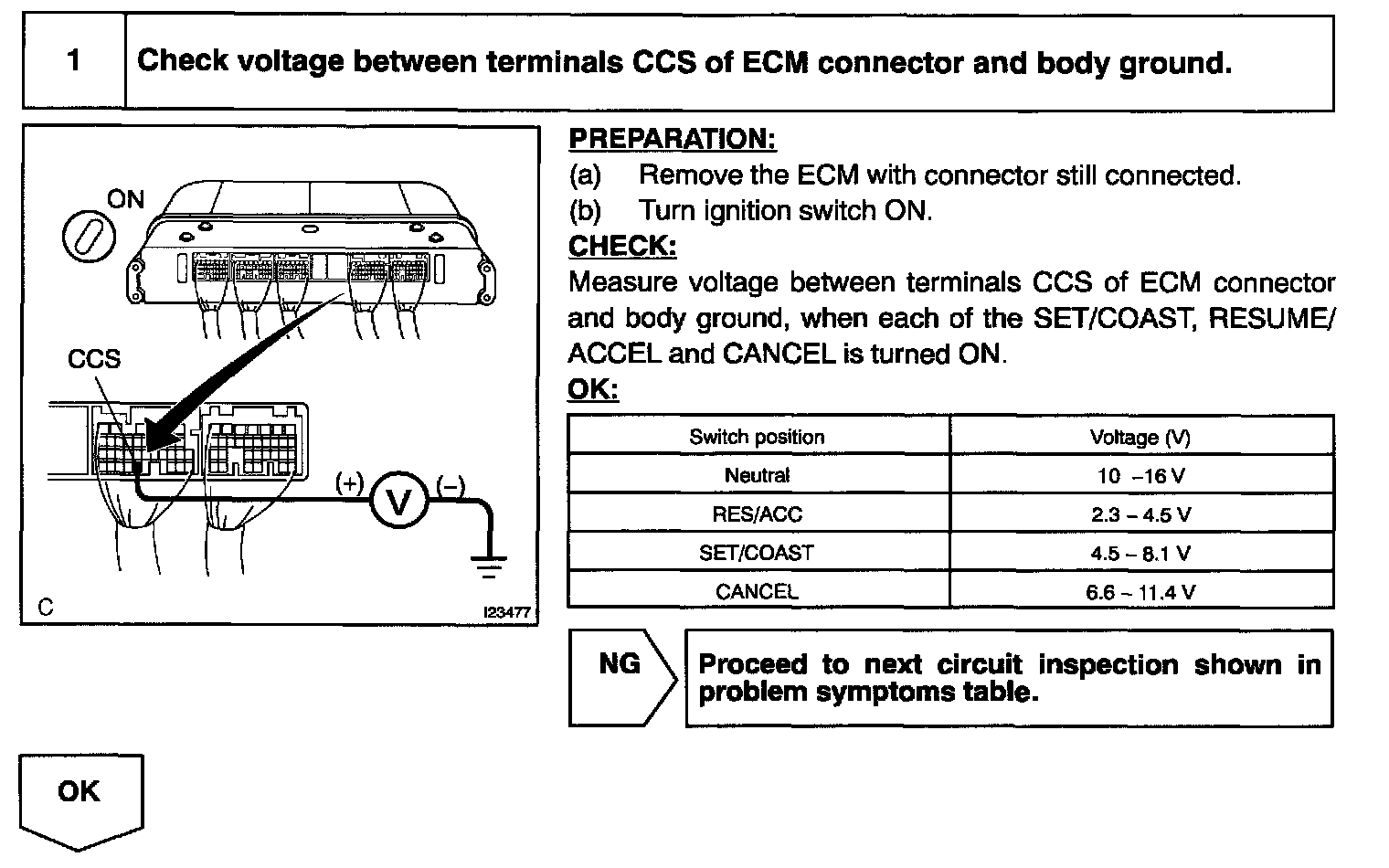

Step 1:

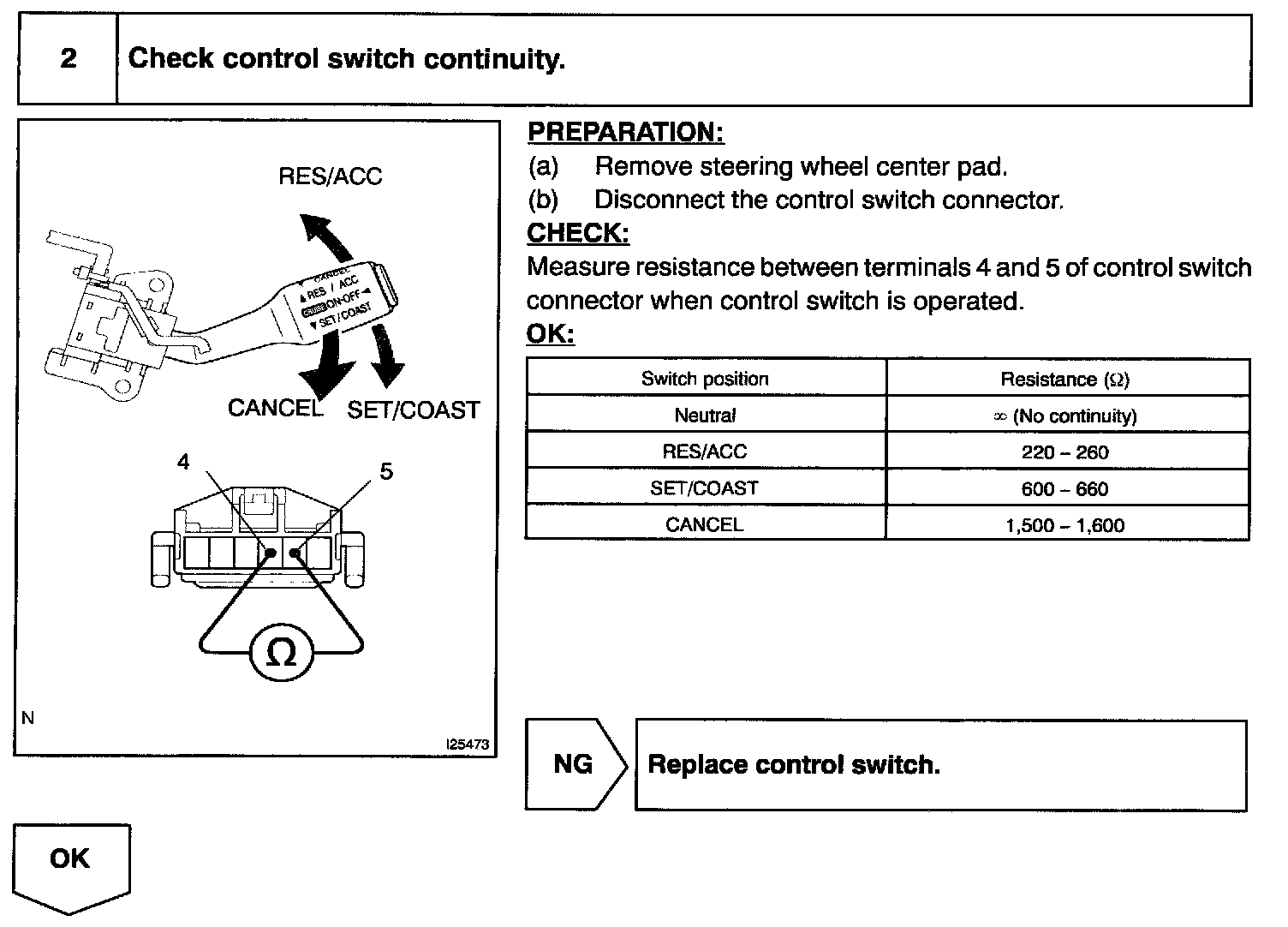

Step 2:

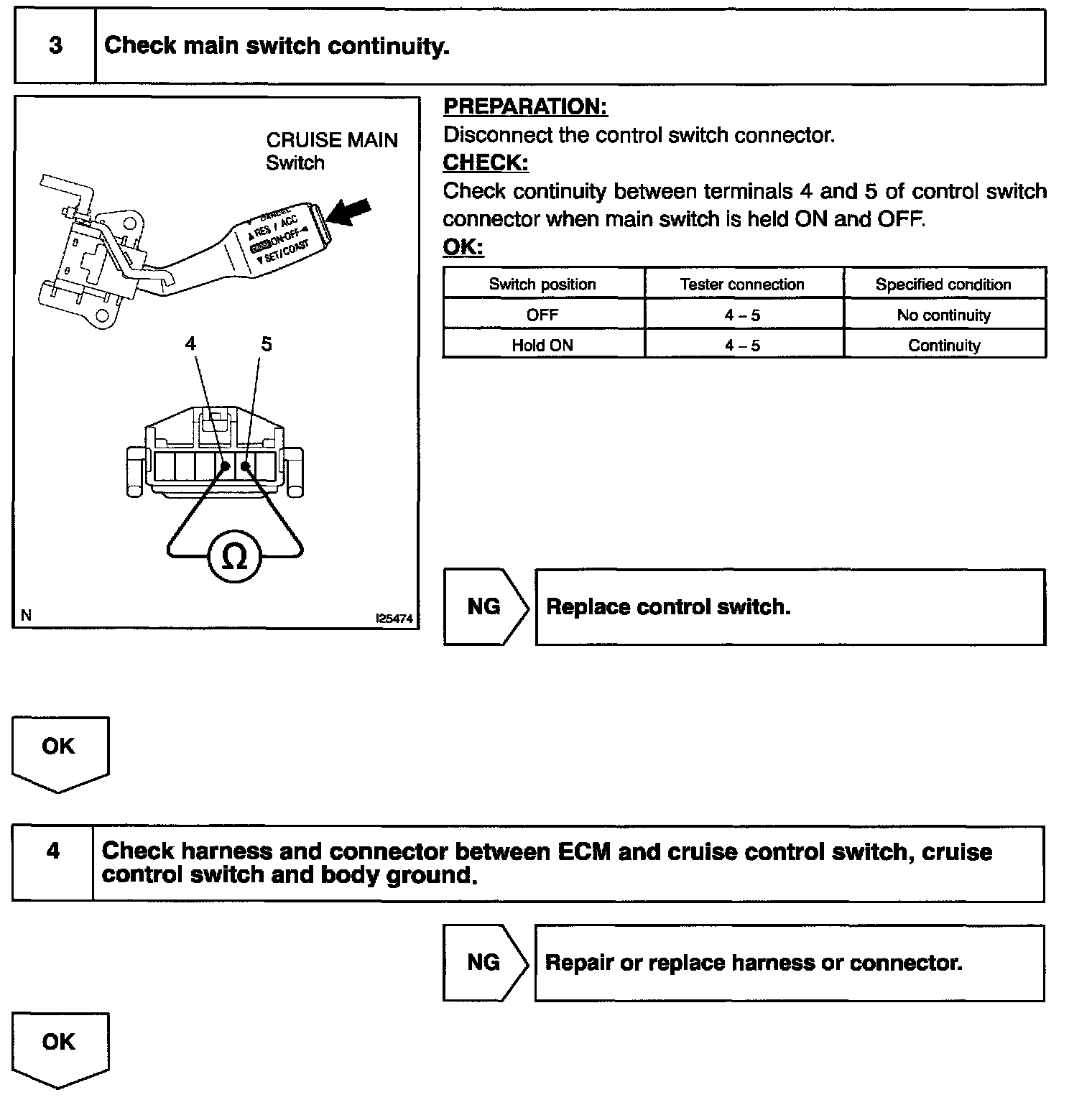

Step 3 - 4:




Step 5:




INSPECTION PROCEDURE
