Connector Locations

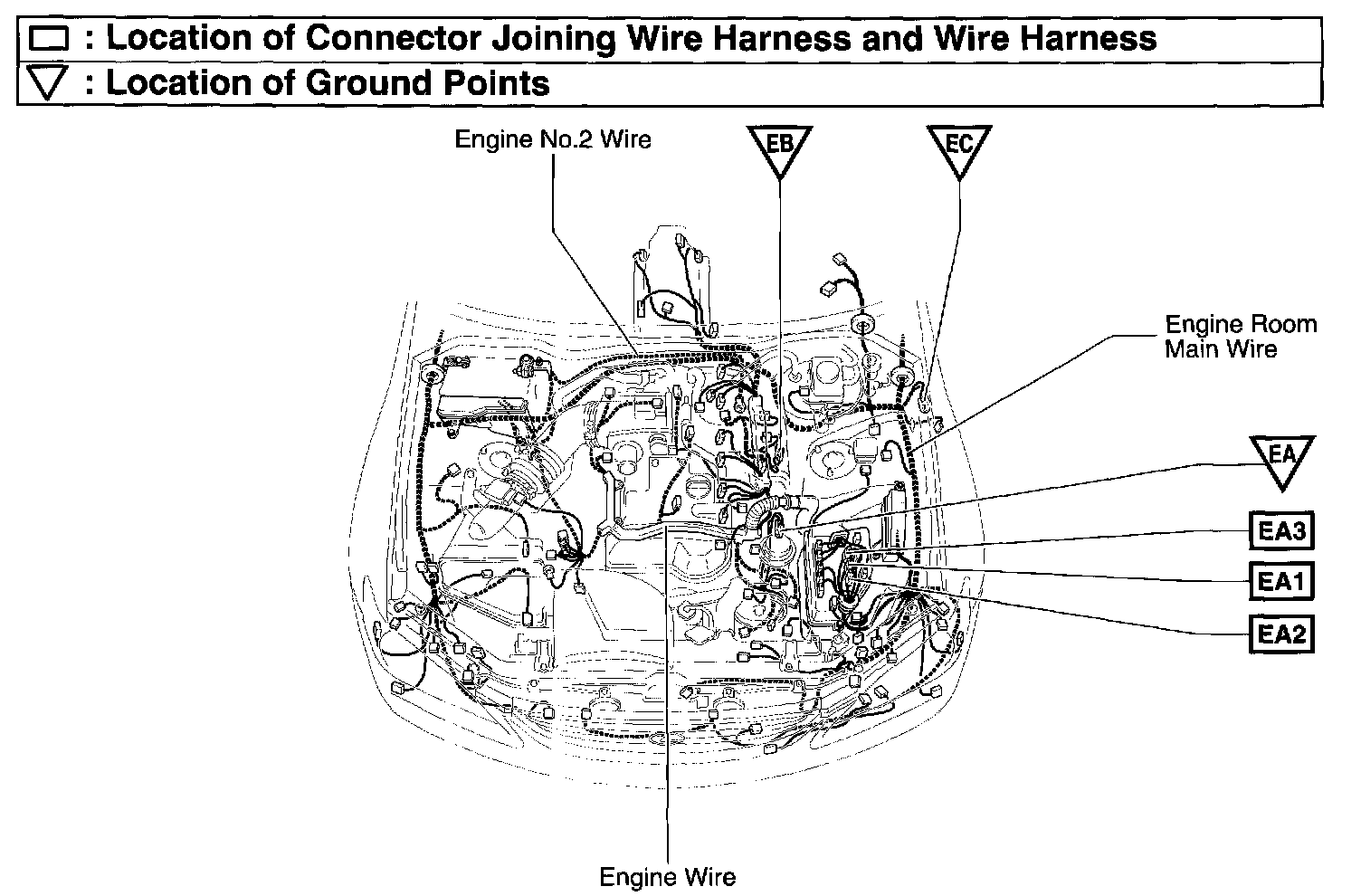

EA1 - EA3, EA - EC:

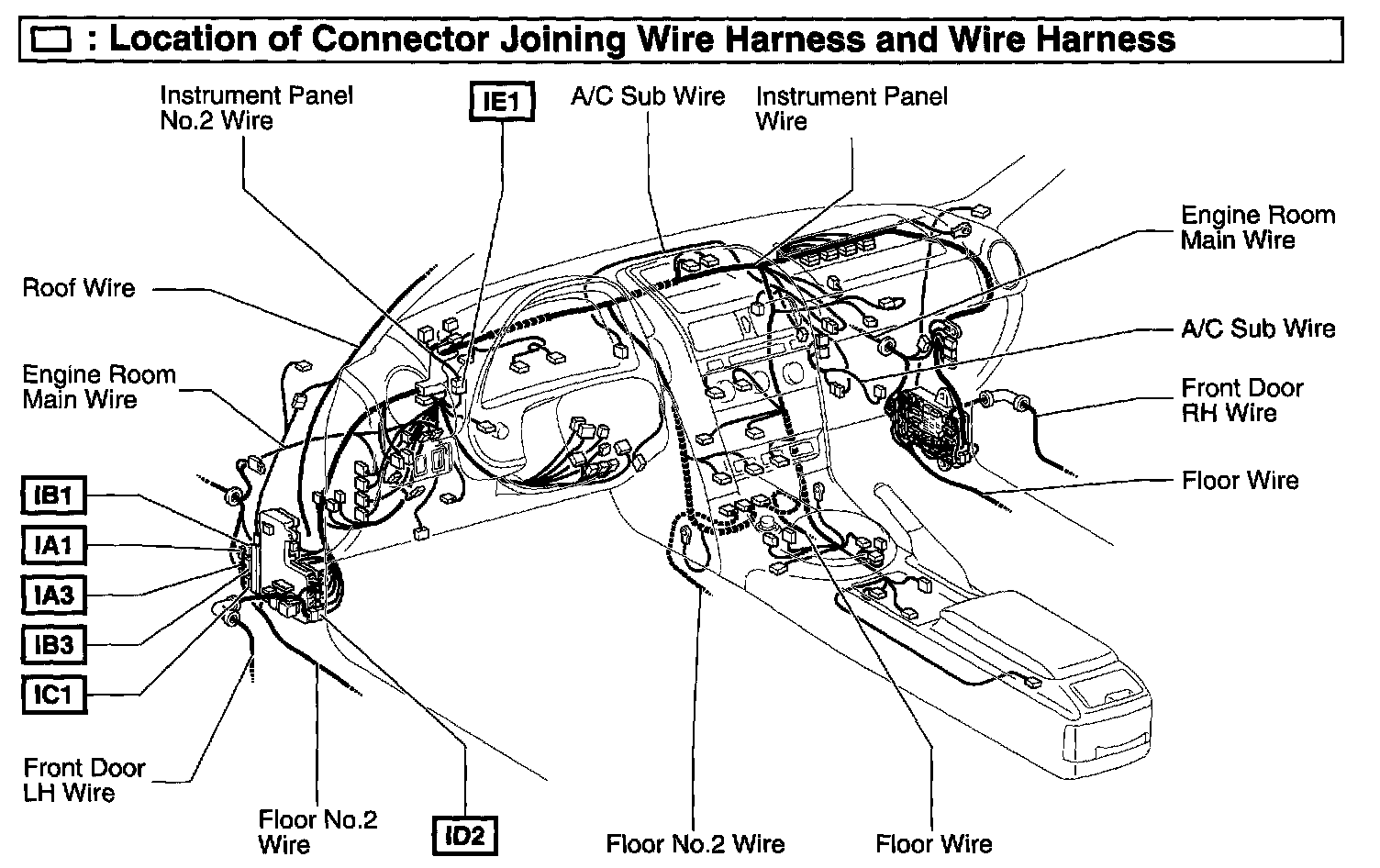

IA1 - IE1:

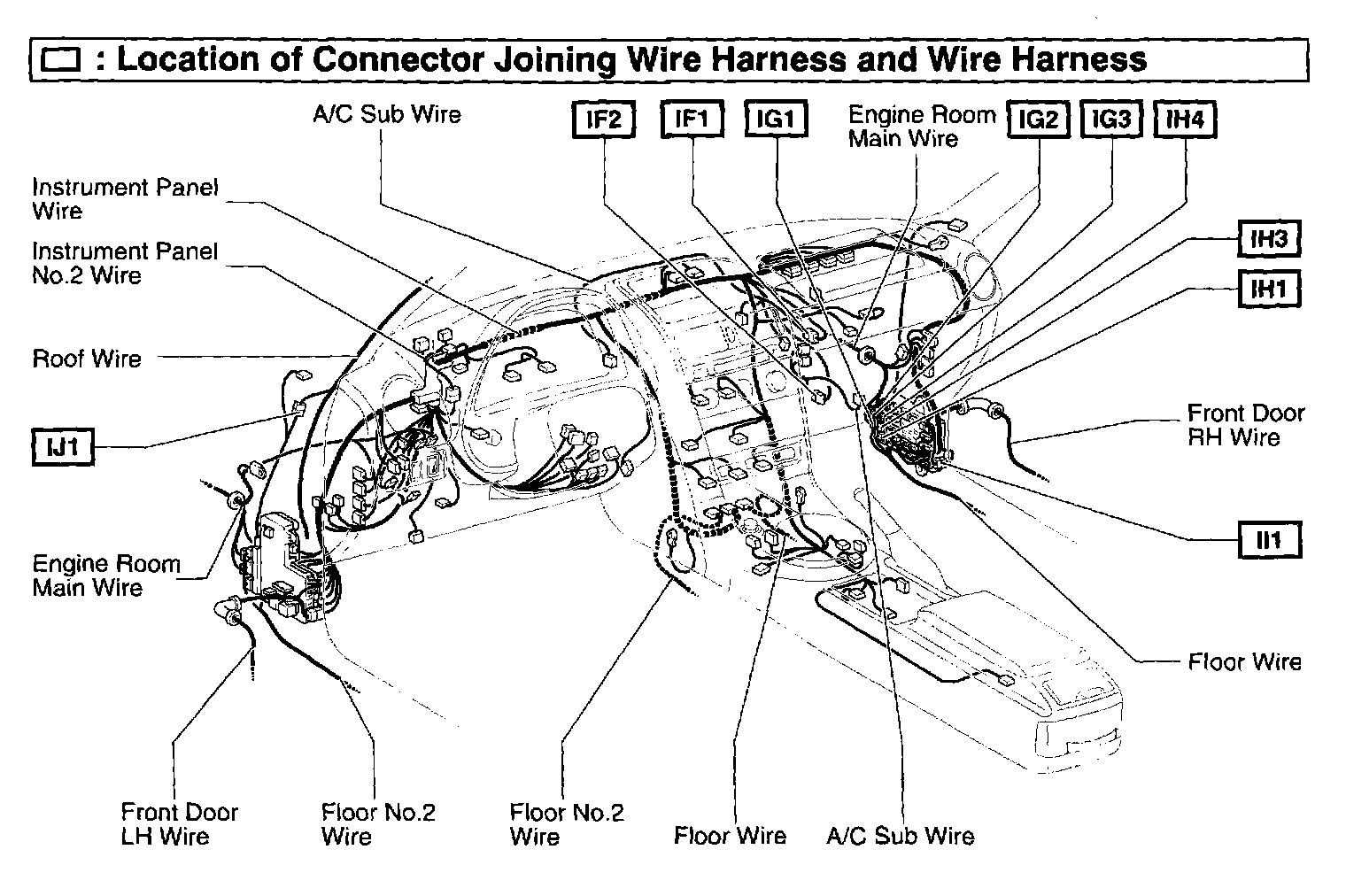

IF1 - IJ1:

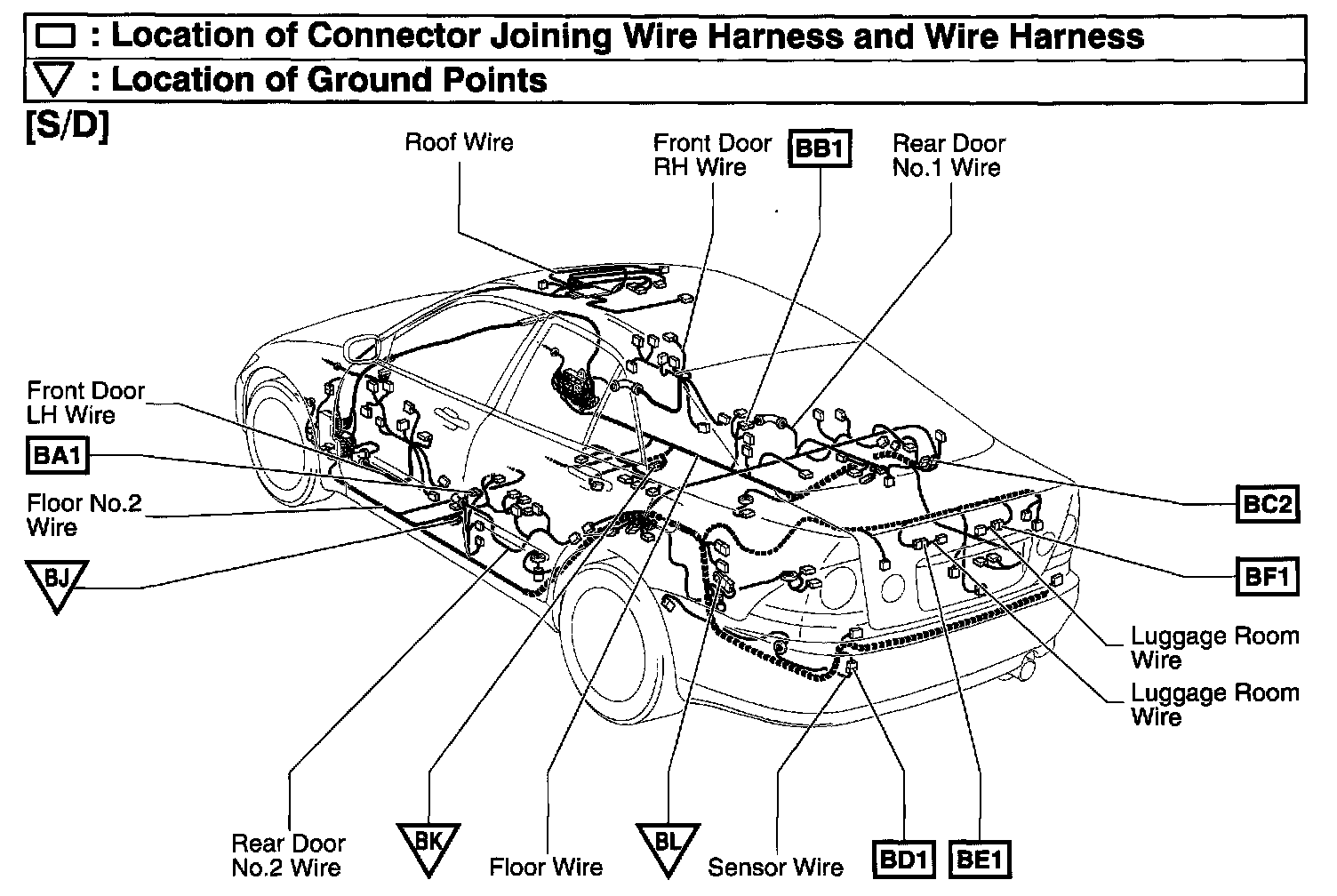

BA1 - BF1, BJ - BL:

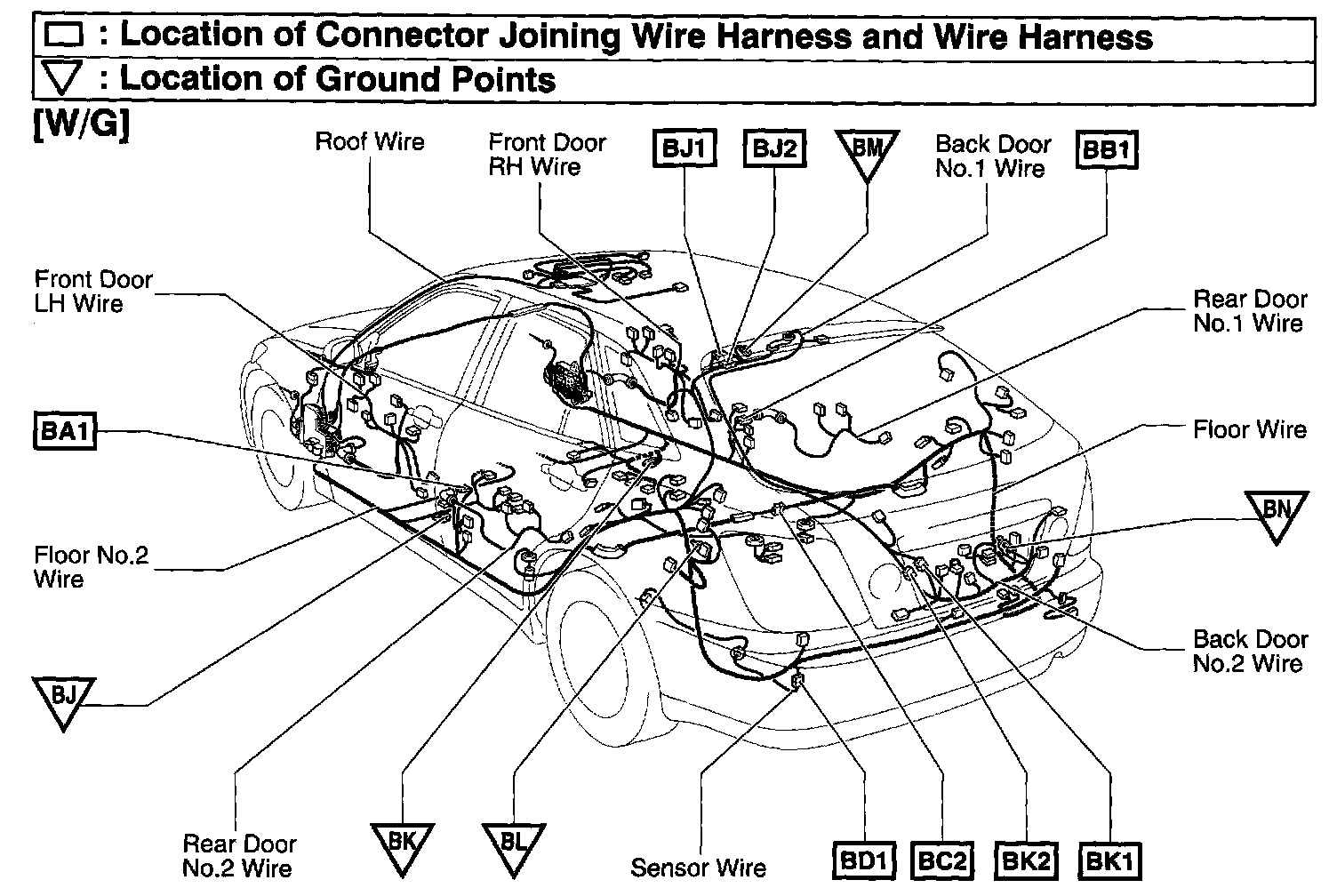

BA1 - BK2, BJ - BN:

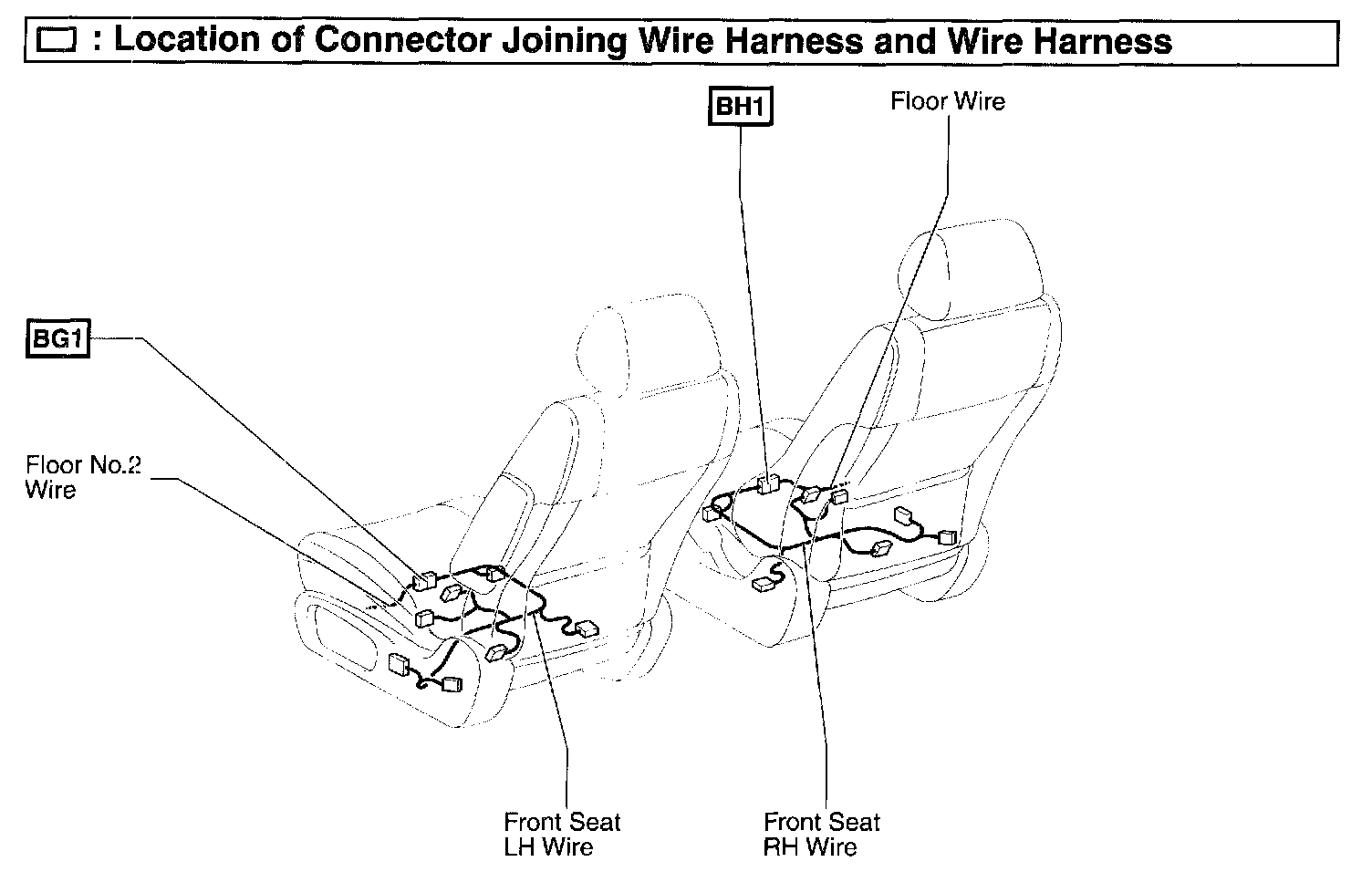

BG1 - BH1:
