B0135

DTC B0135 SHORT IN P/T SQUIB (LH) CIRCUIT

CIRCUIT DESCRIPTION

DTC Detection Condition:

The P/T squib LH circuit consists of the airbag sensor assy center and the front seat outer belt assy LH (seat belt pretensioner LH).
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
DTC B0135/73 is recorded when short is detected in the P/T squib LH circuit.

Wiring Diagram:

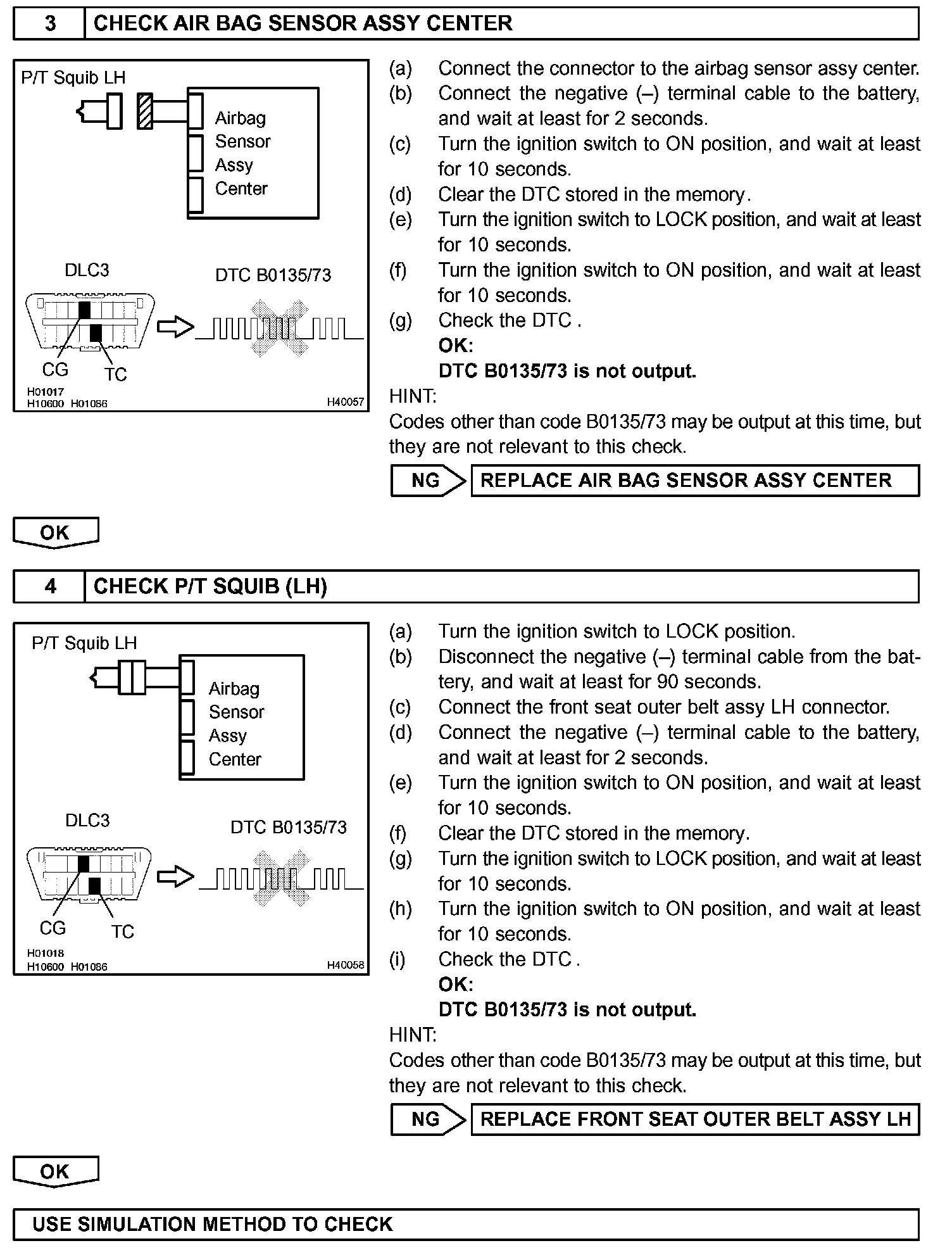

Step 1 - 2:

Step 3 - 4:

INSPECTION PROCEDURE
