C1777 - Kinetic Dynamic Suspension System

DTC C1777 STEERING SENSOR SIGNAL MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detection Condition:

The steering sensor is mounted on the steering main shaft and detects the steering wheel angle and its direction.

Wiring Diagram:

Step 1 - 2:

Step 3:

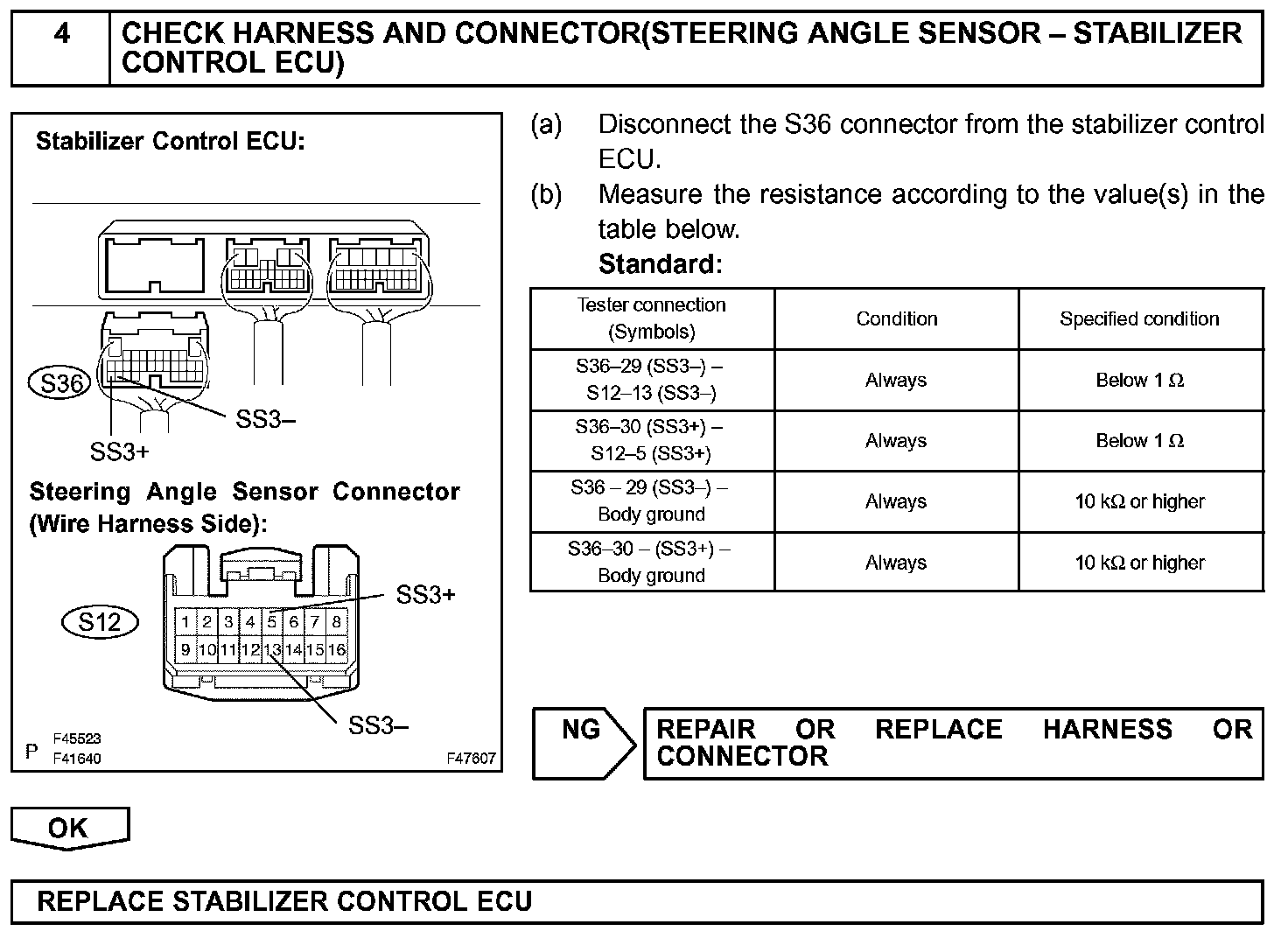

Step 4:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester, and start from step 2 when not using the hand-held tester.
