Tire Pressure Warning System

DIAGNOSTIC TROUBLE CODE CHART

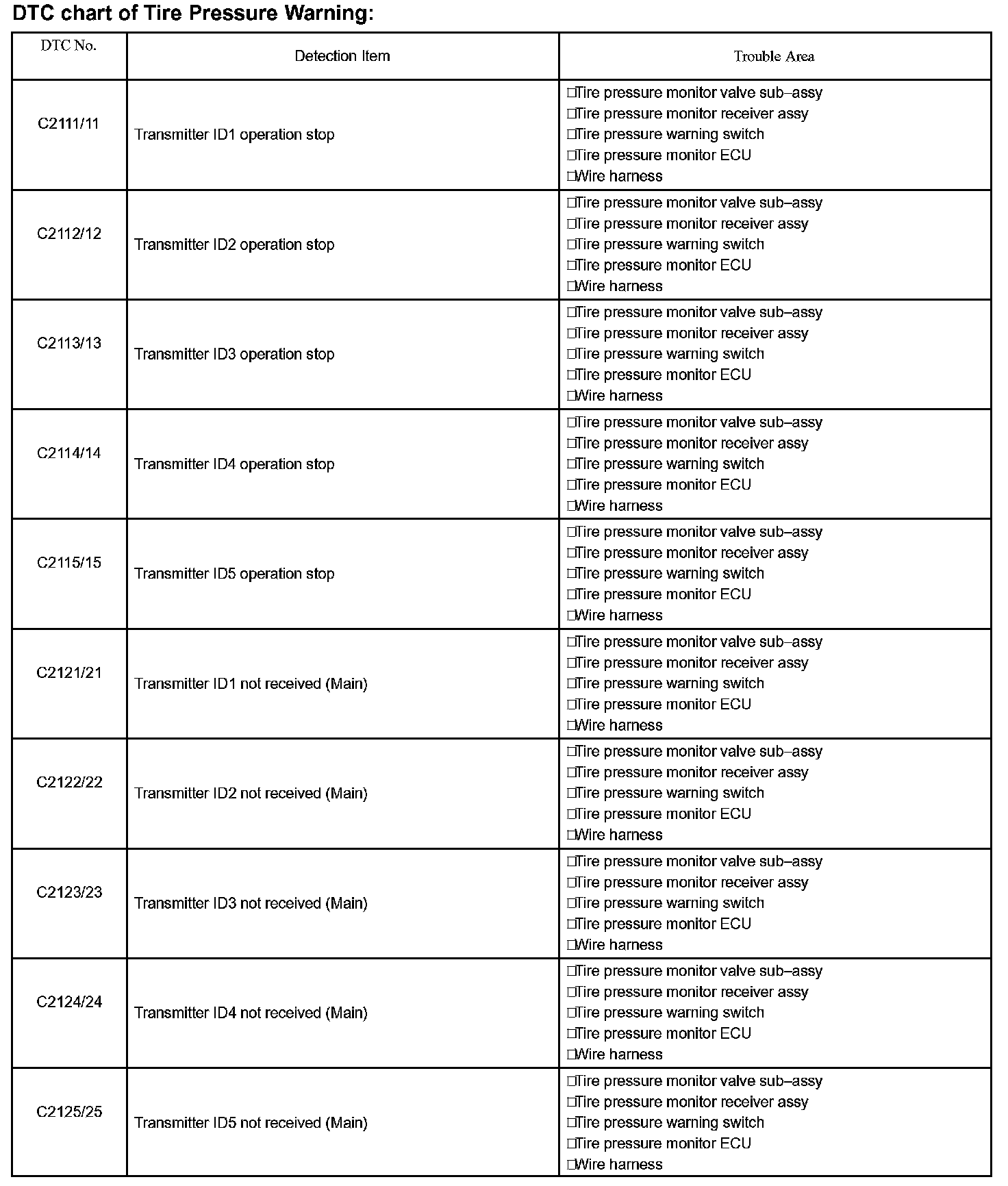

C2111/11 - C2125/25:

C2131/31 - C2171/71:

C2172/72 - C2176/76:

HINT:
- If no abnormality is found when the parts are inspected, inspect the tire pressure monitor ECU.
- If a malfunction code is displayed during the DTC check, inspect the circuit listed for that code. For details of each code, refer to respective "DTC No." in the DTC chart.

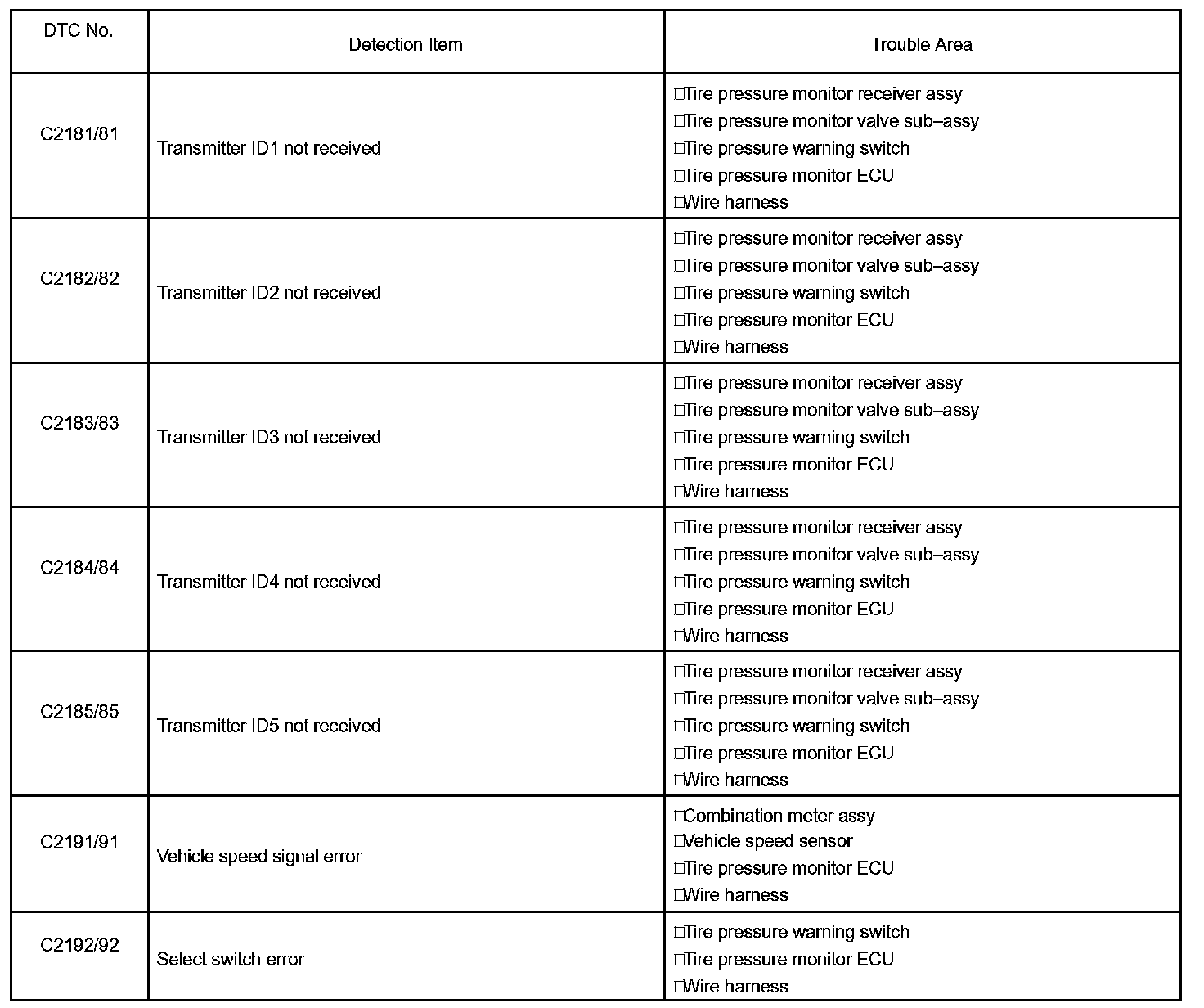

DTC of Tire Pressure Warning System test mode function:

C2181/81 - C2192/92:

If a malfunction code is displayed during the test DTC check, check the circuit listed for that code. For details of each code, refer to the respective "DTC No." in the chart.
