DTC 39

DTC 39 AIRBAG SENSOR REAR (LH) MALFUNCTION

CIRCUIT DESCRIPTION

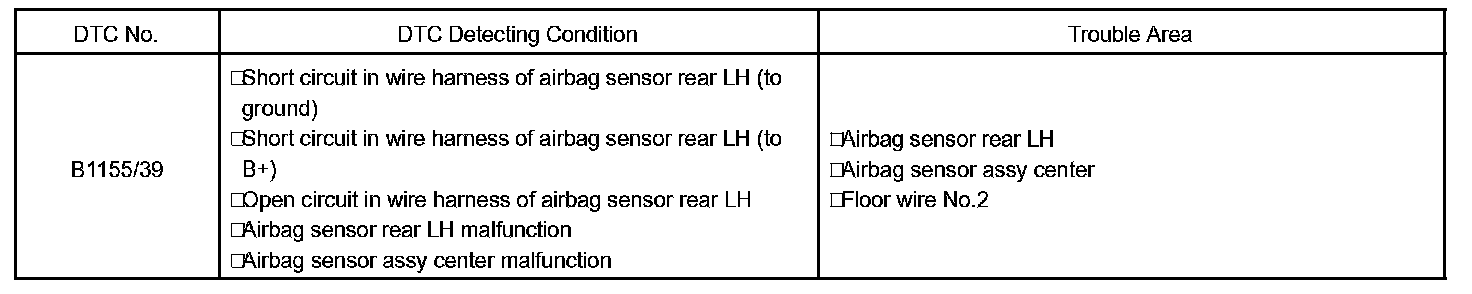

DTC Detection Condition:

The airbag sensor rear LH consists of the safing sensor, diagnosis circuit and lateral deceleration sensor, etc..

If the airbag sensor assy center receives signals from the lateral deceleration sensor, it judges whether or not the SRS must be activated, and detects diagnosis system malfunction.

DTC B1155/39 is recorded when a malfunction in the airbag sensor rear LH is detected.

Wiring Diagram:

Step 1 - 3:

Step 4 - 5:

Step 6 - 7:

Step 8:

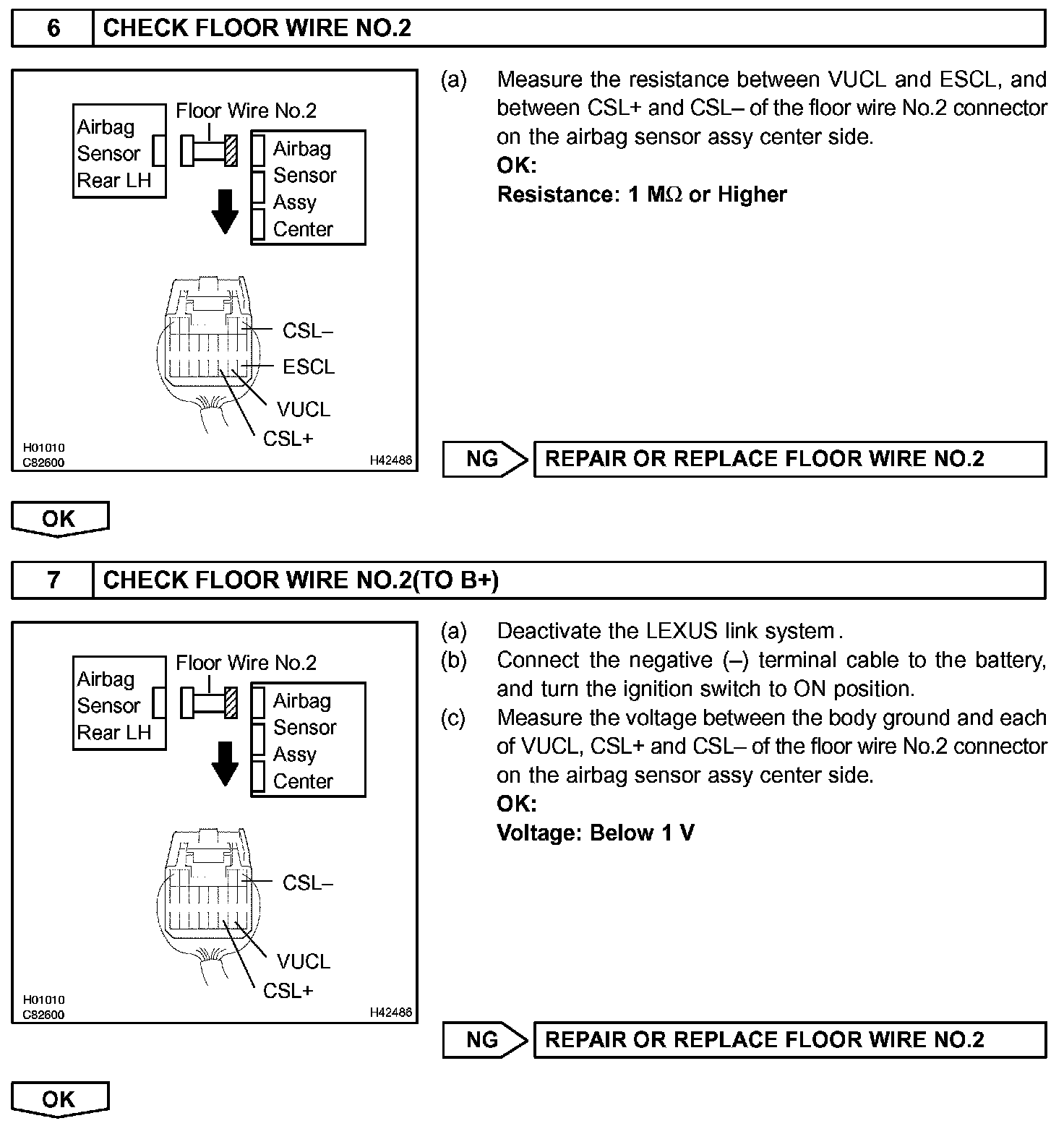

INSPECTION PROCEDURE
