DTC 44

DTC 44 OPEN IN SIDE SQUIB (RH) CIRCUIT

CIRCUIT DESCRIPTION

DTC Detection Condition:

The side squib RH circuit consists of the airbag sensor assy center and the front seat airbag assy RH. It causes the SRS to deploy when the SRS deployment conditions are satisfied. DTC B0111/44 is recorded when open is detected in the side squib RH circuit.

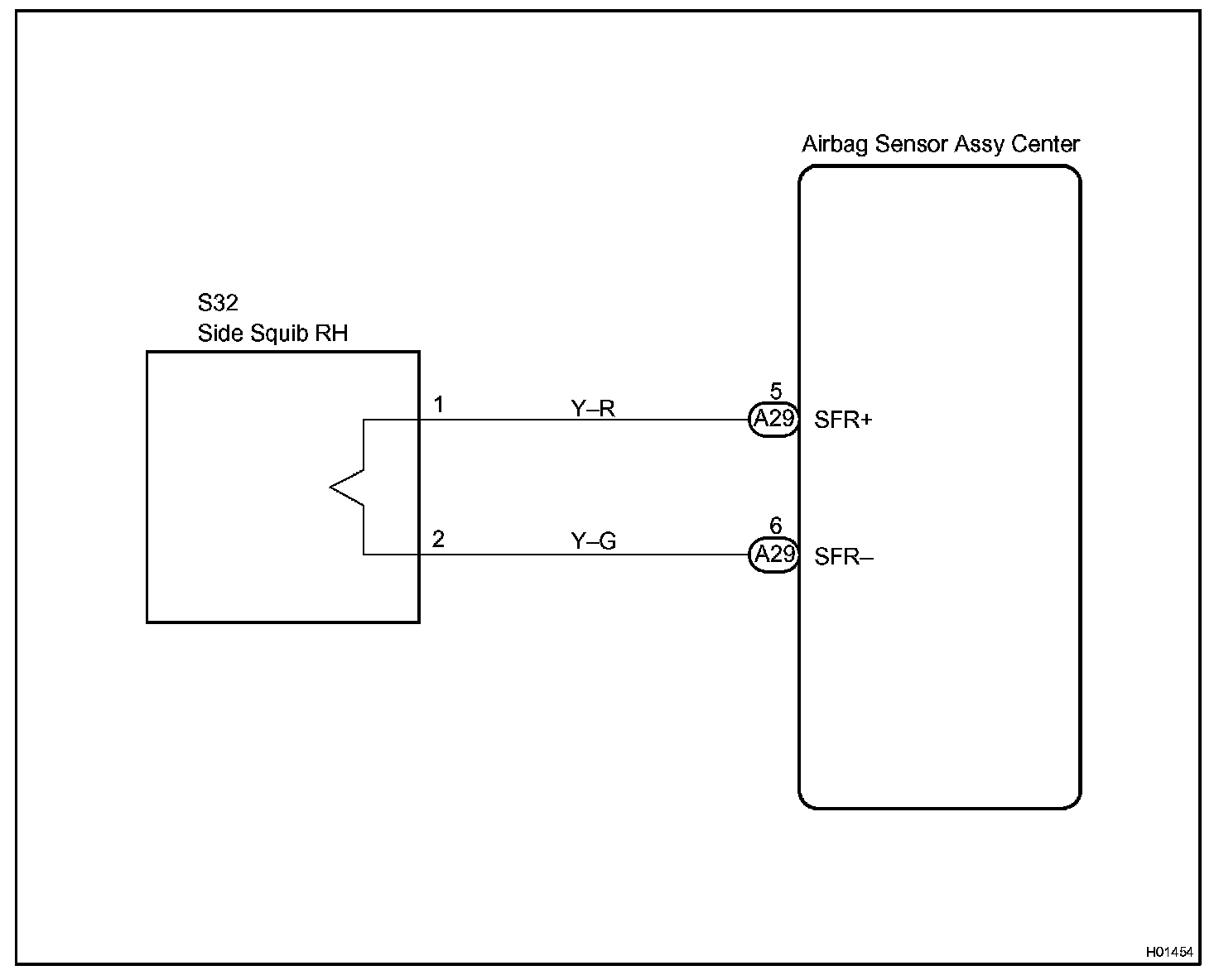

Wiring Diagram:

Step 1:

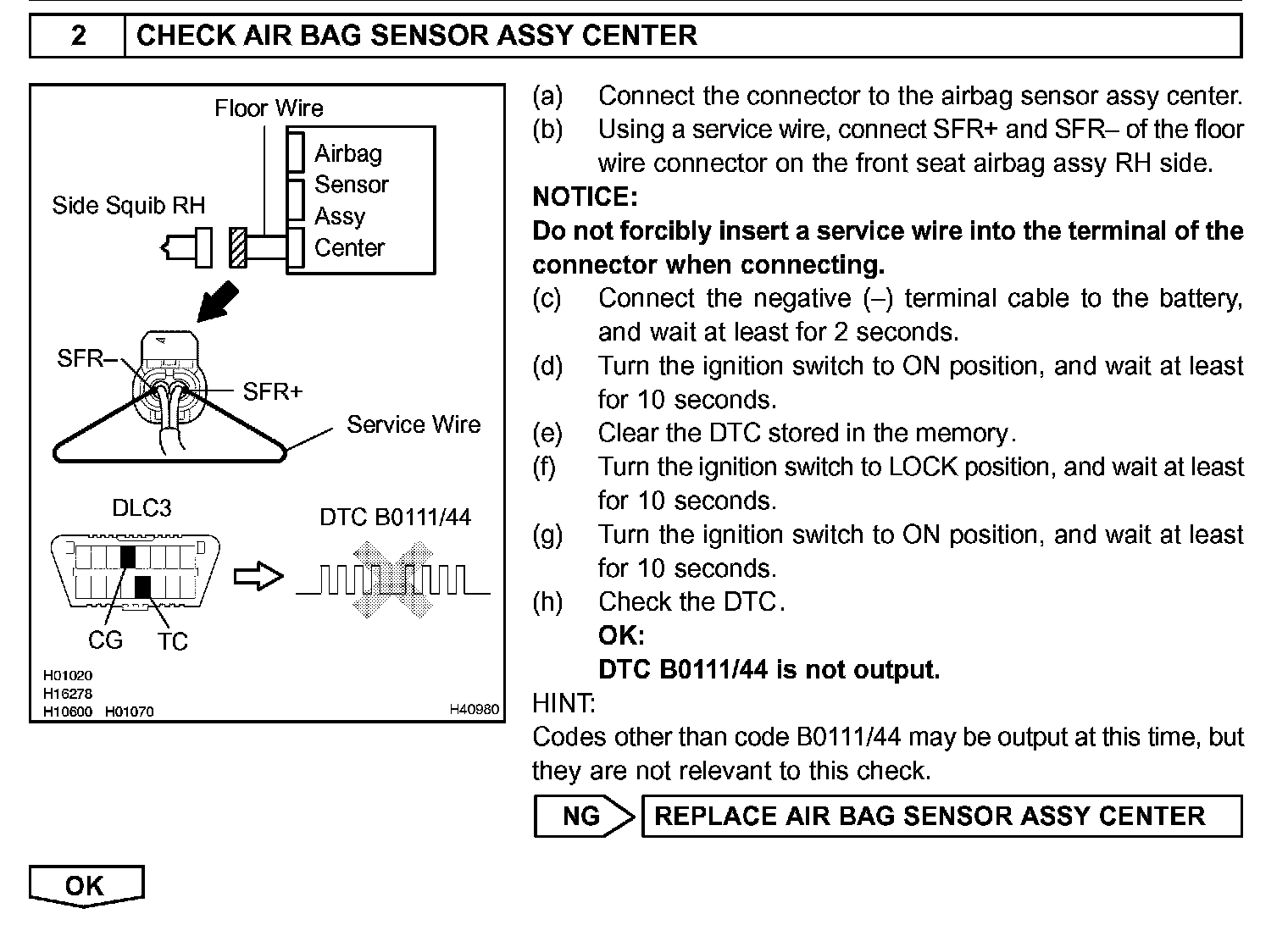

Step 2:

Step 3:

INSPECTION PROCEDURE
