DTC 17

DTC 17 REAR EVAPORATOR TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

Detection Item:

This sensor detects the rear evaporator temperature and sends the appropriate signals to the A/C amplifier.

Wiring Diagram:

Step 1 - 2:

Step 2(continued) - 4:

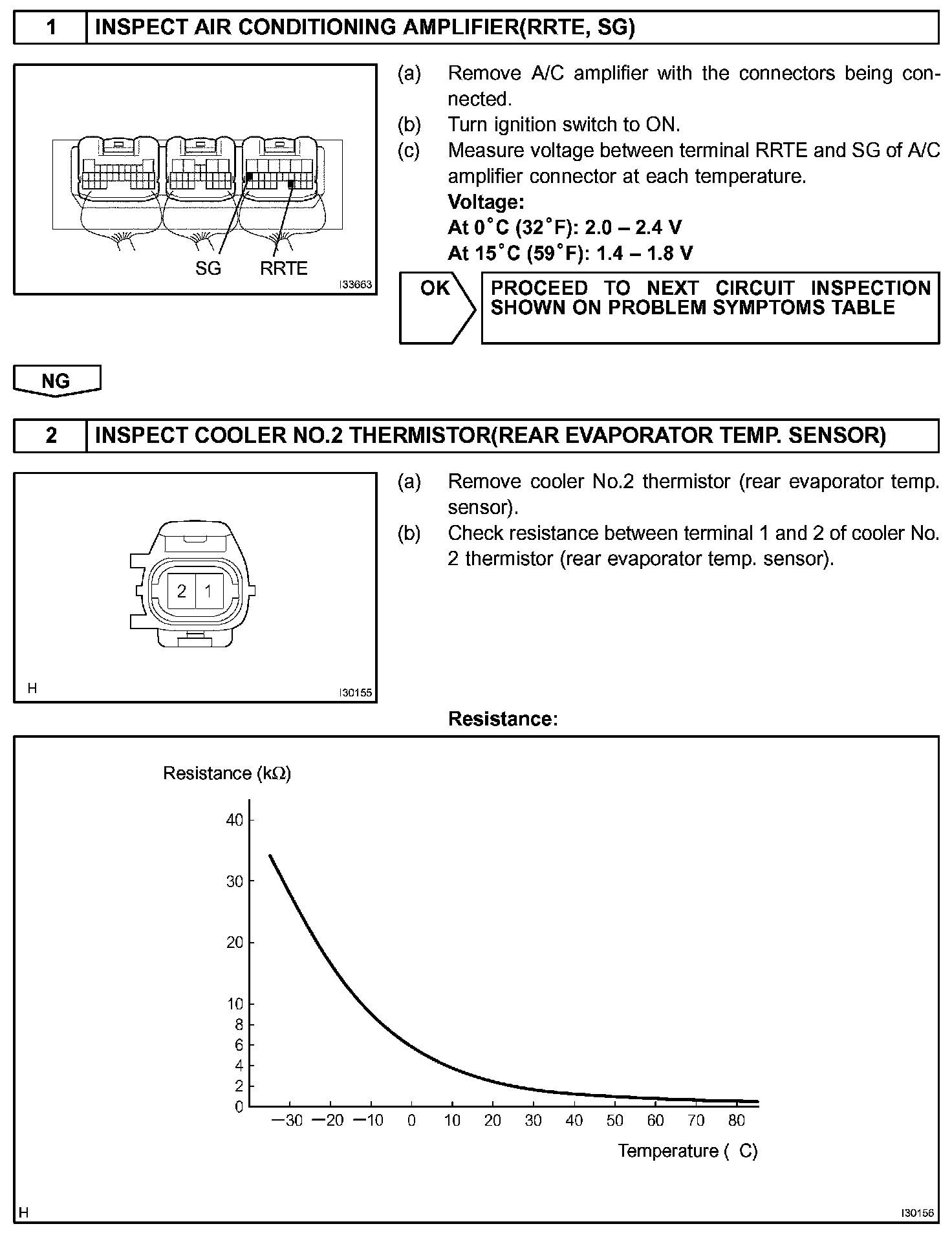

INSPECTION PROCEDURE
